Elastic Rubber Stainless Steel Castors

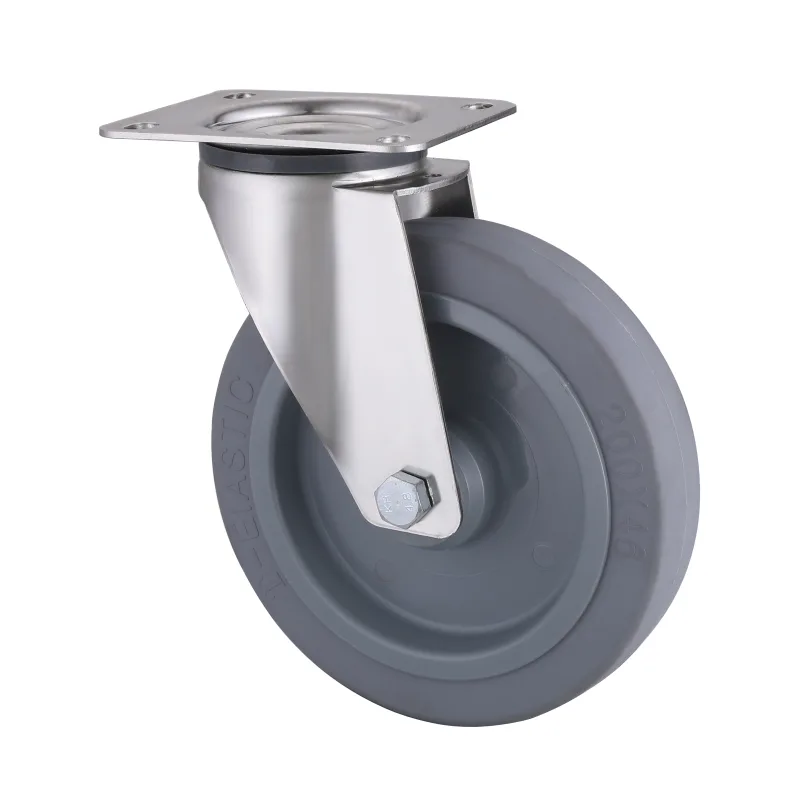

10 Series Stainless Steel Castors with ET Series Grey Elastic Rubber Wheel
10 ET Grey Elastic Rubber Stainless Castors are listed with 100-200 mm wheel diameters and 160-300 kg catalogue loads per castor. Compare the bracket configurations and exact model rows below. Check mounting dimensions and clearances against your equipment, then send the selected code, quantity and operating conditions for confirmation.
Include required quantity, wheel diameter, load per unit and operating conditions.
Product overview
Series Features and Application
Selection at a glance
10 ET Grey Elastic Rubber Stainless Castors are listed with 100-200 mm wheel diameters and 160-300 kg catalogue loads per castor. Compare the bracket configurations and exact model rows below. Check mounting dimensions and clearances against your equipment, then send the selected code, quantity and operating conditions for confirmation.
Compare actual catalogue rows
These are examples from the existing parameter tables. Values in each row belong to that code and configuration; confirm the full table for other sizes or mounting patterns.
| Configuration | Code Number | Diameter (mm) | Catalogue load per castor (kg) | Bearing |
|---|---|---|---|---|
| Swivel Castors | 10P4S100D34DETRX4012 | 100 | 160 | Roller bearing |
| Swivel Castors with Total Brakes | 10P4TB100D34DETRX4012 | 100 | 160 | Roller bearing |
| Fixed Castors | 10P4F100D34DETRX4012 | 100 | 160 | Roller bearing |
| Bolt Hole Castors | 10H4S100D34DETRX4012 | 100 | 160 | Roller bearing |
| Bolt Hole Castors with Total Brakes | 10H4TB100D34DETRX4012 | 100 | 160 | Roller bearing |
Choose for the application
Compare elastic rubber where cushioning and quieter travel are priorities. Deflection, pushing effort and floor marking depend on the actual compound and load.
For washdown duty, identify the chemicals, concentration, temperature and cleaning cycle. Confirm the bracket grade, axle, bearing and wheel compatibility together.
Prepare the enquiry
- Select the complete Code Number and confirm mounting dimensions and clearances.
- Describe load, floor, movement, temperature and cleaning conditions.
- Send quantity, destination country and any required drawing or inspection specification.
Practical checks
Pro tip: Check a loaded sample over the route's joints and thresholds.
Pro tip: Confirm tread condition after the planned parking period under load.
Compare the related product series or request a model-specific quotation.
Real configurations
Configurations and Parameter Tables
Compare model code, bearing, wheel diameter, mounting dimensions, overall height and load capacity.
Available configuration
Swivel Castors
| Code Number |  Bearing |   Wheel diameter x Width of Thread(mm) |  Plate Size(mm) |  Plate Hole Centers(mm) |  Plate Hole(mm) |  Offset(mm) |  Overall Height(mm) |  Load Capacity(kg) |
|---|---|---|---|---|---|---|---|---|
| 10P4S100D34DETRX4012 |  Roller Bearing | 100x34 | 100X80 | 80x60 | 11x9 | 36 | 125 | 160 |
| 10P4S125D40DETRX5015 | Roller Bearing | 125x40 | 100X80 | 80x60 | 11x9 | 34 | 150 | 200 |
| 10P4S160D46DETRX6020 | Roller Bearing | 160x46 | 135x110 | 105x80 | 13.5x11 | 52 | 195 | 300 |
| 10P4S200D46DETRX6020 | Roller Bearing | 200X46 | 135x110 | 105x80 | 13.5x11 | 54 | 236 | 300 |
Available configuration
Swivel Castors with Total Brakes
| Code Number | Bearing | Wheel diameter x Width of Thread(mm) | Plate Size(mm) | Plate Hole Centers(mm) | Plate Hole(mm) | Offset(mm) | Overall Height(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|---|---|
| 10P4TB100D34DETRX4012 | Roller Bearing | 100x34 | 100X80 | 80x60 | 11x9 | 30 | 125 | 160 |
| 10P4TB125D40DETRX5015 | Roller Bearing | 125x40 | 100X80 | 80x60 | 11x9 | 26.5 | 150 | 200 |
| 10P4TB160D46DETRX6020 | Roller Bearing | 160x46 | 135x110 | 105x80 | 13.5x11 | 52 | 195 | 300 |
| 10P4TB200D46DETRX6020 | Roller Bearing | 200X46 | 135x110 | 105x80 | 13.5x11 | 54 | 236 | 300 |
Available configuration
Fixed Castors
| Code Number | Bearing | Wheel diameter x Width of Thread(mm) | Plate Size(mm) | Plate Hole Centers(mm) | Plate Hole(mm) | Offset(mm) | Overall Height(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|---|---|
| 10P4F100D34DETRX4012 | Roller Bearing | 100x34 | 100X80 | 80x60 | 11x9 | 125 | 160 | |
| 10P4F125D40DETRX5015 | Roller Bearing | 125x40 | 100X80 | 80x60 | 11x9 | 150 | 200 | |
| 10P4F160D46DETRX6020 | Roller Bearing | 160x46 | 135x114 | 105x80 | 13.5x11 | 195 | 300 | |
| 10P4F200D46DETRX6020 | Roller Bearing | 200X46 | 135x114 | 105x80 | 13.5x11 | 236 | 300 |
Available configuration
Bolt Hole Castors
| Code Number | Bearing | Wheel diameter x Width of Thread(mm) | Offset(mm) | Plate Hole(mm) | Overall Height(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|
| 10H4S100D34DETRX4012 | Roller Bearing | 100x34 | 36 | ф13 | 124 | 160 |
| 10H4S125D40DETRX5015 | Roller Bearing | 125x40 | 34 | ф13 | 149 | 200 |
| 10H4S160D46DETRX6020 | Roller Bearing | 160x46 | 52 | ф16.8 | 190 | 300 |
| 10H4S200D46DETRX6020 | Roller Bearing | 200X46 | 54 | ф16.8 | 231 | 300 |
Available configuration
Bolt Hole Castors with Total Brakes
| Code Number | Bearing | Wheel diameter x Width of Thread(mm) | Offset(mm) | Plate Hole(mm) | Overall Height(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|
| 10H4TB100D34DETRX4012 | Roller Bearing | 100x34 | 32.5 | ф13 | 124 | 160 |
| 10H4TB125D40DETRX5015 | Roller Bearing | 125x40 | 26.5 | ф13 | 149 | 200 |
| 10H4TB160D46DETRX6020 | Roller Bearing | 160x46 | 52 | ф16.8 | 190 | 300 |
| 10H4TB200D46DETRX6020 | Roller Bearing | 200X46 | 54 | ф16.8 | 231 | 300 |
Before production
Specification Confirmation and Quality Review
Model codes and dimensional requirements are confirmed before an order. Product inspection can be arranged according to the agreed castor series and application.
