Elastic Rubber Stainless Steel Castors

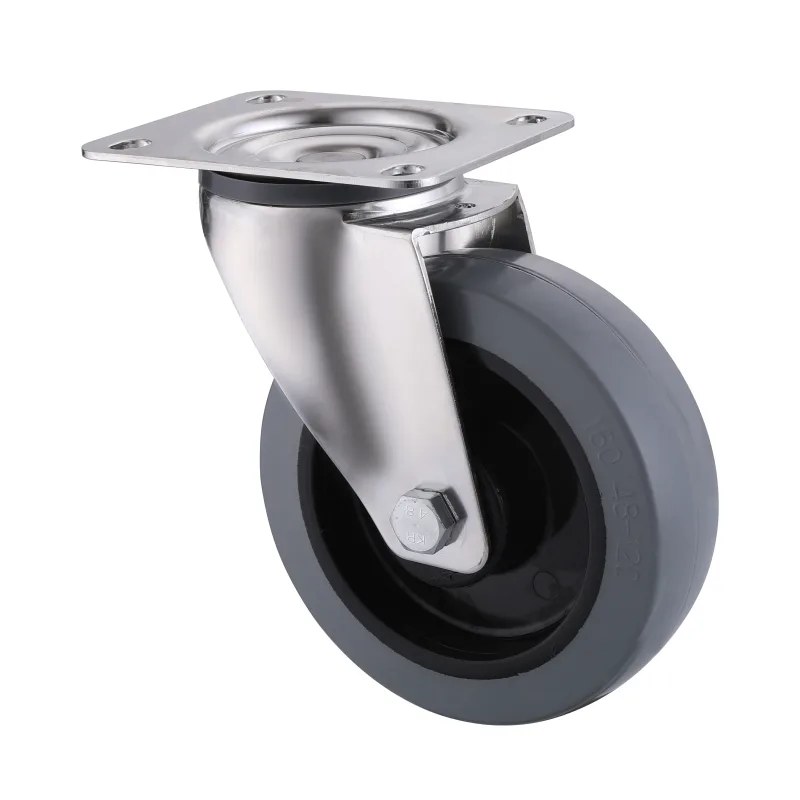

10 Series Stainless Steel Castors with EP Series Grey Elastic Rubber Wheel
Compare Swivel Castors, Swivel Castors with Total Brakes, Fixed Castors, Bolt Hole Castors, and Bolt Hole Castors with Total Brakes for 10 Series EP Grey Elastic Rubber Stainless Steel Castors, including 130-300 kg rated.
Include required quantity, wheel diameter, load per castor and operating conditions.
Product overview
Series Features and Application
10 Series EP Grey Elastic Rubber Stainless Steel Castors Specifications
Compare Swivel Castors, Swivel Castors with Total Brakes, Fixed Castors, Bolt Hole Castors, and Bolt Hole Castors with Total Brakes for 10 Series EP Grey Elastic Rubber Stainless Steel Castors, including 130-300 kg rated loads. Review model codes and request a factory quotation.
Selection information
Confirm the required quantity, load per castor, wheel diameter, mounting, floor, speed and operating environment before ordering. Use the specification tables and model codes when requesting a quotation.
Real configurations
Bracket Types and Parameter Tables
Compare model code, bearing, wheel diameter, mounting dimensions, overall height and load capacity.
Available configuration
Swivel Castors
| Code Number |  Bearing |  Wheel Diameter(mm) |  Plate Size(mm) |  Plate Hole Centers(mm) |  Plate Hole(mm) |  Offset(mm) |  Overall Height(mm) |  Load Capacity(kg) |
|---|---|---|---|---|---|---|---|---|
| 10P4S80D35CEPRX4012 |  Roller Bearing | 80X35 | 100X80 | 80x60 | 11x9 | 36 | 108 | 140 |
| 10P4S100D36CEPRX4012 | Roller Bearing | 100x36 | 100X80 | 80x60 | 11x9 | 34 | 125 | 180 |
| 10P4S125D36CEPRX5015 | Roller Bearing | 125x36 | 100X80 | 80x60 | 11x9 | 32.5 | 150 | 200 |
| 10P4S160D48CEPRX6020 | Roller Bearing | 160x48 | 135x110 | 105x80 | 13.5x11 | 52 | 195 | 300 |
| 10P4S200D48CEPRX6020 | Roller Bearing | 200X48 | 135x110 | 105x80 | 13.5x11 | 54 | 236 | 300 |
Available configuration
Swivel Castors with Total Brakes
| Code Number | Bearing | Wheel Diameter(mm) | Plate Size(mm) | Plate Hole Centers(mm) | Plate Hole(mm) | Offset(mm) | Overall Height(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|---|---|
| 10P4TB80D35CEPRX4012 | Roller Bearing | 80X35 | 100X80 | 80x60 | 11x9 | 36.5 | 108 | 130 |
| 10P4TB100D36CEPRX4012 | Roller Bearing | 100x36 | 100X80 | 80x60 | 11x9 | 34 | 125 | 160 |
| 10P4TB125D36CEPRX5015 | Roller Bearing | 125x36 | 100X80 | 80x60 | 11x9 | 32.5 | 150 | 200 |
| 10P4TB160D48CEPRX6020 | Roller Bearing | 160x48 | 135x110 | 105x80 | 13.5x11 | 52 | 195 | 300 |
| 10P4TB200D48CEPRX6020 | Roller Bearing | 200X48 | 135x110 | 105x80 | 13.5x11 | 54 | 236 | 300 |
Available configuration
Fixed Castors
| Code Number | Bearing | Wheel Diameter(mm) | Plate Size(mm) | Plate Hole Centers(mm) | Plate Hole(mm) | Offset(mm) | Overall Height(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|---|---|
| 10P4F80D35CEPRX4012 | Roller Bearing | 80X35 | 100X80 | 80x60 | 11x9 | 108 | 130 | |
| 10P4F100D36CEPRX4012 | Roller Bearing | 100x36 | 100X80 | 80x60 | 11x9 | 125 | 160 | |
| 10P4F125D36CEPRX5015 | Roller Bearing | 125x36 | 100X80 | 80x60 | 11x9 | 150 | 200 | |
| 10P4F160D48CEPRX6020 | Roller Bearing | 160x48 | 135x114 | 105x80 | 13.5x11 | 195 | 300 | |
| 10P4F200D48CEPRX6020 | Roller Bearing | 200X48 | 135x114 | 105x80 | 13.5x11 | 236 | 300 |
Available configuration
Bolt Hole Castors
| Code Number | Bearing | Wheel Diameter(mm) | Offset(mm) | Plate Hole(mm) | Overall Height(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|
| 10H4S80D35CEPRX4012 | Roller Bearing | 80X35 | 36 | ф13 | 107 | 140 |
| 10H4S100D36CEPRX4012 | Roller Bearing | 100X36 | 34 | ф13 | 125 | 180 |
| 10H4S125D36CEPRX5015 | Roller Bearing | 125X36 | 32.5 | ф13 | 149 | 200 |
| 10H4S160D48CEPRX6020 | Roller Bearing | 160X48 | 52 | ф16.8 | 190 | 300 |
| 10H4S200D48CEPRX6020 | Roller Bearing | 200X48 | 54 | ф16.8 | 231 | 300 |
Available configuration
Bolt Hole Castors with Total Brakes
| Code Number | Bearing | Wheel Diameter(mm) | Offset(mm) | Plate Hole(mm) | Overall Height(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|
| 10H4TB80D35CEPRX4012 | Roller Bearing | 80X35 | 36.5 | ф13 | 107 | 140 |
| 10H4TB100D36CEPRX4012 | Roller Bearing | 100X36 | 30 | ф13 | 125 | 180 |
| 10H4TB125D36CEPRX5015 | Roller Bearing | 125X36 | 26.5 | ф13 | 149 | 200 |
| 10H4TB160D48CEPRX6020 | Roller Bearing | 160X48 | 52 | ф16.8 | 190 | 300 |
| 10H4TB200D48CEPRX6020 | Roller Bearing | 200X48 | 54 | ф16.8 | 231 | 300 |
Before production
Specification Confirmation and Quality Review
Model codes and dimensional requirements are confirmed before an order. Product inspection can be arranged according to the agreed castor series and application.
