80 mm wheel50 kg / wheel
80D30JGMRX4012
Bearing Type
Roller Bearing
Wheel Ø- 80 mm
Wheel Width- 30 mm
Hub Length- 40 mm
Hub Bore- 12 mm
INDUSTRIAL WHEELS · SOLID RUBBER
GM Series
Grey Solid Rubber Wheels
GM Grey Solid Rubber Wheels. Compare sizes, hub fit, bearings and load ratings. Request a model quote from Taishan.

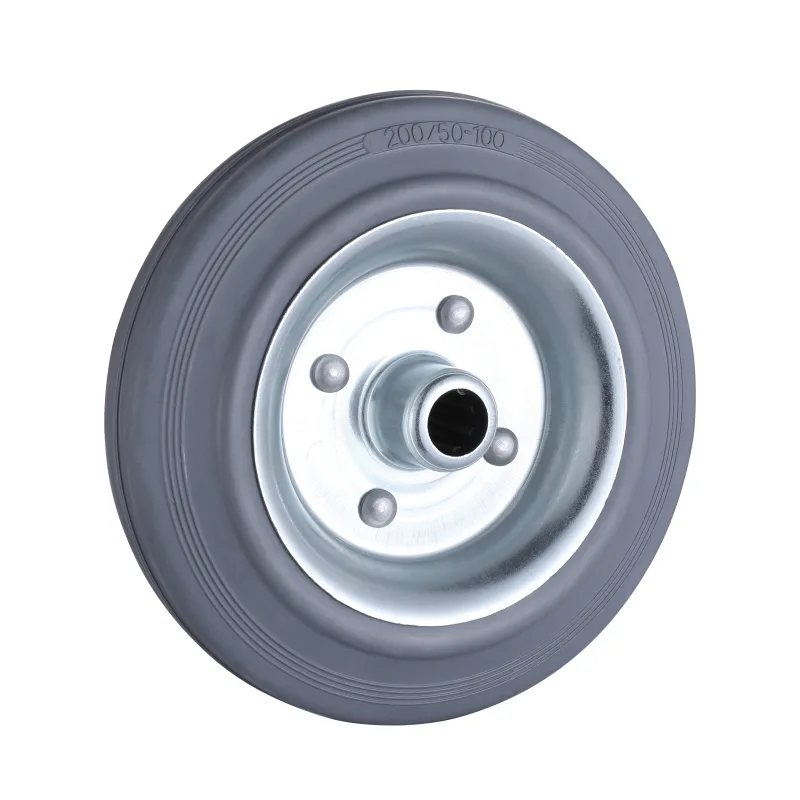

Series reference image. Sizes and bearing details vary by model.
SERIES RANGE
- Wheel diameter
- 100–200 mm
- Load per wheel
- 160–400 kg
- Bearing options
- 3
Wheel-only product. Check the axle fit, installation space and operating requirements before selection.
01 / THE WHEEL
Wheel Construction.
Review the wheel construction together with its model dimensions, bearing configuration and operating conditions.
Explore Solid Rubber Wheels- Tread material
- Solid rubber
- Colour
- Grey
- Product format
- Wheel only
Need wheel-centre material, hardness or operating limits? Request the model-specific information with your enquiry.
03 / COMPARE COMPLETE MODELS
Model Codes & Specifications.
Select a model code to reference it in your enquiry. All dimensions are in mm; load is kg per wheel.
01
11 modelsRoller Bearing
Scroll the table to compare all dimensions
| Code Number | Bearing Type | Wheel Ø mm | Wheel Width mm | Hub Length mm | Hub Bore mm |  Load Capacity kg / wheel |
|---|---|---|---|---|---|---|
| Roller Bearing | 80 | 30 | 40 | 12 | 50 | |
| Roller Bearing | 100 | 30 | 40 | 12 | 75 | |
| Roller Bearing | 125 | 37.5 | 50 | 15 | 100 | |
| Roller Bearing | 150 | 40 | 60 | 20 | 135 | |
| Roller Bearing | 160 | 40 | 60 | 20 | 135 | |
| Roller Bearing | 180 | 50 | 60 | 20 | 205 | |
| Roller Bearing | 200 | 50 | 60 | 20 | 205 | |
| Roller Bearing | 250 | 60 | 75 | 25 | 295 | |
| Roller Bearing | 300 | 60 | 75 | 25 | 300 | |
| Roller Bearing | 350 | 70 | 80 | 25 | 300 | |
| Roller Bearing | 400 | 75 | 90 | 25 | 475 |
100 mm wheel75 kg / wheel
100D30JGMRX4012
- Bearing Type
- Roller Bearing
- Wheel Ø
- 100 mm
- Wheel Width
- 30 mm
- Hub Length
- 40 mm
- Hub Bore
- 12 mm
125 mm wheel100 kg / wheel
125D37.5JGMRX5015
- Bearing Type
- Roller Bearing
- Wheel Ø
- 125 mm
- Wheel Width
- 37.5 mm
- Hub Length
- 50 mm
- Hub Bore
- 15 mm
150 mm wheel135 kg / wheel
150D40JGMRX6020
- Bearing Type
- Roller Bearing
- Wheel Ø
- 150 mm
- Wheel Width
- 40 mm
- Hub Length
- 60 mm
- Hub Bore
- 20 mm
160 mm wheel135 kg / wheel
160D40JGMRX6020
- Bearing Type
- Roller Bearing
- Wheel Ø
- 160 mm
- Wheel Width
- 40 mm
- Hub Length
- 60 mm
- Hub Bore
- 20 mm
180 mm wheel205 kg / wheel
180D50JGMRX6020
- Bearing Type
- Roller Bearing
- Wheel Ø
- 180 mm
- Wheel Width
- 50 mm
- Hub Length
- 60 mm
- Hub Bore
- 20 mm
200 mm wheel205 kg / wheel
200D50JGMRX6020
- Bearing Type
- Roller Bearing
- Wheel Ø
- 200 mm
- Wheel Width
- 50 mm
- Hub Length
- 60 mm
- Hub Bore
- 20 mm
250 mm wheel295 kg / wheel
250D60JGMRX7525
- Bearing Type
- Roller Bearing
- Wheel Ø
- 250 mm
- Wheel Width
- 60 mm
- Hub Length
- 75 mm
- Hub Bore
- 25 mm
300 mm wheel300 kg / wheel
300D60JGMRX7525
- Bearing Type
- Roller Bearing
- Wheel Ø
- 300 mm
- Wheel Width
- 60 mm
- Hub Length
- 75 mm
- Hub Bore
- 25 mm
350 mm wheel300 kg / wheel
350D70JGMRX8025
- Bearing Type
- Roller Bearing
- Wheel Ø
- 350 mm
- Wheel Width
- 70 mm
- Hub Length
- 80 mm
- Hub Bore
- 25 mm
400 mm wheel475 kg / wheel
400D75JGMRX9025
- Bearing Type
- Roller Bearing
- Wheel Ø
- 400 mm
- Wheel Width
- 75 mm
- Hub Length
- 90 mm
- Hub Bore
- 25 mm
02
1 modelTwo Ball Bearings
Scroll the table to compare all dimensions
| Code Number | Bearing Type | Wheel Ø mm | Wheel Width mm | Hub Length mm | Hub Bore mm | Load Capacity kg / wheel |
|---|---|---|---|---|---|---|
| Two Ball Bearings | 350 | 70 | 75 | 25 | 300 |
350 mm wheel300 kg / wheel
350D70JGMDX7525
- Bearing Type
- Two Ball Bearings
- Wheel Ø
- 350 mm
- Wheel Width
- 70 mm
- Hub Length
- 75 mm
- Hub Bore
- 25 mm
8 models
Hub Bore is the catalogue field name. Confirm the axle fit or bearing-seat dimension on the model drawing before ordering.
04 / CHECK THE FIT
Check the Fit Before Ordering.
Compare the wheel diameter, width, hub length, bore and bearing configuration with your existing assembly or equipment drawing.
Select a model to see its dimensions
- DWheel Diameter
- —
- WWheel Width
- —
- LHub Length
- —
- dHub Bore
- —
05 / REVIEW THE WORKING CONDITIONS
Application & Operating Conditions.
Model suitability should be reviewed against the actual application. Material alone does not establish the operating limit.
01
Load & movement
Share the load per wheel, or equipment weight and wheel layout. Tell us whether the wheel is manually pushed, towed, driven or used for guidance.
02
Floor & installation
Include floor joints, slopes and obstacles, along with available axle and installation space.
03
Environment & requirements
Describe temperature, exposure time, cleaning and contact materials. Add noise, floor-marking or electrical requirements where relevant.
06 / TECHNICAL SUPPORT
Technical Documents & Specification Review.
Use the listed dimensions and model code as the starting point for your enquiry. Contact us for a drawing, material information or an agreed inspection requirement.
Quality Assurance07 / CONTINUE COMPARING
Related Wheel Series.
Compare other elastic rubber series. Check each series’ own dimensions and bearing configurations.
08 / SEND YOUR REQUIREMENTS
Request a Quote for This Wheel Series.
Send your selected model codes and quantities, or describe the dimensions and operating conditions you need.
YOUR SERIESGM Series Grey Solid Rubber Wheels
No model selected. You can still request selection help.
Request: model drawing and specification review.
Send photographs or drawings by email.
