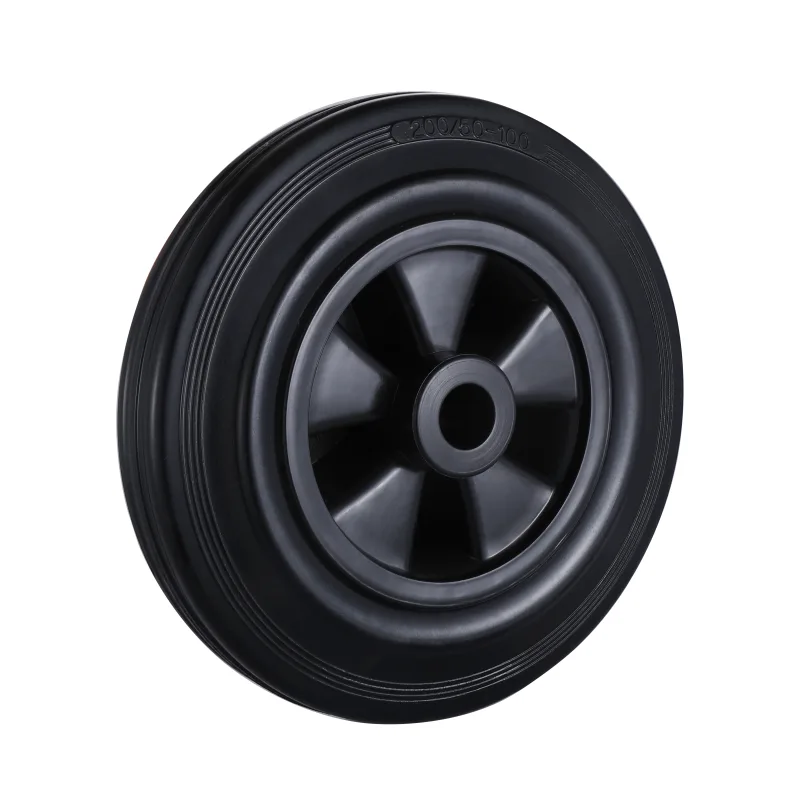

BP Series Black Solid Rubber Wheels
BP Black Solid Rubber Wheels are listed with 80-300 mm wheel diameters and 50-295 kg catalogue loads per wheel. Compare the wheel-bearing options and exact model rows below. Check axle fit and hub dimensions against your equipment, then send the selected code, quantity and operating conditions for confirmation.
Include required quantity, wheel diameter, load per unit and operating conditions.
Product overview
Series Features and Application
Selection at a glance
BP Black Solid Rubber Wheels are listed with 80-300 mm wheel diameters and 50-295 kg catalogue loads per wheel. Compare the wheel-bearing options and exact model rows below. Check axle fit and hub dimensions against your equipment, then send the selected code, quantity and operating conditions for confirmation.
Compare actual catalogue rows
These are examples from the existing parameter tables. Values in each row belong to that code and configuration; confirm the full table for other sizes or mounting patterns.
| Configuration | Code Number | Diameter (mm) | Catalogue load per wheel (kg) | Bearing |
|---|---|---|---|---|
| Plain Bore Wheels | 80C30CBPPX4012 | 80 | 50 | Plain bore |
| Roller Bearing Wheels | 80C30CBPRX4012 | 80 | 50 | Roller bearing |
| Two Ball Bearing Wheels | 180C50CBPdX6020 | 180 | 205 | Two ball bearings |
Choose for the application
Compare solid rubber for general trolley duties where resilient floor contact is useful. Rubber compounds differ in hardness, marking and environmental compatibility.
Prepare the enquiry
- Select the complete Code Number and confirm axle fit and hub dimensions.
- Describe load, floor, movement, temperature and cleaning conditions.
- Send quantity, destination country and any required drawing or inspection specification.
Practical checks
Pro tip: Test the actual tread on the finished floor, including turning.
Pro tip: Specify oils, cleaning agents and outdoor exposure before selection.
Compare the related product series or request a model-specific quotation.
Real configurations
Configurations and Parameter Tables
Compare model code, bearing, wheel diameter, mounting dimensions, overall height and load capacity.
Available configuration
Plain Bore Wheels
| Code Number |  Bearing |  Wheel Diameter(mm) |  Wheel Width(mm) |  Hub Length(mm) |  Hub Bore(mm) |  Load Capacity(kg) |
|---|---|---|---|---|---|---|
| 80C30CBPPX4012 |  Plain Bore | 80 | 30 | 40 | 12 | 50 |
| 100C30CBPPX4012 | Plain Bore | 100 | 30 | 40 | 12 | 75 |
| 125C37.5CBPPX5015 | Plain Bore | 125 | 37.5 | 50 | 15 | 100 |
| 140C37.5CBPPX5015 | Plain Bore | 140 | 37.5 | 50 | 15 | 115 |
| 150C37.5CBPPX5015 | Plain Bore | 150 | 37.5 | 50 | 15 | 115 |
| 160C40CBPPX6020 | Plain Bore | 160 | 40 | 60 | 20 | 135 |
| 180C50CBPPX6020 | Plain Bore | 180 | 50 | 60 | 20 | 205 |
| 200C50CBPPX6020 | Plain Bore | 200 | 50 | 60 | 20 | 205 |
| 250C50CBPPX7525 | Plain Bore | 250 | 50 | 75 | 25 | 220 |
| 250C60CBPPX7525 | Plain Bore | 250 | 60 | 75 | 25 | 295 |
| 300C50CBPPX7525 | Plain Bore | 300 | 50 | 75 | 25 | 250 |
Available configuration
Roller Bearing Wheels
| Code Number | Bearing | Wheel Diameter(mm) | Wheel Width(mm) | Hub Length(mm) | Hub Bore(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|
| 80C30CBPRX4012 |  Roller Bearing | 80 | 30 | 40 | 12 | 50 |
| 100C30CBPRX4012 | Roller Bearing | 100 | 30 | 40 | 12 | 75 |
| 125C37.5CBPRX5015 | Roller Bearing | 125 | 37.5 | 50 | 15 | 100 |
| 140C37.5CBPRX5015 | Roller Bearing | 140 | 37.5 | 50 | 15 | 115 |
| 150C37.5CBPRX5015 | Roller Bearing | 150 | 37.5 | 50 | 15 | 115 |
| 160C40CBPRX6020 | Roller Bearing | 160 | 40 | 60 | 20 | 135 |
| 180C50CBPRX6020 | Roller Bearing | 180 | 50 | 60 | 20 | 205 |
| 200C50CBPRX6020 | Roller Bearing | 200 | 50 | 60 | 20 | 205 |
| 250C50CBPRX7525 | Roller Bearing | 250 | 50 | 75 | 25 | 220 |
| 250C60CBPRX7525 | Roller Bearing | 250 | 60 | 75 | 25 | 295 |
| 300C50CBPRX7525 | Roller Bearing | 300 | 50 | 75 | 25 | 250 |
Available configuration
Two Ball Bearing Wheels
| Code Number | Bearing | Wheel Diameter(mm) | Wheel Width(mm) | Hub Length(mm) | Hub Bore(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|
| 180C50CBPdX6020 |  Two Ball Bearing | 180 | 50 | 60 | 20 | 205 |
| 200C50CBPdX6020 | Two Ball Bearing | 200 | 50 | 60 | 20 | 205 |
| 250C60CBPDX7525 | Two Ball Bearing | 250 | 60 | 75 | 25 | 295 |
| 300C60CBPPX7525 | Two Ball Bearing | 300 | 50 | 75 | 25 | 250 |
Before production
Specification Confirmation and Quality Review
Model codes and dimensional requirements are confirmed before an order. Product inspection can be arranged according to the agreed castor series and application.
