INDUSTRIAL WHEELS · POLYURETHANES

UP Series
Grey Thermoplastic Polyurethane Wheels

UP Grey TPU Wheels. Compare sizes, hub fit, bearings and load ratings. Request a model quote from Taishan.

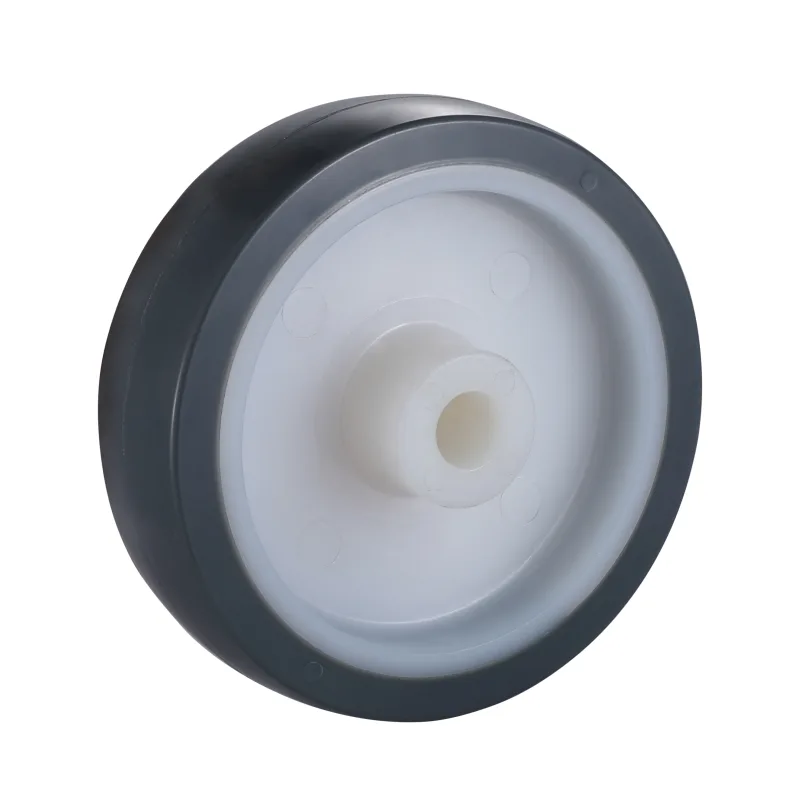

Series reference image. Sizes and bearing details vary by model.

SERIES RANGE

Wheel diameter
100–200 mm
Load per wheel
160–400 kg
Bearing options
3
Request a Quote View Specifications

Wheel-only product. Check the axle fit, installation space and operating requirements before selection.

01 / THE WHEEL

Wheel Construction.

Review the wheel construction together with its model dimensions, bearing configuration and operating conditions.

Explore Polyurethane (PU) Wheels
Tread material
Polyurethanes
Colour
Grey
Product format
Wheel only

Need wheel-centre material, hardness or operating limits? Request the model-specific information with your enquiry.

03 / COMPARE COMPLETE MODELS

Model Codes & Specifications.

Select a model code to reference it in your enquiry. All dimensions are in mm; load is kg per wheel.

01

Plain Bore

6 models
Plain Bore

Scroll the table to compare all dimensions

UP Series · Plain Bore — dimensions in mm; load per wheel in kg
Code Number Bearing TypeWheel Ø mmWheel Width mmHub Length mmHub Bore mmLoad Capacity kg / wheel
Plain Bore80344012120
Plain Bore100344012160
Plain Bore125365015250
Plain Bore150406020300
Plain Bore160406020350
Plain Bore200506020500
80 mm wheel120 kg / wheel

80D34BUPPX4012

Bearing Type
Plain Bore
Wheel Ø
80 mm
Wheel Width
34 mm
Hub Length
40 mm
Hub Bore
12 mm
100 mm wheel160 kg / wheel

100D34BUPPX4012

Bearing Type
Plain Bore
Wheel Ø
100 mm
Wheel Width
34 mm
Hub Length
40 mm
Hub Bore
12 mm
125 mm wheel250 kg / wheel

125D36BUPPX5015

Bearing Type
Plain Bore
Wheel Ø
125 mm
Wheel Width
36 mm
Hub Length
50 mm
Hub Bore
15 mm
150 mm wheel300 kg / wheel

150D40BUPPX6020

Bearing Type
Plain Bore
Wheel Ø
150 mm
Wheel Width
40 mm
Hub Length
60 mm
Hub Bore
20 mm
160 mm wheel350 kg / wheel

160D40BUPPX6020

Bearing Type
Plain Bore
Wheel Ø
160 mm
Wheel Width
40 mm
Hub Length
60 mm
Hub Bore
20 mm
200 mm wheel500 kg / wheel

200D50BUPPX6020

Bearing Type
Plain Bore
Wheel Ø
200 mm
Wheel Width
50 mm
Hub Length
60 mm
Hub Bore
20 mm
02

Roller Bearing

6 models
Roller Bearing

Scroll the table to compare all dimensions

UP Series · Roller Bearing — dimensions in mm; load per wheel in kg
Code Number Bearing TypeWheel Ø mmWheel Width mmHub Length mmHub Bore mmLoad Capacity kg / wheel
Roller Bearing80344012120
Roller Bearing100344012160
Roller Bearing125365015250
Roller Bearing150406020300
Roller Bearing160406020350
Roller Bearing200506020500
80 mm wheel120 kg / wheel

80D34BUPRX4012

Bearing Type
Roller Bearing
Wheel Ø
80 mm
Wheel Width
34 mm
Hub Length
40 mm
Hub Bore
12 mm
100 mm wheel160 kg / wheel

100D34BUPRX4012

Bearing Type
Roller Bearing
Wheel Ø
100 mm
Wheel Width
34 mm
Hub Length
40 mm
Hub Bore
12 mm
125 mm wheel250 kg / wheel

125D36BUPRX5015

Bearing Type
Roller Bearing
Wheel Ø
125 mm
Wheel Width
36 mm
Hub Length
50 mm
Hub Bore
15 mm
150 mm wheel300 kg / wheel

150D40BUPRX6020

Bearing Type
Roller Bearing
Wheel Ø
150 mm
Wheel Width
40 mm
Hub Length
60 mm
Hub Bore
20 mm
160 mm wheel350 kg / wheel

160D40BUPRX6020

Bearing Type
Roller Bearing
Wheel Ø
160 mm
Wheel Width
40 mm
Hub Length
60 mm
Hub Bore
20 mm
200 mm wheel500 kg / wheel

200D50BUPRX6020

Bearing Type
Roller Bearing
Wheel Ø
200 mm
Wheel Width
50 mm
Hub Length
60 mm
Hub Bore
20 mm
03

Single Ball Bearing

3 models
Single Ball Bearing

Scroll the table to compare all dimensions

UP Series · Single Ball Bearing — dimensions in mm; load per wheel in kg
Code Number Bearing TypeWheel Ø mmWheel Width mmHub Length mmHub Bore mmLoad Capacity kg / wheel
Single Ball Bearing8034428120
Single Ball Bearing10034428160
Single Ball Bearing125365210250
80 mm wheel120 kg / wheel

80D34BUPBA4208

Bearing Type
Single Ball Bearing
Wheel Ø
80 mm
Wheel Width
34 mm
Hub Length
42 mm
Hub Bore
8 mm
100 mm wheel160 kg / wheel

100D34BUPBA4208

Bearing Type
Single Ball Bearing
Wheel Ø
100 mm
Wheel Width
34 mm
Hub Length
42 mm
Hub Bore
8 mm
125 mm wheel250 kg / wheel

125D36BUPBA5210

Bearing Type
Single Ball Bearing
Wheel Ø
125 mm
Wheel Width
36 mm
Hub Length
52 mm
Hub Bore
10 mm
04

Two Ball Bearings

4 models
Two Ball Bearings

Scroll the table to compare all dimensions

UP Series · Two Ball Bearings — dimensions in mm; load per wheel in kg
Code Number Bearing TypeWheel Ø mmWheel Width mmHub Length mmHub Bore mmLoad Capacity kg / wheel
Two Ball Bearings125506020300
Two Ball Bearings150406220300
Two Ball Bearings160406212350
Two Ball Bearings200506212500
125 mm wheel300 kg / wheel

125D50BUPDX6020

Bearing Type
Two Ball Bearings
Wheel Ø
125 mm
Wheel Width
50 mm
Hub Length
60 mm
Hub Bore
20 mm
150 mm wheel300 kg / wheel

150D40BUPDA6212

Bearing Type
Two Ball Bearings
Wheel Ø
150 mm
Wheel Width
40 mm
Hub Length
62 mm
Hub Bore
20 mm
160 mm wheel350 kg / wheel

160D40BUPDA6212

Bearing Type
Two Ball Bearings
Wheel Ø
160 mm
Wheel Width
40 mm
Hub Length
62 mm
Hub Bore
12 mm
200 mm wheel500 kg / wheel

200D50BUPDA6212

Bearing Type
Two Ball Bearings
Wheel Ø
200 mm
Wheel Width
50 mm
Hub Length
62 mm
Hub Bore
12 mm

8 models

Hub Bore is the catalogue field name. Confirm the axle fit or bearing-seat dimension on the model drawing before ordering.

Selected Models 0

Choose one or more model rows above.

Enquire About Models

    04 / CHECK THE FIT

    Check the Fit Before Ordering.

    Compare the wheel diameter, width, hub length, bore and bearing configuration with your existing assembly or equipment drawing.

    Generic wheel front and side reference: diameter D, width W, hub length L and hub bore d
    Dimension reference only. Not a model drawing or an internal bearing section.

    Select a model to see its dimensions

    DWheel Diameter
    —
    WWheel Width
    —
    LHub Length
    —
    dHub Bore
    —
    Request a Model Drawing

    05 / REVIEW THE WORKING CONDITIONS

    Application & Operating Conditions.

    Model suitability should be reviewed against the actual application. Material alone does not establish the operating limit.

    01

    Load & movement

    Share the load per wheel, or equipment weight and wheel layout. Tell us whether the wheel is manually pushed, towed, driven or used for guidance.

    02

    Floor & installation

    Include floor joints, slopes and obstacles, along with available axle and installation space.

    03

    Environment & requirements

    Describe temperature, exposure time, cleaning and contact materials. Add noise, floor-marking or electrical requirements where relevant.
