UI Series
Yellow Polyurethane Wheels

UI Yellow Polyurethane Wheels. Compare sizes, hub fit, bearings and load ratings. Request a model quote from Taishan.

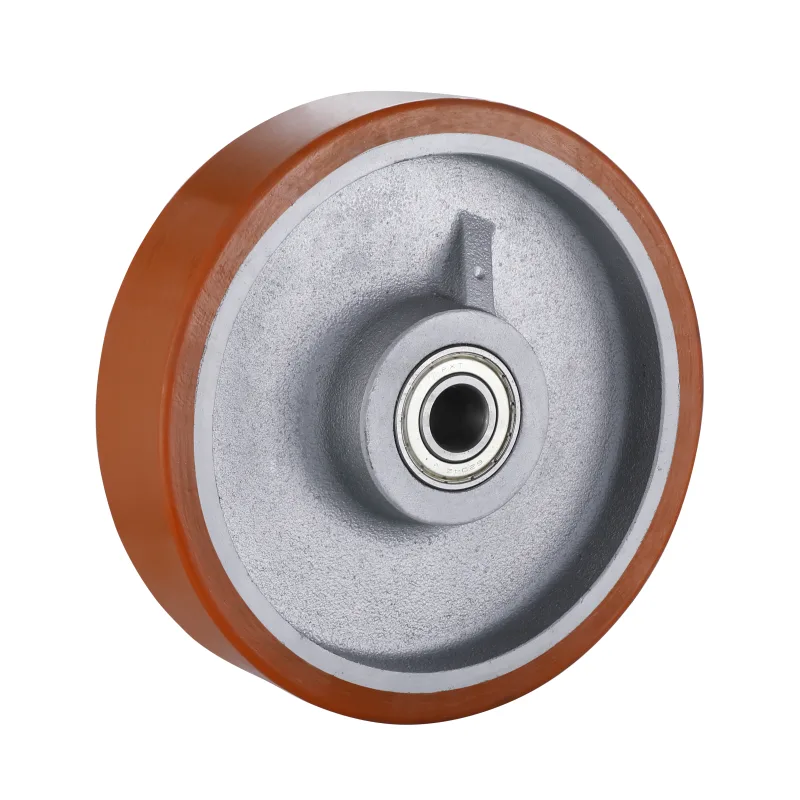

Series reference image. Sizes and bearing details vary by model.

SERIES RANGE

Wheel diameter
100–200 mm
Load per wheel
160–400 kg
Bearing options
3
Request a Quote View Specifications

Wheel-only product. Check the axle fit, installation space and operating requirements before selection.

01 / THE WHEEL

Wheel Construction.

Review the wheel construction together with its model dimensions, bearing configuration and operating conditions.

Explore Polyurethane (PU) Wheels
Tread material
Polyurethanes
Colour
Yellow
Product format
Wheel only

Need wheel-centre material, hardness or operating limits? Request the model-specific information with your enquiry.

03 / COMPARE COMPLETE MODELS

Model Codes & Specifications.

Select a model code to reference it in your enquiry. All dimensions are in mm; load is kg per wheel.

01

Two Ball Bearings

18 models
Two Ball Bearings

Scroll the table to compare all dimensions

UI Series · Two Ball Bearings — dimensions in mm; load per wheel in kg
Code Number Bearing TypeWheel Ø mmWheel Width mmHub Length mmHub Bore mmLoad Capacity kg / wheel
Two Ball Bearings80324015250
Two Ball Bearings100324015350
Two Ball Bearings125384515400
Two Ball Bearings125506020660
Two Ball Bearings140506020700
Two Ball Bearings150506020800
Two Ball Bearings160506020900
Two Ball Bearings1755060201000
Two Ball Bearings1805060201000
Two Ball Bearings2005060201200
Two Ball Bearings2008090301600
Two Ball Bearings2505060251440
Two Ball Bearings2508090301800
Two Ball Bearings3006070301800
Two Ball Bearings3008090352400
Two Ball Bearings300100105353000
Two Ball Bearings3607590352500
Two Ball Bearings50020020010010000
80 mm wheel250 kg / wheel

80E32JUIDX4015

Bearing Type
Two Ball Bearings
Wheel Ø
80 mm
Wheel Width
32 mm
Hub Length
40 mm
Hub Bore
15 mm
100 mm wheel350 kg / wheel

100E32JUIDX4015

Bearing Type
Two Ball Bearings
Wheel Ø
100 mm
Wheel Width
32 mm
Hub Length
40 mm
Hub Bore
15 mm
125 mm wheel400 kg / wheel

125E32JUIDX4515

Bearing Type
Two Ball Bearings
Wheel Ø
125 mm
Wheel Width
38 mm
Hub Length
45 mm
Hub Bore
15 mm
125 mm wheel660 kg / wheel

125E50JUIDX6020

Bearing Type
Two Ball Bearings
Wheel Ø
125 mm
Wheel Width
50 mm
Hub Length
60 mm
Hub Bore
20 mm
140 mm wheel700 kg / wheel

140E50JUIDX6020

Bearing Type
Two Ball Bearings
Wheel Ø
140 mm
Wheel Width
50 mm
Hub Length
60 mm
Hub Bore
20 mm
150 mm wheel800 kg / wheel

150E50JUIDX6020

Bearing Type
Two Ball Bearings
Wheel Ø
150 mm
Wheel Width
50 mm
Hub Length
60 mm
Hub Bore
20 mm
160 mm wheel900 kg / wheel

160E50JUIDX6020

Bearing Type
Two Ball Bearings
Wheel Ø
160 mm
Wheel Width
50 mm
Hub Length
60 mm
Hub Bore
20 mm
175 mm wheel1000 kg / wheel

175E50JUIDX6020

Bearing Type
Two Ball Bearings
Wheel Ø
175 mm
Wheel Width
50 mm
Hub Length
60 mm
Hub Bore
20 mm
180 mm wheel1000 kg / wheel

180E50JUIDX6020

Bearing Type
Two Ball Bearings
Wheel Ø
180 mm
Wheel Width
50 mm
Hub Length
60 mm
Hub Bore
20 mm
200 mm wheel1200 kg / wheel

200E50JUIDX6020

Bearing Type
Two Ball Bearings
Wheel Ø
200 mm
Wheel Width
50 mm
Hub Length
60 mm
Hub Bore
20 mm
200 mm wheel1600 kg / wheel

200E80JUIDX9030

Bearing Type
Two Ball Bearings
Wheel Ø
200 mm
Wheel Width
80 mm
Hub Length
90 mm
Hub Bore
30 mm
250 mm wheel1440 kg / wheel

250E50JUIDX6025

Bearing Type
Two Ball Bearings
Wheel Ø
250 mm
Wheel Width
50 mm
Hub Length
60 mm
Hub Bore
25 mm
250 mm wheel1800 kg / wheel

250E80JUIDX9030

Bearing Type
Two Ball Bearings
Wheel Ø
250 mm
Wheel Width
80 mm
Hub Length
90 mm
Hub Bore
30 mm
300 mm wheel1800 kg / wheel

300E60JUIDX7030

Bearing Type
Two Ball Bearings
Wheel Ø
300 mm
Wheel Width
60 mm
Hub Length
70 mm
Hub Bore
30 mm
300 mm wheel2400 kg / wheel

300E80JUIDX9035

Bearing Type
Two Ball Bearings
Wheel Ø
300 mm
Wheel Width
80 mm
Hub Length
90 mm
Hub Bore
35 mm
300 mm wheel3000 kg / wheel

300E100JUIDX10535

Bearing Type
Two Ball Bearings
Wheel Ø
300 mm
Wheel Width
100 mm
Hub Length
105 mm
Hub Bore
35 mm
360 mm wheel2500 kg / wheel

360E75JUIDX9035

Bearing Type
Two Ball Bearings
Wheel Ø
360 mm
Wheel Width
75 mm
Hub Length
90 mm
Hub Bore
35 mm
500 mm wheel10000 kg / wheel

500E200JUIDX200100

Bearing Type
Two Ball Bearings
Wheel Ø
500 mm
Wheel Width
200 mm
Hub Length
200 mm
Hub Bore
100 mm

8 models

Hub Bore is the catalogue field name. Confirm the axle fit or bearing-seat dimension on the model drawing before ordering.

Selected Models 0

Choose one or more model rows above.

Enquire About Models

    04 / CHECK THE FIT

    Check the Fit Before Ordering.

    Compare the wheel diameter, width, hub length, bore and bearing configuration with your existing assembly or equipment drawing.

    Generic wheel front and side reference: diameter D, width W, hub length L and hub bore d
    Dimension reference only. Not a model drawing or an internal bearing section.

    Select a model to see its dimensions

    DWheel Diameter
    —
    WWheel Width
    —
    LHub Length
    —
    dHub Bore
    —
    Request a Model Drawing

    05 / REVIEW THE WORKING CONDITIONS

    Application & Operating Conditions.

    Model suitability should be reviewed against the actual application. Material alone does not establish the operating limit.

    01

    Load & movement

    Share the load per wheel, or equipment weight and wheel layout. Tell us whether the wheel is manually pushed, towed, driven or used for guidance.

    02

    Floor & installation

    Include floor joints, slopes and obstacles, along with available axle and installation space.

    03

    Environment & requirements

    Describe temperature, exposure time, cleaning and contact materials. Add noise, floor-marking or electrical requirements where relevant.

    Explore Applications

    06 / TECHNICAL SUPPORT

    Technical Documents & Specification Review.

    Use the listed dimensions and model code as the starting point for your enquiry. Contact us for a drawing, material information or an agreed inspection requirement.
