Polyurethane (PU) Wheels

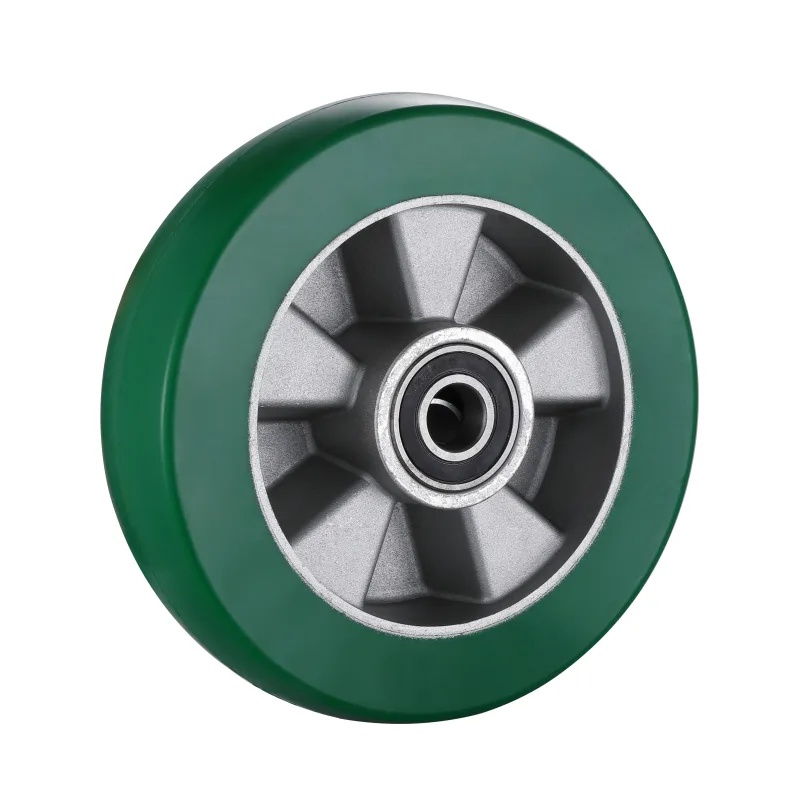

UH Series Green Elastic Polyurethane Wheels
UH Green Polyurethane Wheels are listed with 80-300 mm wheel diameters and 200-750 kg catalogue loads per wheel. Compare the wheel-bearing options and exact model rows below. Check axle fit and hub dimensions against your equipment, then send the selected code, quantity and operating conditions for confirmation.
Include required quantity, wheel diameter, load per unit and operating conditions.
Product overview
Series Features and Application
Selection at a glance
UH Green Polyurethane Wheels are listed with 80-300 mm wheel diameters and 200-750 kg catalogue loads per wheel. Compare the wheel-bearing options and exact model rows below. Check axle fit and hub dimensions against your equipment, then send the selected code, quantity and operating conditions for confirmation.
Compare actual catalogue rows
These are examples from the existing parameter tables. Values in each row belong to that code and configuration; confirm the full table for other sizes or mounting patterns.
| Configuration | Code Number | Diameter (mm) | Catalogue load per wheel (kg) | Bearing |
|---|---|---|---|---|
| Two Ball Bearing Wheels | 80H40JUHDX4015 | 80 | 200 | Two ball bearings |
| Two Ball Bearing Wheels | 300H60JUHDX7525 | 300 | 750 | Two ball bearings |
Choose for the application
Compare polyurethane by tread construction, hardness and hub design, not colour alone. Different polyurethane formulations can behave differently under water, heat and repeated loading.
Prepare the enquiry
- Select the complete Code Number and confirm axle fit and hub dimensions.
- Describe load, floor, movement, temperature and cleaning conditions.
- Send quantity, destination country and any required drawing or inspection specification.
Practical checks
Pro tip: Supply the cleaning and temperature cycle with the enquiry.
Pro tip: Compare the code-specific hub, bearing and load rather than assuming every PU wheel is equivalent.
Compare the related product series or request a model-specific quotation.
Real configurations
Configurations and Parameter Tables
Compare model code, bearing, wheel diameter, mounting dimensions, overall height and load capacity.
Available configuration
Two Ball Bearing Wheels
| Code Number |  Bearing |  Wheel Diameter(mm) |  Wheel Width(mm) |  Hub Length(mm) |  Hub Bore(mm) |  Load Capacity(kg) |
|---|---|---|---|---|---|---|
| 80H40JUHDX4015 |  Two Ball Bearing | 80 | 38 | 40 | 15 | 200 |
| 100H40JUHDX4015 | Two Ball Bearing | 100 | 40 | 40 | 15 | 250 |
| 125H40JUHDX5015 | Two Ball Bearing | 125 | 40 | 50 | 15 | 300 |
| 125H50JUHDX6020 | Two Ball Bearing | 125 | 50 | 60 | 20 | 320 |
| 150H50JUHDX6020 | Two Ball Bearing | 150 | 50 | 60 | 20 | 400 |
| 160H50JUHDX6020 | Two Ball Bearing | 160 | 50 | 60 | 20 | 440 |
| 180H50JUHDX6020 | Two Ball Bearing | 180 | 50 | 60 | 20 | 500 |
| 200H50JUHDX6020 | Two Ball Bearing | 200 | 50 | 60 | 20 | 560 |
| 250H50JUHDX6025 | Two Ball Bearing | 250 | 50 | 60 | 25 | 640 |
| 300H60JUHDX7525 | Two Ball Bearing | 300 | 60 | 75 | 25 | 750 |
Before production
Specification Confirmation and Quality Review
Model codes and dimensional requirements are confirmed before an order. Product inspection can be arranged according to the agreed castor series and application.
