Polypropylene (PP) Wheels

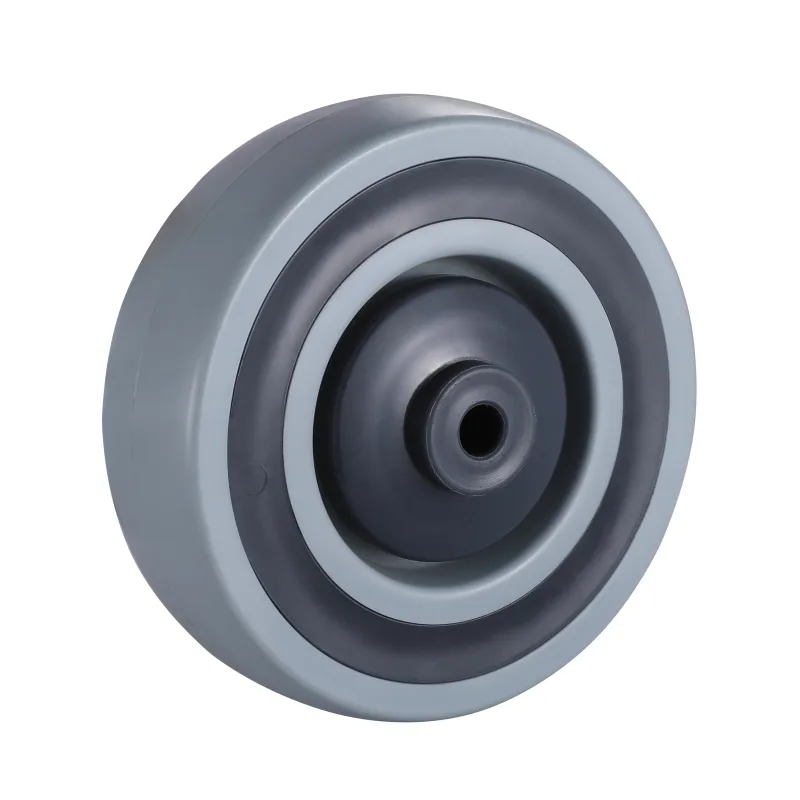

RE Series Grey Polypropylene Sandwich Wheels
RE Grey Polypropylene Wheels are listed with 100-125 mm wheel diameters and 130-160 kg catalogue loads per wheel. Compare the wheel-bearing options and exact model rows below. Check axle fit and hub dimensions against your equipment, then send the selected code, quantity and operating conditions for confirmation.
Include required quantity, wheel diameter, load per unit and operating conditions.
Product overview
Series Features and Application
Selection at a glance
RE Grey Polypropylene Wheels are listed with 100-125 mm wheel diameters and 130-160 kg catalogue loads per wheel. Compare the wheel-bearing options and exact model rows below. Check axle fit and hub dimensions against your equipment, then send the selected code, quantity and operating conditions for confirmation.
Compare actual catalogue rows
These are examples from the existing parameter tables. Values in each row belong to that code and configuration; confirm the full table for other sizes or mounting patterns.
| Configuration | Code Number | Diameter (mm) | Catalogue load per wheel (kg) | Bearing |
|---|---|---|---|---|
| Single Ball Bearing Wheels | 100B36REBA4208 | 100 | 130 | Single ball bearing |
| Roller Bearing Wheels | 100B36RERX4012 | 100 | 130 | Roller bearing |
Choose for the application
Compare polypropylene as a hard-wheel option for suitable equipment and floor conditions. A hard wheel provides less cushioning than a resilient tread; inspect route transitions and noise.
Prepare the enquiry
- Select the complete Code Number and confirm axle fit and hub dimensions.
- Describe load, floor, movement, temperature and cleaning conditions.
- Send quantity, destination country and any required drawing or inspection specification.
Practical checks
Pro tip: Check the floor joints with the fully loaded equipment.
Pro tip: Confirm the axle or bracket dimensions as well as wheel diameter.
Compare the related product series or request a model-specific quotation.
Real configurations
Configurations and Parameter Tables
Compare model code, bearing, wheel diameter, mounting dimensions, overall height and load capacity.
Available configuration
Single Ball Bearing Wheels
| Code Number |  Bearing |  Wheel Diameter(mm) |  Wheel Width(mm) |  Hub Length(mm) |  Hub Bore(mm) |  Load Capacity(kg) |
|---|---|---|---|---|---|---|
| 100B36REBA4208 |  Single Ball Bearing | 100 | 36 | 42 | 8 | 130 |
| 125B36REBA5210 | Single Ball Bearing | 125 | 36 | 52 | 10 | 160 |
Available configuration
Roller Bearing Wheels
| Code Number | Bearing | Wheel Diameter(mm) | Wheel Width(mm) | Hub Length(mm) | Hub Bore(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|
| 100B36RERX4012 |  Roller Bearing | 100 | 36 | 40 | 12 | 130 |
| 125B36RERX5015 | Roller Bearing | 125 | 36 | 50 | 15 | 160 |
Before production
Specification Confirmation and Quality Review
Model codes and dimensional requirements are confirmed before an order. Product inspection can be arranged according to the agreed castor series and application.
