Pneumatic Tyres

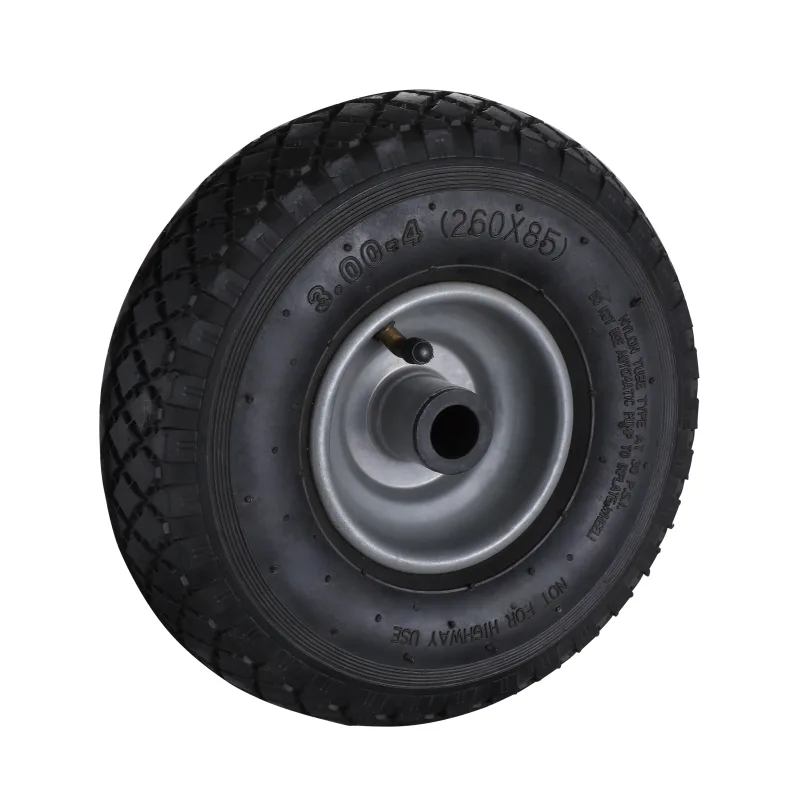

FS Series Black Pneumatic Rubber Wheels
FS Black Pneumatic Rubber Wheels are listed with 200-260 mm wheel diameters and 75-150 kg catalogue loads per wheel. Compare the wheel-bearing options and exact model rows below. Check axle fit and hub dimensions against your equipment, then send the selected code, quantity and operating conditions for confirmation.
Include required quantity, wheel diameter, load per unit and operating conditions.
Product overview
Series Features and Application
Selection at a glance
FS Black Pneumatic Rubber Wheels are listed with 200-260 mm wheel diameters and 75-150 kg catalogue loads per wheel. Compare the wheel-bearing options and exact model rows below. Check axle fit and hub dimensions against your equipment, then send the selected code, quantity and operating conditions for confirmation.
Compare actual catalogue rows
These are examples from the existing parameter tables. Values in each row belong to that code and configuration; confirm the full table for other sizes or mounting patterns.
| Configuration | Code Number | Diameter (mm) | Catalogue load per wheel (kg) | Bearing |
|---|---|---|---|---|
| Roller Bearing Wheels | 200C50JFSRX5820 | 200 | 75 | Roller bearing |
| Two Ball Bearing Wheels | 200C50JFSDX5820 | 200 | 75 | Two ball bearings |
Choose for the application
Compare pneumatic wheels where the route calls for an air-filled tyre construction. Tyre pressure, puncture exposure and dimensional clearance require maintenance planning.
Prepare the enquiry
- Select the complete Code Number and confirm axle fit and hub dimensions.
- Describe load, floor, movement, temperature and cleaning conditions.
- Send quantity, destination country and any required drawing or inspection specification.
Practical checks
Pro tip: Request the tyre pressure specified for the exact model.
Pro tip: Check tyre clearance under load and when steering.
Compare the related product series or request a model-specific quotation.
Real configurations
Configurations and Parameter Tables
Compare model code, bearing, wheel diameter, mounting dimensions, overall height and load capacity.
Available configuration
Roller Bearing Wheels
| Code Number |  Bearing |  Wheel Diameter(mm) |  Wheel Width(mm) |  Hub Length(mm) |  Hub Bore(mm) |  Load Capacity(kg) |
|---|---|---|---|---|---|---|
| 200C50JFSRX5820 |  Roller Bearing | 200 | 50 | 58 | 20 | 75 |
| 260C85JFSRX7520 | Roller Bearing | 260 | 85 | 75 | 20 | 150 |
Available configuration
Two Ball Bearing Wheels
| Code Number | Bearing | Wheel Diameter(mm) | Wheel Width(mm) | Hub Length(mm) | Hub Bore(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|
| 200C50JFSDX5820 |  Two Ball Bearing | 200 | 50 | 58 | 20 | 75 |
| 260C85JFSDX7520 | Two Ball Bearing | 260 | 85 | 75 | 20 | 150 |
Before production
Specification Confirmation and Quality Review
Model codes and dimensional requirements are confirmed before an order. Product inspection can be arranged according to the agreed castor series and application.
