100 mm wheel160 kg / wheel
100D36DRARX4012
Bearing Type
Roller Bearing
Wheel Ø- 100 mm
Wheel Width- 36 mm
Hub Length- 40 mm
Hub Bore- 12 mm
INDUSTRIAL WHEELS · POLYAMIDE
RA Series
Grey Polyamide Sandwich Wheels
RA Grey Polyamide Sandwich Wheels. Compare sizes, hub fit, bearings and load ratings. Request a model quote from Taishan.

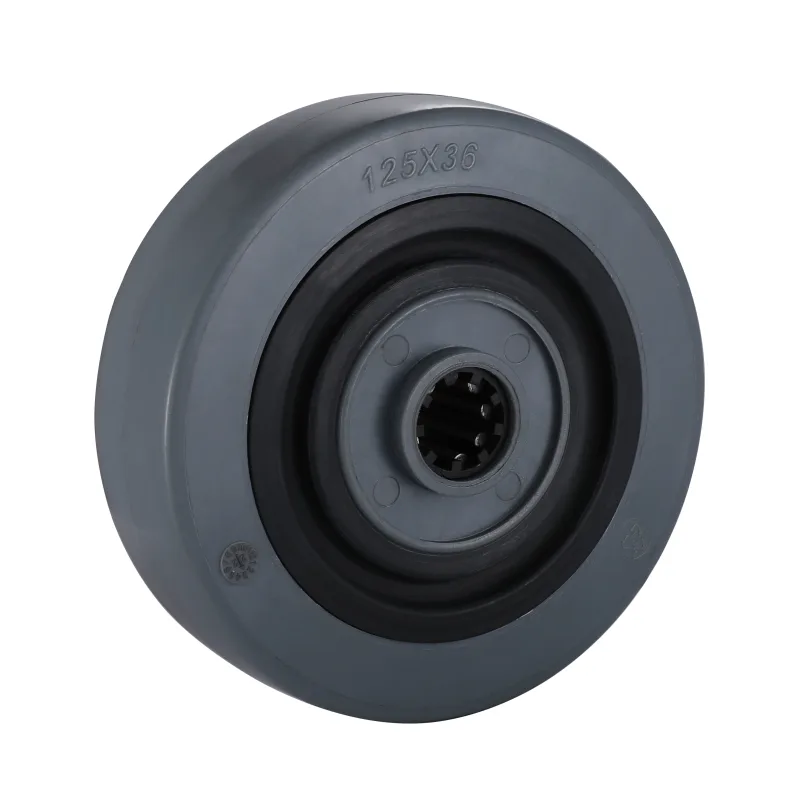

Series reference image. Sizes and bearing details vary by model.
SERIES RANGE
- Wheel diameter
- 100–200 mm
- Load per wheel
- 160–400 kg
- Bearing options
- 3
Wheel-only product. Check the axle fit, installation space and operating requirements before selection.
01 / THE WHEEL
Wheel Construction.
Review the wheel construction together with its model dimensions, bearing configuration and operating conditions.
Explore Nylon (Polyamide/PA) Wheels- Tread material
- Polyamide
- Colour
- Grey
- Product format
- Wheel only
Need wheel-centre material, hardness or operating limits? Request the model-specific information with your enquiry.
03 / COMPARE COMPLETE MODELS
Model Codes & Specifications.
Select a model code to reference it in your enquiry. All dimensions are in mm; load is kg per wheel.
01
2 modelsRoller Bearing
Scroll the table to compare all dimensions
| Code Number | Bearing Type | Wheel Ø mm | Wheel Width mm | Hub Length mm | Hub Bore mm |  Load Capacity kg / wheel |
|---|---|---|---|---|---|---|
| Roller Bearing | 100 | 36 | 40 | 12 | 160 | |
| Roller Bearing | 125 | 36 | 50 | 15 | 200 |
125 mm wheel200 kg / wheel
125D36DRARX5015
- Bearing Type
- Roller Bearing
- Wheel Ø
- 125 mm
- Wheel Width
- 36 mm
- Hub Length
- 50 mm
- Hub Bore
- 15 mm
02
2 modelsSingle Ball Bearing
Scroll the table to compare all dimensions
| Code Number | Bearing Type | Wheel Ø mm | Wheel Width mm | Hub Length mm | Hub Bore mm | Load Capacity kg / wheel |
|---|---|---|---|---|---|---|
| Single Ball Bearing | 100 | 36 | 42 | 8 | 160 | |
| Single Ball Bearing | 125 | 35 | 52 | 10 | 200 |
100 mm wheel160 kg / wheel
100D36DRABA4208
- Bearing Type
- Single Ball Bearing
- Wheel Ø
- 100 mm
- Wheel Width
- 36 mm
- Hub Length
- 42 mm
- Hub Bore
- 8 mm
125 mm wheel200 kg / wheel
125D36DRABA5210
- Bearing Type
- Single Ball Bearing
- Wheel Ø
- 125 mm
- Wheel Width
- 35 mm
- Hub Length
- 52 mm
- Hub Bore
- 10 mm
8 models
Hub Bore is the catalogue field name. Confirm the axle fit or bearing-seat dimension on the model drawing before ordering.
04 / CHECK THE FIT
Check the Fit Before Ordering.
Compare the wheel diameter, width, hub length, bore and bearing configuration with your existing assembly or equipment drawing.
Select a model to see its dimensions
- DWheel Diameter
- —
- WWheel Width
- —
- LHub Length
- —
- dHub Bore
- —
05 / REVIEW THE WORKING CONDITIONS
Application & Operating Conditions.
Model suitability should be reviewed against the actual application. Material alone does not establish the operating limit.
01
Load & movement
Share the load per wheel, or equipment weight and wheel layout. Tell us whether the wheel is manually pushed, towed, driven or used for guidance.
02
Floor & installation
Include floor joints, slopes and obstacles, along with available axle and installation space.
03
Environment & requirements
Describe temperature, exposure time, cleaning and contact materials. Add noise, floor-marking or electrical requirements where relevant.
