Guide Rollers

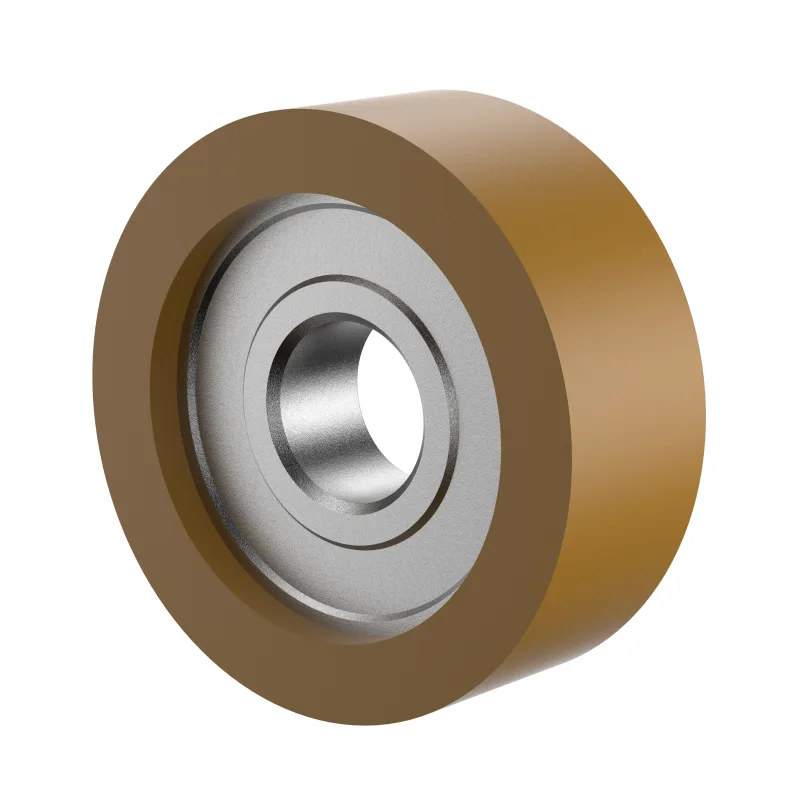

GB Series Yellow Polyurethane Guide Wheels
GB Yellow Guide Rollers are listed with 30-70 mm wheel diameters and 25-125 kg catalogue loads per wheel. Compare the wheel-bearing options and exact model rows below. Check axle fit and hub dimensions against your equipment, then send the selected code, quantity and operating conditions for confirmation.
Include required quantity, wheel diameter, load per unit and operating conditions.
Product overview
Series Features and Application
Selection at a glance
GB Yellow Guide Rollers are listed with 30-70 mm wheel diameters and 25-125 kg catalogue loads per wheel. Compare the wheel-bearing options and exact model rows below. Check axle fit and hub dimensions against your equipment, then send the selected code, quantity and operating conditions for confirmation.
Compare actual catalogue rows
These are examples from the existing parameter tables. Values in each row belong to that code and configuration; confirm the full table for other sizes or mounting patterns.
| Configuration | Code Number | Diameter (mm) | Catalogue load per wheel (kg) | Bearing |
|---|---|---|---|---|
| Single Ball Bearing Wheels | 30E8JGBBX0806 | 30 | 25 | Single ball bearing |
| Single Ball Bearing Wheels | 70E20JGBBX2025 | 70 | 125 | Single ball bearing |
Choose for the application
Select guide rollers by the contact geometry, mounting and direction of applied load. A guide roller should not be assumed to have the same duty as a floor-running wheel.
Prepare the enquiry
- Select the complete Code Number and confirm axle fit and hub dimensions.
- Describe load, floor, movement, temperature and cleaning conditions.
- Send quantity, destination country and any required drawing or inspection specification.
Practical checks
Pro tip: Provide a drawing showing radial and any side loads.
Pro tip: Confirm speed, contact surface and shaft dimensions.
Compare the related product series or request a model-specific quotation.
Real configurations
Configurations and Parameter Tables
Compare model code, bearing, wheel diameter, mounting dimensions, overall height and load capacity.
Available configuration
Single Ball Bearing Wheels
| Code Number |  Bearing |  Wheel Diameter(mm) |  Wheel Width(mm) |  Hub Bore(mm) |  Load Capacity(kg) |
|---|---|---|---|---|---|
| 30E8JGBBX0806 |  Single Ball Bearing | 30 | 8 | 6 | 25 |
| 30E11JGBBX1109 | Single Ball Bearing | 30 | 11 | 9 | 30 |
| 35E14JGBBX1412 | Single Ball Bearing | 35 | 14 | 12 | 40 |
| 40E15JGBBX1510 | Single Ball Bearing | 40 | 15 | 10 | 40 |
| 40E20JGBBX2010 | Single Ball Bearing | 40 | 20 | 10 | 50 |
| 50E15JGBBX1510 | Single Ball Bearing | 50 | 15 | 10 | 60 |
| 50E18JGBBX1815 | Single Ball Bearing | 50 | 18 | 15 | 70 |
| 60E20JGBBX2017 | Single Ball Bearing | 60 | 20 | 17 | 90 |
| 70E20JGBBX2025 | Single Ball Bearing | 70 | 20 | 25 | 125 |
Before production
Specification Confirmation and Quality Review
Model codes and dimensional requirements are confirmed before an order. Product inspection can be arranged according to the agreed castor series and application.
