Electrically Conductive Wheels

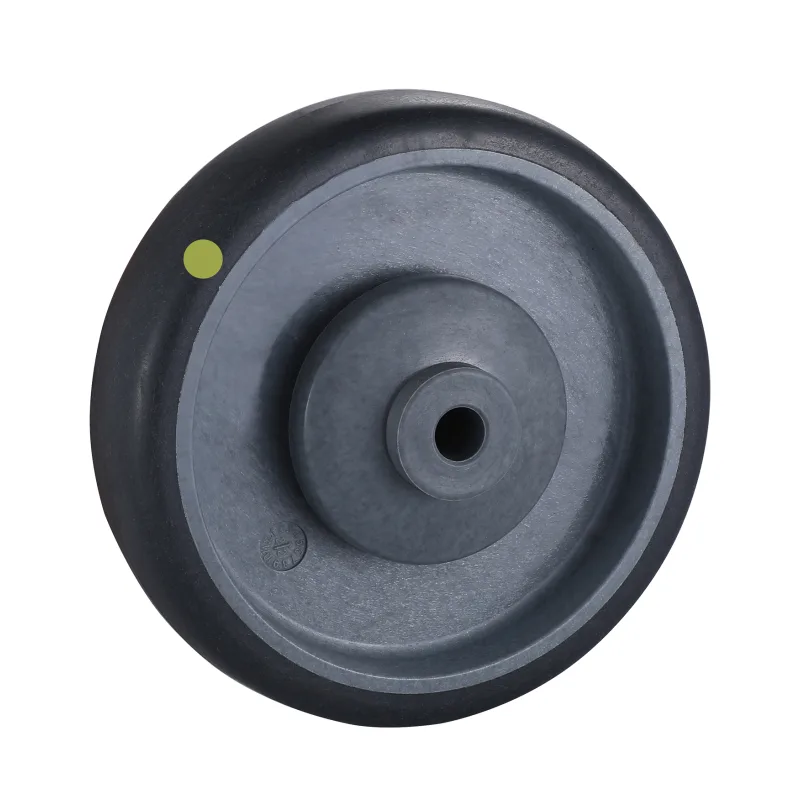

TR(EC) Series Grey Electrically Conductive Thermoplastic Rubber Wheels
TR(EC) Grey Electrically Conductive Wheels are listed with 100-200 mm wheel diameters and 100-250 kg catalogue loads per wheel. Compare the wheel-bearing options and exact model rows below. Check axle fit and hub dimensions against your equipment, then send the selected code, quantity and operating conditions for confirmation.
Include required quantity, wheel diameter, load per unit and operating conditions.
Product overview
Series Features and Application
Selection at a glance
TR(EC) Grey Electrically Conductive Wheels are listed with 100-200 mm wheel diameters and 100-250 kg catalogue loads per wheel. Compare the wheel-bearing options and exact model rows below. Check axle fit and hub dimensions against your equipment, then send the selected code, quantity and operating conditions for confirmation.
Compare actual catalogue rows
These are examples from the existing parameter tables. Values in each row belong to that code and configuration; confirm the full table for other sizes or mounting patterns.
| Configuration | Code Number | Diameter (mm) | Catalogue load per wheel (kg) | Bearing |
|---|---|---|---|---|
| Single Ball Bearing Wheels | 100D32DTR(EC)BA4208 | 100 | 100 | Single ball bearing |
| Roller Bearing Wheels | 100D32DTR(EC)RX4012 | 100 | 100 | Roller bearing |
Choose for the application
Compare conductive wheels against the electrical requirement of the assembled equipment. A wheel label alone does not establish a compliant discharge path through the equipment and floor.
Prepare the enquiry
- Select the complete Code Number and confirm axle fit and hub dimensions.
- Describe load, floor, movement, temperature and cleaning conditions.
- Send quantity, destination country and any required drawing or inspection specification.
Practical checks
Pro tip: Request the model-specific resistance data and test conditions.
Pro tip: Validate the full path after installation and through the cleaning cycle.
Compare the related product series or request a model-specific quotation.
Real configurations
Configurations and Parameter Tables
Compare model code, bearing, wheel diameter, mounting dimensions, overall height and load capacity.
Available configuration
Single Ball Bearing Wheels
| Code Number |  Bearing |  Wheel Diameter(mm) |  Wheel Width(mm) |  Hub Length(mm) |  Hub Bore(mm) |  Load Capacity(kg) |
|---|---|---|---|---|---|---|
| 100D32DTR(EC)BA4208 |  Single Ball Bearing | 100 | 32 | 42 | 8 | 100 |
| 125D32DTR(EC)BA5210 | Single Ball Bearing | 125 | 32 | 52 | 10 | 150 |
| 160D40DTR(EC)BA6212 | Single Ball Bearing | 160 | 40 | 62 | 12 | 200 |
| 200D40DTR(EC)BA6212 | Single Ball Bearing | 200 | 40 | 62 | 12 | 250 |
Available configuration
Roller Bearing Wheels
| Code Number | Bearing | Wheel Diameter(mm) | Wheel Width(mm) | Hub Length(mm) | Hub Bore(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|
| 100D32DTR(EC)RX4012 |  Roller Bearing | 100 | 32 | 40 | 12 | 100 |
| 125D32DTR(EC)RX5015 | Roller Bearing | 125 | 32 | 50 | 15 | 150 |
| 160D40DTR(EC)RX6020 | Roller Bearing | 160 | 40 | 60 | 20 | 200 |
| 200D40DTR(EC)RX6020 | Roller Bearing | 200 | 40 | 60 | 20 | 250 |
Before production
Specification Confirmation and Quality Review
Model codes and dimensional requirements are confirmed before an order. Product inspection can be arranged according to the agreed castor series and application.
