INDUSTRIAL WHEELS · ELASTIC RUBBER

EP(EC) Series

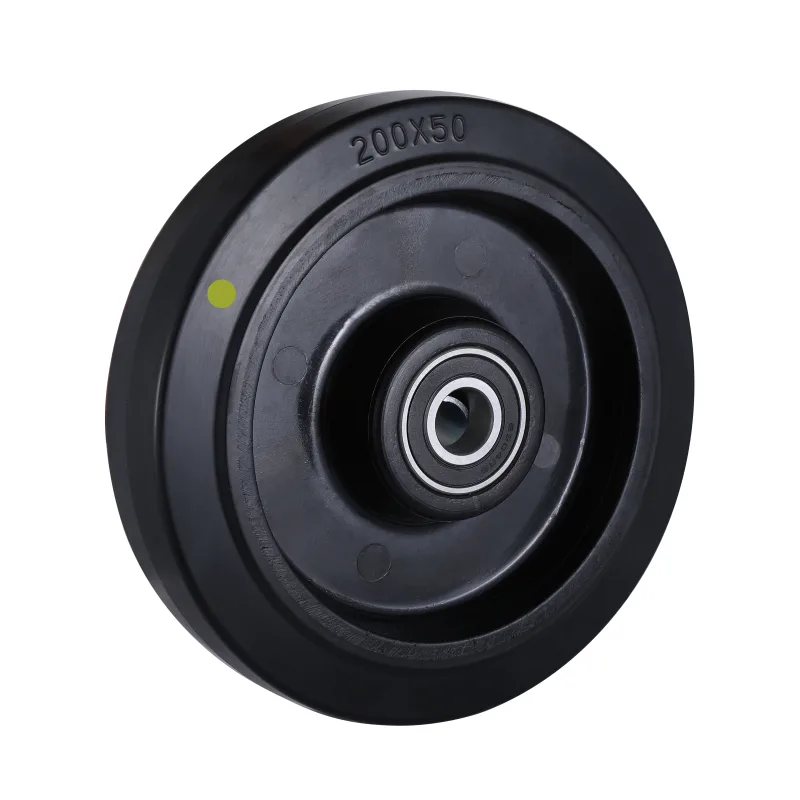

Black Electrically Conductive Elastic Rubber Wheels

EP(EC) Black Conductive Elastic Rubber Wheels. Compare sizes, hub fit, bearings and load ratings. Request a model quote from Taishan.

Series reference image. Sizes and bearing details vary by model.

SERIES RANGE

Wheel diameter
100–200 mm
Load per wheel
160–400 kg
Bearing options
3
Request a Quote View Specifications

Wheel-only product. Check the axle fit, installation space and operating requirements before selection.

01 / THE WHEEL

Wheel Construction.

Review the wheel construction together with its model dimensions, bearing configuration and operating conditions.

Explore Electrically Conductive Wheels
Tread material
Elastic rubber
Colour
Black
Product format
Wheel only

Need wheel-centre material, hardness or operating limits? Request the model-specific information with your enquiry.

03 / COMPARE COMPLETE MODELS

Model Codes & Specifications.

Select a model code to reference it in your enquiry. All dimensions are in mm; load is kg per wheel.

01

Plain Bore

1 model
EP(EC) Series Black Electrically Conductive Elastic Rubber Wheels — Plain Bore photograph unavailable
Plain BoreImage not available

Scroll the table to compare all dimensions

EP(EC) Series · Plain Bore — dimensions in mm; load per wheel in kg
Code Number Bearing TypeWheel Ø mmWheel Width mmHub Length mmHub Bore mmLoad Capacity kg / wheel
Plain Bore60354012100
60 mm wheel100 kg / wheel

60C35CEP(EC)PX4012

Bearing Type
Plain Bore
Wheel Ø
60 mm
Wheel Width
35 mm
Hub Length
40 mm
Hub Bore
12 mm
02

Two Ball Bearings

12 models
Two Ball Bearings

Scroll the table to compare all dimensions

EP(EC) Series · Two Ball Bearings — dimensions in mm; load per wheel in kg
Code Number Bearing TypeWheel Ø mmWheel Width mmHub Length mmHub Bore mmLoad Capacity kg / wheel
Two Ball Bearings60354012100
Two Ball Bearings80364015140
Two Ball Bearings100364015180
Two Ball Bearings100506212200
Two Ball Bearings125365015230
Two Ball Bearings125506212250
Two Ball Bearings150506020350
Two Ball Bearings160426020300
Two Ball Bearings160506020400
Two Ball Bearings200456020400
Two Ball Bearings200506020500
Two Ball Bearings250506025600
60 mm wheel100 kg / wheel

60C35CEP(EC)DX4012

Bearing Type
Two Ball Bearings
Wheel Ø
60 mm
Wheel Width
35 mm
Hub Length
40 mm
Hub Bore
12 mm
80 mm wheel140 kg / wheel

80C36CEP(EC)DX4015

Bearing Type
Two Ball Bearings
Wheel Ø
80 mm
Wheel Width
36 mm
Hub Length
40 mm
Hub Bore
15 mm
100 mm wheel180 kg / wheel

100C36CEP(EC)DX4015

Bearing Type
Two Ball Bearings
Wheel Ø
100 mm
Wheel Width
36 mm
Hub Length
40 mm
Hub Bore
15 mm
100 mm wheel200 kg / wheel

100C50CEP(EC)DA6212

Bearing Type
Two Ball Bearings
Wheel Ø
100 mm
Wheel Width
50 mm
Hub Length
62 mm
Hub Bore
12 mm
125 mm wheel230 kg / wheel

125C36CEP(EC)DX5015

Bearing Type
Two Ball Bearings
Wheel Ø
125 mm
Wheel Width
36 mm
Hub Length
50 mm
Hub Bore
15 mm
125 mm wheel250 kg / wheel

125C38CEP(EC)DX5015

Bearing Type
Two Ball Bearings
Wheel Ø
125 mm
Wheel Width
50 mm
Hub Length
62 mm
Hub Bore
12 mm
150 mm wheel350 kg / wheel

150C50CEP(EC)DX6020

Bearing Type
Two Ball Bearings
Wheel Ø
150 mm
Wheel Width
50 mm
Hub Length
60 mm
Hub Bore
20 mm
160 mm wheel300 kg / wheel

160C42CEP(EC)DX6020

Bearing Type
Two Ball Bearings
Wheel Ø
160 mm
Wheel Width
42 mm
Hub Length
60 mm
Hub Bore
20 mm
160 mm wheel400 kg / wheel

160C50CEP(EC)DX6020

Bearing Type
Two Ball Bearings
Wheel Ø
160 mm
Wheel Width
50 mm
Hub Length
60 mm
Hub Bore
20 mm
200 mm wheel400 kg / wheel

200C45CEP(EC)DX6020

Bearing Type
Two Ball Bearings
Wheel Ø
200 mm
Wheel Width
45 mm
Hub Length
60 mm
Hub Bore
20 mm
200 mm wheel500 kg / wheel

200C50CEP(EC)DX6020

Bearing Type
Two Ball Bearings
Wheel Ø
200 mm
Wheel Width
50 mm
Hub Length
60 mm
Hub Bore
20 mm
250 mm wheel600 kg / wheel

250C50CEP(EC)DX6025

Bearing Type
Two Ball Bearings
Wheel Ø
250 mm
Wheel Width
50 mm
Hub Length
60 mm
Hub Bore
25 mm
03

Single Ball Bearing

5 models
Single Ball Bearing

Scroll the table to compare all dimensions

EP(EC) Series · Single Ball Bearing — dimensions in mm; load per wheel in kg
Code Number Bearing TypeWheel Ø mmWheel Width mmHub Length mmHub Bore mmLoad Capacity kg / wheel
Single Ball Bearing7536428110
Single Ball Bearing8036428140
Single Ball Bearing10036428180
Single Ball Bearing125365210230
Single Ball Bearing125385210250
75 mm wheel110 kg / wheel

75C36CEP(EC)BA4208

Bearing Type
Single Ball Bearing
Wheel Ø
75 mm
Wheel Width
36 mm
Hub Length
42 mm
Hub Bore
8 mm
80 mm wheel140 kg / wheel

80C36CEP(EC)BA4208

Bearing Type
Single Ball Bearing
Wheel Ø
80 mm
Wheel Width
36 mm
Hub Length
42 mm
Hub Bore
8 mm
100 mm wheel180 kg / wheel

100C36CEP(EC)BA4208

Bearing Type
Single Ball Bearing
Wheel Ø
100 mm
Wheel Width
36 mm
Hub Length
42 mm
Hub Bore
8 mm
125 mm wheel230 kg / wheel

125C36CEP(EC)BA5210

Bearing Type
Single Ball Bearing
Wheel Ø
125 mm
Wheel Width
36 mm
Hub Length
52 mm
Hub Bore
10 mm
125 mm wheel250 kg / wheel

125C38CEP(EC)BA5210

Bearing Type
Single Ball Bearing
Wheel Ø
125 mm
Wheel Width
38 mm
Hub Length
52 mm
Hub Bore
10 mm
04

Roller Bearing

9 models
Roller Bearing

Scroll the table to compare all dimensions

EP(EC) Series · Roller Bearing — dimensions in mm; load per wheel in kg
Code Number Bearing TypeWheel Ø mmWheel Width mmHub Length mmHub Bore mmLoad Capacity kg / wheel
Roller Bearing80354012140
Roller Bearing100324012160
Roller Bearing100364012180
Roller Bearing125365015230
Roller Bearing125385015250
Roller Bearing150486020320
Roller Bearing160486020350
Roller Bearing200486020450
Roller Bearing250506025600
80 mm wheel140 kg / wheel

80C35CEP(EC)RX4012

Bearing Type
Roller Bearing
Wheel Ø
80 mm
Wheel Width
35 mm
Hub Length
40 mm
Hub Bore
12 mm
100 mm wheel160 kg / wheel

100C32CEP(EC)RX4012

Bearing Type
Roller Bearing
Wheel Ø
100 mm
Wheel Width
32 mm
Hub Length
40 mm
Hub Bore
12 mm
100 mm wheel180 kg / wheel

100C36CEP(EC)RX4012

Bearing Type
Roller Bearing
Wheel Ø
100 mm
Wheel Width
36 mm
Hub Length
40 mm
Hub Bore
12 mm
125 mm wheel230 kg / wheel

125C36CEP(EC)RX5015

Bearing Type
Roller Bearing
Wheel Ø
125 mm
Wheel Width
36 mm
Hub Length
50 mm
Hub Bore
15 mm
125 mm wheel250 kg / wheel

125C38CEP(EC)RX5015

Bearing Type
Roller Bearing
Wheel Ø
125 mm
Wheel Width
38 mm
Hub Length
50 mm
Hub Bore
15 mm
150 mm wheel320 kg / wheel

150C48CEP(EC)RX6020

Bearing Type
Roller Bearing
Wheel Ø
150 mm
Wheel Width
48 mm
Hub Length
60 mm
Hub Bore
20 mm
160 mm wheel350 kg / wheel

160C48CEP(EC)RX6020

Bearing Type
Roller Bearing
Wheel Ø
160 mm
Wheel Width
48 mm
Hub Length
60 mm
Hub Bore
20 mm
200 mm wheel450 kg / wheel

200C48CEP(EC)RX6020

Bearing Type
Roller Bearing
Wheel Ø
200 mm
Wheel Width
48 mm
Hub Length
60 mm
Hub Bore
20 mm
250 mm wheel600 kg / wheel

250C50CEP(EC)RX6025

Bearing Type
Roller Bearing
Wheel Ø
250 mm
Wheel Width
50 mm
Hub Length
60 mm
Hub Bore
25 mm

8 models

Hub Bore is the catalogue field name. Confirm the axle fit or bearing-seat dimension on the model drawing before ordering.

Selected Models 0

Choose one or more model rows above.

Enquire About Models

    04 / CHECK THE FIT

    Check the Fit Before Ordering.

    Compare the wheel diameter, width, hub length, bore and bearing configuration with your existing assembly or equipment drawing.

    Generic wheel front and side reference: diameter D, width W, hub length L and hub bore d
    Dimension reference only. Not a model drawing or an internal bearing section.

    Select a model to see its dimensions

    DWheel Diameter
    —
    WWheel Width
    —
    LHub Length
    —
    dHub Bore
    —
    Request a Model Drawing

    05 / REVIEW THE WORKING CONDITIONS

    Application & Operating Conditions.

    Model suitability should be reviewed against the actual application. Material alone does not establish the operating limit.

    01

    Load & movement

    Share the load per wheel, or equipment weight and wheel layout. Tell us whether the wheel is manually pushed, towed, driven or used for guidance.

    02

    Floor & installation

    Include floor joints, slopes and obstacles, along with available axle and installation space.

    03

    Environment & requirements

    Describe temperature, exposure time, cleaning and contact materials. Add noise, floor-marking or electrical requirements where relevant.
