160 mm wheel450 kg / wheel
160D50CESDX6020
Bearing Type
Two Ball Bearings
Wheel Ø- 160 mm
Wheel Width- 50 mm
Hub Length- 60 mm
Hub Bore- 20 mm
INDUSTRIAL WHEELS · ELASTIC RUBBER
ES Series
Grey Elastic Rubber Wheels
ES Grey Elastic Rubber Wheels. Compare sizes, hub fit, bearings and load ratings. Request a model quote from Taishan.

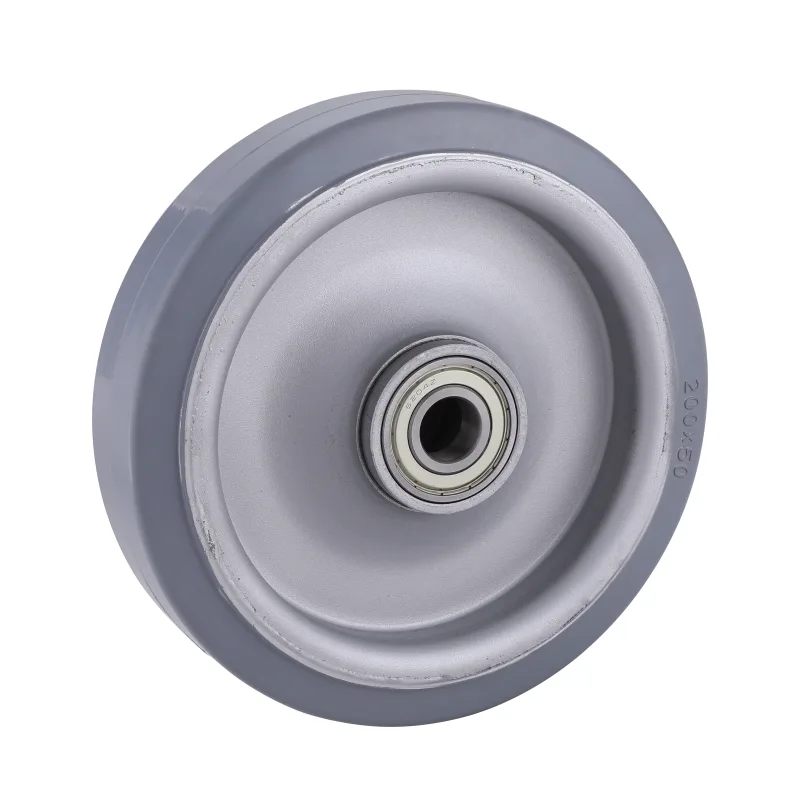

Series reference image. Sizes and bearing details vary by model.
SERIES RANGE
- Wheel diameter
- 100–200 mm
- Load per wheel
- 160–400 kg
- Bearing options
- 3
Wheel-only product. Check the axle fit, installation space and operating requirements before selection.
01 / THE WHEEL
Wheel Construction.
Review the wheel construction together with its model dimensions, bearing configuration and operating conditions.
Explore Elastic Rubber Wheels- Tread material
- Elastic rubber
- Colour
- Grey
- Product format
- Wheel only
Need wheel-centre material, hardness or operating limits? Request the model-specific information with your enquiry.
03 / COMPARE COMPLETE MODELS
Model Codes & Specifications.
Select a model code to reference it in your enquiry. All dimensions are in mm; load is kg per wheel.
01
7 modelsTwo Ball Bearings
Scroll the table to compare all dimensions
| Code Number | Bearing Type | Wheel Ø mm | Wheel Width mm | Hub Length mm | Hub Bore mm |  Load Capacity kg / wheel |
|---|---|---|---|---|---|---|
| Two Ball Bearings | 160 | 50 | 60 | 20 | 450 | |
| Two Ball Bearings | 200 | 50 | 60 | 20 | 550 | |
| Two Ball Bearings | 250 | 80 | 90 | 25 | 1000 | |
| Two Ball Bearings | 300 | 75 | 85 | 30 | 1000 | |
| Two Ball Bearings | 360 | 75 | 90 | 30 | 950 | |
| Two Ball Bearings | 400 | 65 | 75 | 35 | 900 | |
| Two Ball Bearings | 415 | 90 | 100 | 35 | 1150 |
200 mm wheel550 kg / wheel
200D50CESDX6020
- Bearing Type
- Two Ball Bearings
- Wheel Ø
- 200 mm
- Wheel Width
- 50 mm
- Hub Length
- 60 mm
- Hub Bore
- 20 mm
250 mm wheel1000 kg / wheel
250D80CESDX9025
- Bearing Type
- Two Ball Bearings
- Wheel Ø
- 250 mm
- Wheel Width
- 80 mm
- Hub Length
- 90 mm
- Hub Bore
- 25 mm
300 mm wheel1000 kg / wheel
300D75CESDX8530
- Bearing Type
- Two Ball Bearings
- Wheel Ø
- 300 mm
- Wheel Width
- 75 mm
- Hub Length
- 85 mm
- Hub Bore
- 30 mm
360 mm wheel950 kg / wheel
360D75CESDX9030
- Bearing Type
- Two Ball Bearings
- Wheel Ø
- 360 mm
- Wheel Width
- 75 mm
- Hub Length
- 90 mm
- Hub Bore
- 30 mm
400 mm wheel900 kg / wheel
400D65CESDX7535
- Bearing Type
- Two Ball Bearings
- Wheel Ø
- 400 mm
- Wheel Width
- 65 mm
- Hub Length
- 75 mm
- Hub Bore
- 35 mm
415 mm wheel1150 kg / wheel
415D90CESDX10035
- Bearing Type
- Two Ball Bearings
- Wheel Ø
- 415 mm
- Wheel Width
- 90 mm
- Hub Length
- 100 mm
- Hub Bore
- 35 mm
8 models
Hub Bore is the catalogue field name. Confirm the axle fit or bearing-seat dimension on the model drawing before ordering.
04 / CHECK THE FIT
Check the Fit Before Ordering.
Compare the wheel diameter, width, hub length, bore and bearing configuration with your existing assembly or equipment drawing.
Select a model to see its dimensions
- DWheel Diameter
- —
- WWheel Width
- —
- LHub Length
- —
- dHub Bore
- —
05 / REVIEW THE WORKING CONDITIONS
Application & Operating Conditions.
Model suitability should be reviewed against the actual application. Material alone does not establish the operating limit.
01
Load & movement
Share the load per wheel, or equipment weight and wheel layout. Tell us whether the wheel is manually pushed, towed, driven or used for guidance.
02
Floor & installation
Include floor joints, slopes and obstacles, along with available axle and installation space.
03
Environment & requirements
Describe temperature, exposure time, cleaning and contact materials. Add noise, floor-marking or electrical requirements where relevant.
06 / TECHNICAL SUPPORT
Technical Documents & Specification Review.
Use the listed dimensions and model code as the starting point for your enquiry. Contact us for a drawing, material information or an agreed inspection requirement.
