Antistatic Wheels

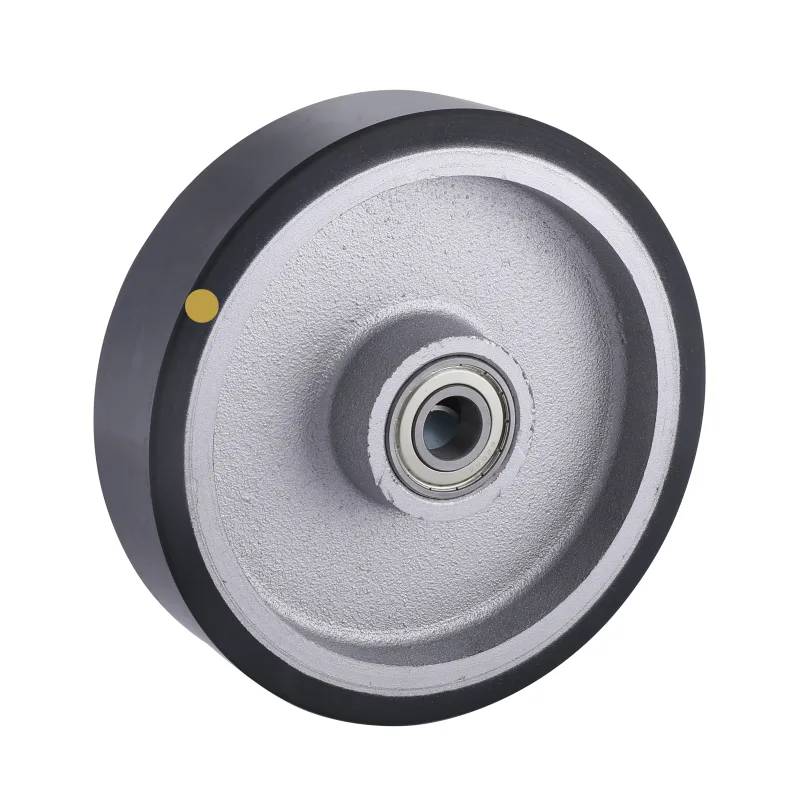

UI(AC) Series Grey Antistatic Polyurethane Wheels
UI(AC) Grey Antistatic Wheels are listed with 80-500 mm wheel diameters and 250-10000 kg catalogue loads per wheel. Compare the wheel-bearing options and exact model rows below. Check axle fit and hub dimensions against your equipment, then send the selected code, quantity and operating conditions for confirmation.
Include required quantity, wheel diameter, load per unit and operating conditions.
Product overview
Series Features and Application
Selection at a glance
UI(AC) Grey Antistatic Wheels are listed with 80-500 mm wheel diameters and 250-10000 kg catalogue loads per wheel. Compare the wheel-bearing options and exact model rows below. Check axle fit and hub dimensions against your equipment, then send the selected code, quantity and operating conditions for confirmation.
Compare actual catalogue rows
These are examples from the existing parameter tables. Values in each row belong to that code and configuration; confirm the full table for other sizes or mounting patterns.
| Configuration | Code Number | Diameter (mm) | Catalogue load per wheel (kg) | Bearing |
|---|---|---|---|---|
| Two Ball Bearing Wheels | 80D32JUI(AC)DX4015 | 80 | 250 | Two ball bearings |
| Two Ball Bearing Wheels | 500D200JUI(AC)DX200100 | 500 | 10000 | Two ball bearings |
Choose for the application
Compare antistatic wheels using a defined resistance requirement and service environment. Do not treat antistatic and conductive classifications as interchangeable.
Prepare the enquiry
- Select the complete Code Number and confirm axle fit and hub dimensions.
- Describe load, floor, movement, temperature and cleaning conditions.
- Send quantity, destination country and any required drawing or inspection specification.
Practical checks
Pro tip: State the required resistance range and applicable equipment test.
Pro tip: Check the assembled equipment on the actual floor under the expected environmental conditions.
Compare the related product series or request a model-specific quotation.
Real configurations
Configurations and Parameter Tables
Compare model code, bearing, wheel diameter, mounting dimensions, overall height and load capacity.
Available configuration
Two Ball Bearing Wheels
| Code Number |  Bearing |  Wheel Diameter(mm) |  Wheel Width(mm) |  Hub Length(mm) |  Hub Bore(mm) |  Load Capacity(kg) |
|---|---|---|---|---|---|---|
| 80D32JUI(AC)DX4015 |  Two Ball Bearing | 80 | 32 | 40 | 15 | 250 |
| 100D32JUI(AC)DX4015 | Two Ball Bearing | 100 | 32 | 40 | 15 | 350 |
| 125D38JUI(AC)DX4515 | Two Ball Bearing | 125 | 38 | 45 | 15 | 400 |
| 125D50JUI(AC)DX6020 | Two Ball Bearing | 125 | 50 | 60 | 20 | 660 |
| 140D50JUI(AC)DX6020 | Two Ball Bearing | 140 | 50 | 60 | 20 | 700 |
| 150D50JUI(AC)DX6020 | Two Ball Bearing | 150 | 50 | 60 | 20 | 800 |
| 160D50JUI(AC)DX6020 | Two Ball Bearing | 160 | 50 | 60 | 20 | 900 |
| 175D50JUI(AC)DX6020 | Two Ball Bearing | 175 | 50 | 60 | 20 | 1000 |
| 180D50JUI(AC)DX6020 | Two Ball Bearing | 180 | 50 | 60 | 20 | 1000 |
| 200D50JUI(AC)DX6020 | Two Ball Bearing | 200 | 50 | 60 | 20 | 1200 |
| 200D80JUI(AC)DX6020 | Two Ball Bearing | 200 | 80 | 90 | 30 | 1600 |
| 250D50JUI(AC)DX6025 | Two Ball Bearing | 250 | 50 | 60 | 25 | 1440 |
| 250D80JUI(AC)DX9030 | Two Ball Bearing | 250 | 80 | 90 | 30 | 1800 |
| 300D60JUI(AC)DX7030 | Two Ball Bearing | 300 | 60 | 70 | 30 | 1800 |
| 300D80JUI(AC)DX9035 | Two Ball Bearing | 300 | 80 | 90 | 35 | 2400 |
| 300D100JUI(AC)DX10535 | Two Ball Bearing | 300 | 100 | 105 | 35 | 3000 |
| 500D200JUI(AC)DX200100 | Two Ball Bearing | 500 | 200 | 200 | 100 | 10000 |
Before production
Specification Confirmation and Quality Review
Model codes and dimensional requirements are confirmed before an order. Product inspection can be arranged according to the agreed castor series and application.
