80 mm wheel200 kg / wheel
80D38JUH(AC)DX4015
Bearing Type
Two Ball Bearings
Wheel Ø- 80 mm
Wheel Width- 38 mm
Hub Length- 40 mm
Hub Bore- 15 mm
INDUSTRIAL WHEELS · POLYURETHANES
UH(AC) Series
Grey Antistatic Elastic Polyurethane Wheels
UH(AC) Grey Antistatic Elastic Polyurethane Wheels. Compare sizes, hub fit, bearings and load ratings. Request a model quote from Taishan.

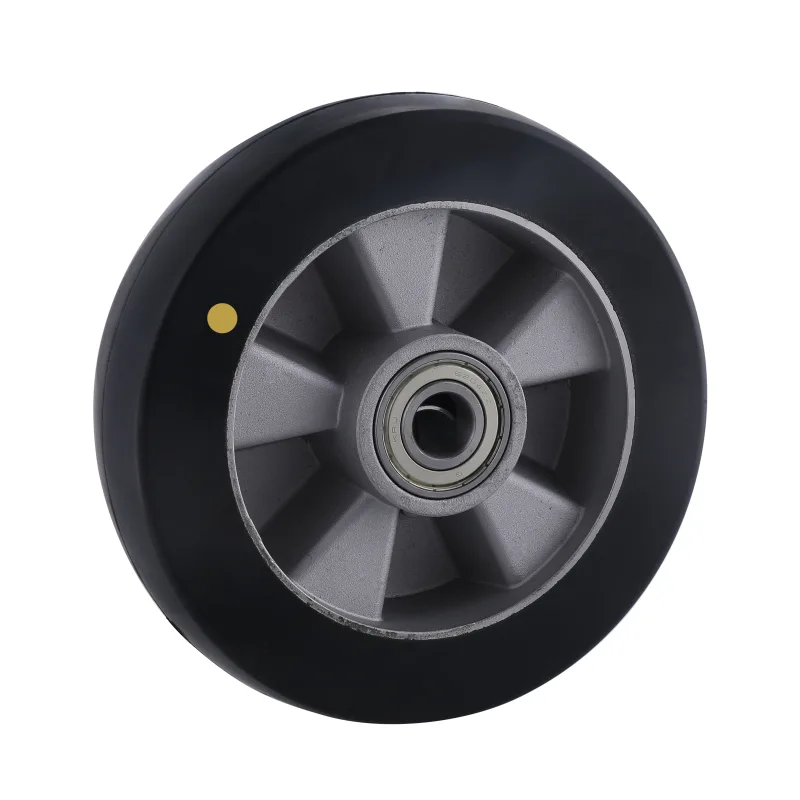

Series reference image. Sizes and bearing details vary by model.
SERIES RANGE
- Wheel diameter
- 100–200 mm
- Load per wheel
- 160–400 kg
- Bearing options
- 3
Wheel-only product. Check the axle fit, installation space and operating requirements before selection.
01 / THE WHEEL
Wheel Construction.
Review the wheel construction together with its model dimensions, bearing configuration and operating conditions.
Explore Antistatic Wheels- Tread material
- Polyurethanes
- Colour
- Grey
- Product format
- Wheel only
Need wheel-centre material, hardness or operating limits? Request the model-specific information with your enquiry.
03 / COMPARE COMPLETE MODELS
Model Codes & Specifications.
Select a model code to reference it in your enquiry. All dimensions are in mm; load is kg per wheel.
01
10 modelsTwo Ball Bearings
Scroll the table to compare all dimensions
| Code Number | Bearing Type | Wheel Ø mm | Wheel Width mm | Hub Length mm | Hub Bore mm |  Load Capacity kg / wheel |
|---|---|---|---|---|---|---|
| Two Ball Bearings | 80 | 38 | 40 | 15 | 200 | |
| Two Ball Bearings | 100 | 40 | 40 | 15 | 250 | |
| Two Ball Bearings | 125 | 40 | 50 | 15 | 300 | |
| Two Ball Bearings | 125 | 50 | 60 | 20 | 320 | |
| Two Ball Bearings | 150 | 50 | 60 | 20 | 400 | |
| Two Ball Bearings | 160 | 50 | 60 | 20 | 440 | |
| Two Ball Bearings | 180 | 50 | 60 | 20 | 500 | |
| Two Ball Bearings | 200 | 50 | 60 | 20 | 560 | |
| Two Ball Bearings | 250 | 50 | 60 | 25 | 640 | |
| Two Ball Bearings | 300 | 60 | 75 | 25 | 750 |
100 mm wheel250 kg / wheel
100D40JUH(AC)DX4015
- Bearing Type
- Two Ball Bearings
- Wheel Ø
- 100 mm
- Wheel Width
- 40 mm
- Hub Length
- 40 mm
- Hub Bore
- 15 mm
125 mm wheel300 kg / wheel
125D40JUH(AC)DX5015
- Bearing Type
- Two Ball Bearings
- Wheel Ø
- 125 mm
- Wheel Width
- 40 mm
- Hub Length
- 50 mm
- Hub Bore
- 15 mm
125 mm wheel320 kg / wheel
125D50JUH(AC)DX6020
- Bearing Type
- Two Ball Bearings
- Wheel Ø
- 125 mm
- Wheel Width
- 50 mm
- Hub Length
- 60 mm
- Hub Bore
- 20 mm
150 mm wheel400 kg / wheel
150D50JUH(AC)DX6020
- Bearing Type
- Two Ball Bearings
- Wheel Ø
- 150 mm
- Wheel Width
- 50 mm
- Hub Length
- 60 mm
- Hub Bore
- 20 mm
160 mm wheel440 kg / wheel
160D50JUH(AC)DX6020
- Bearing Type
- Two Ball Bearings
- Wheel Ø
- 160 mm
- Wheel Width
- 50 mm
- Hub Length
- 60 mm
- Hub Bore
- 20 mm
180 mm wheel500 kg / wheel
180D50JUH(AC)DX6020
- Bearing Type
- Two Ball Bearings
- Wheel Ø
- 180 mm
- Wheel Width
- 50 mm
- Hub Length
- 60 mm
- Hub Bore
- 20 mm
200 mm wheel560 kg / wheel
200D50JUH(AC)DX6020
- Bearing Type
- Two Ball Bearings
- Wheel Ø
- 200 mm
- Wheel Width
- 50 mm
- Hub Length
- 60 mm
- Hub Bore
- 20 mm
250 mm wheel640 kg / wheel
250D50JUH(AC)DX6025
- Bearing Type
- Two Ball Bearings
- Wheel Ø
- 250 mm
- Wheel Width
- 50 mm
- Hub Length
- 60 mm
- Hub Bore
- 25 mm
300 mm wheel750 kg / wheel
300D60JUH(AC)DX7525
- Bearing Type
- Two Ball Bearings
- Wheel Ø
- 300 mm
- Wheel Width
- 60 mm
- Hub Length
- 75 mm
- Hub Bore
- 25 mm
8 models
Hub Bore is the catalogue field name. Confirm the axle fit or bearing-seat dimension on the model drawing before ordering.
04 / CHECK THE FIT
Check the Fit Before Ordering.
Compare the wheel diameter, width, hub length, bore and bearing configuration with your existing assembly or equipment drawing.
Select a model to see its dimensions
- DWheel Diameter
- —
- WWheel Width
- —
- LHub Length
- —
- dHub Bore
- —
05 / REVIEW THE WORKING CONDITIONS
Application & Operating Conditions.
Model suitability should be reviewed against the actual application. Material alone does not establish the operating limit.
01
Load & movement
Share the load per wheel, or equipment weight and wheel layout. Tell us whether the wheel is manually pushed, towed, driven or used for guidance.
02
Floor & installation
Include floor joints, slopes and obstacles, along with available axle and installation space.
03
Environment & requirements
Describe temperature, exposure time, cleaning and contact materials. Add noise, floor-marking or electrical requirements where relevant.
06 / TECHNICAL SUPPORT
Technical Documents & Specification Review.
Use the listed dimensions and model code as the starting point for your enquiry. Contact us for a drawing, material information or an agreed inspection requirement.
Quality Assurance07 / CONTINUE COMPARING
Related Wheel Series.
Compare other elastic rubber series. Check each series’ own dimensions and bearing configurations.
08 / SEND YOUR REQUIREMENTS
Request a Quote for This Wheel Series.
Send your selected model codes and quantities, or describe the dimensions and operating conditions you need.
YOUR SERIESUH(AC) Series Grey Antistatic Elastic Polyurethane Wheels
No model selected. You can still request selection help.
Request: model drawing and specification review.
Send photographs or drawings by email.
