Antistatic Wheels

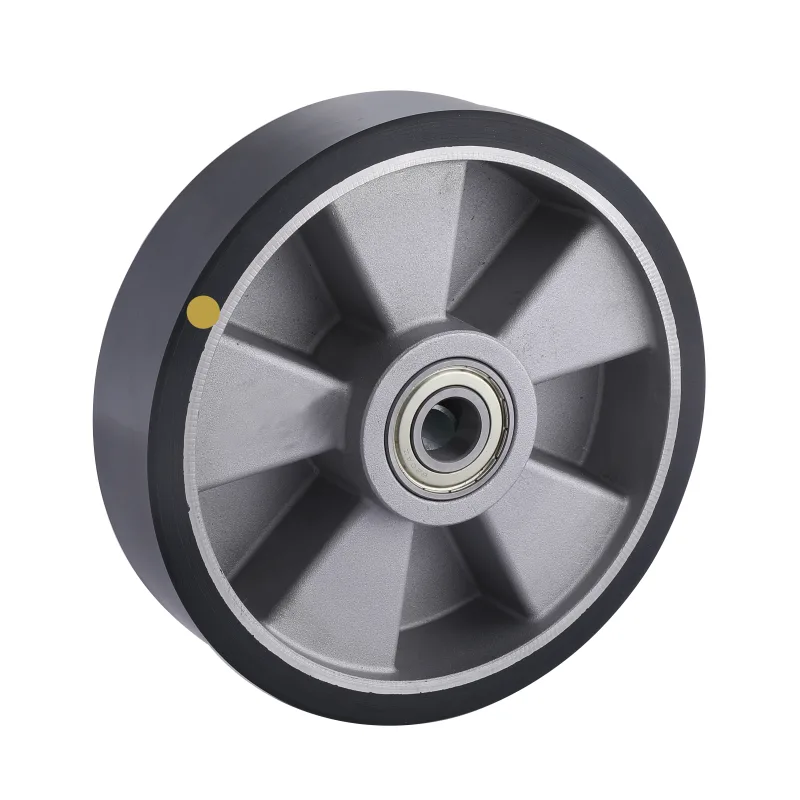

UA(AC) Series Grey Antistatic Polyurethane Wheels
Imported industrial wheel catalog data. Review bearing groups and specifications before publishing.
Include required quantity, wheel diameter, load per castor and operating conditions.
Product overview
Series Features and Application
Grey Polyurethane (PU) Industrial Wheels Specifications
Compare Two Ball Bearing Wheels for Grey Polyurethane (PU) Industrial Wheels, including 100-250 mm wheel diameters and 300-1000 kg rated loads. Review model codes and request a factory quotation.
Selection information
Confirm the required quantity, load per castor, wheel diameter, mounting, floor, speed and operating environment before ordering. Use the specification tables and model codes when requesting a quotation.
Real configurations
Bracket Types and Parameter Tables
Compare model code, bearing, wheel diameter, mounting dimensions, overall height and load capacity.
Available configuration
Two Ball Bearing Wheels
| Code Number |  Bearing |  Wheel Diameter(mm) |  Wheel Width(mm) |  Hub Length(mm) |  Hub Bore(mm) |  Load Capacity(kg) |
|---|---|---|---|---|---|---|
| 100D38JUA(AC)DX4015 |  Two Ball Bearing | 100 | 38 | 40 | 15 | 300 |
| 125D38JUA(AC)DX5015 | Two Ball Bearing | 125 | 38 | 50 | 15 | 350 |
| 125D40JUA(AC)DX5020 | Two Ball Bearing | 125 | 40 | 50 | 20 | 450 |
| 125D50JUA(AC)DX6020 | Two Ball Bearing | 125 | 50 | 60 | 20 | 500 |
| 150D50JUA(AC)DX6020 | Two Ball Bearing | 150 | 50 | 60 | 20 | 650 |
| 160D50JUA(AC)DX6020 | Two Ball Bearing | 160 | 50 | 60 | 20 | 800 |
| 200D50JUA(AC)DX6020 | Two Ball Bearing | 200 | 50 | 60 | 20 | 800 |
| 250D60JUA(AC)DX7525 | Two Ball Bearing | 250 | 60 | 75 | 25 | 1000 |
Before production
Specification Confirmation and Quality Review
Model codes and dimensional requirements are confirmed before an order. Product inspection can be arranged according to the agreed castor series and application.
Product inquiry
Request a Quote for This Castor Series
Select one or more bracket types and specification rows. Your inquiry automatically includes this product page and model information.
Send Product Requirements
Send your castor requirements. We will reply with product options, specifications and quotation details.
