Thermoplastic Rubber (TPR) Industrial Castors

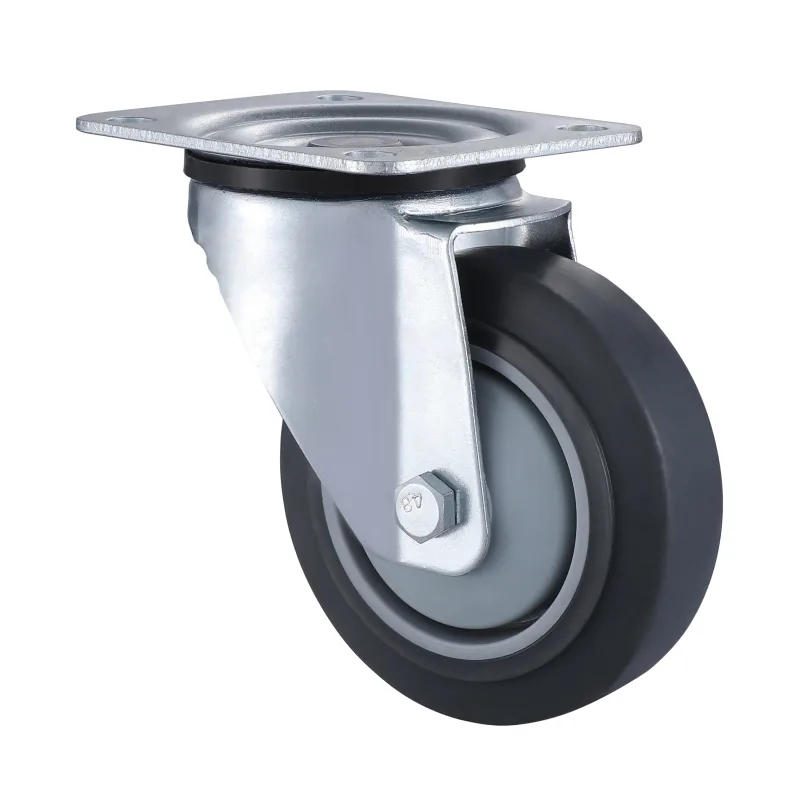

07 Series Industrial Castors with TE Series Grey Thermoplastic Rubber Wheel
07 TE Grey TPR Castors are listed with 80-125 mm wheel diameters and 90-150 kg catalogue loads per castor. Compare the bracket configurations and exact model rows below. Check mounting dimensions and clearances against your equipment, then send the selected code, quantity and operating conditions for confirmation.
Include required quantity, wheel diameter, load per unit and operating conditions.
Product overview
Series Features and Application
Selection at a glance
07 TE Grey TPR Castors are listed with 80-125 mm wheel diameters and 90-150 kg catalogue loads per castor. Compare the bracket configurations and exact model rows below. Check mounting dimensions and clearances against your equipment, then send the selected code, quantity and operating conditions for confirmation.
Compare actual catalogue rows
These are examples from the existing parameter tables. Values in each row belong to that code and configuration; confirm the full table for other sizes or mounting patterns.
| Configuration | Code Number | Diameter (mm) | Catalogue load per castor (kg) | Bearing |
|---|---|---|---|---|
| Swivel Castors | 07P1S80D32DTEBA4208 | 80 | 90 | Single ball bearing |
| Swivel Castors with Total Brakes | 07P1TB80D32DTEBA4208 | 80 | 90 | Single ball bearing |
| Fixed Castors | 07P1F80D32DTEBA4208 | 80 | 90 | Single ball bearing |
| Bolt Hole Castors | 07H1S80D32DTEBA4208 | 80 | 90 | Single ball bearing |
| Bolt Hole Castors with Total Brakes | 07H1TB80D32DTEBA4208 | 80 | 90 | Single ball bearing |
Choose for the application
Compare thermoplastic rubber for indoor equipment where tread compliance and floor contact matter. A TPR material name does not establish identical noise, marking or chemical performance across series.
Prepare the enquiry
- Select the complete Code Number and confirm mounting dimensions and clearances.
- Describe load, floor, movement, temperature and cleaning conditions.
- Send quantity, destination country and any required drawing or inspection specification.
Practical checks
Pro tip: Review the actual compound and load for the floor finish.
Pro tip: Check bearing and hub dimensions when comparing apparently similar wheels.
Compare the related product series or request a model-specific quotation.
Real configurations
Configurations and Parameter Tables
Compare model code, bearing, wheel diameter, mounting dimensions, overall height and load capacity.
Available configuration
Swivel Castors
| Code Number |  Bearing |   Wheel diameter x Width of Thread(mm) |  Plate Size(mm) |  Plate Hole Centers(mm) |  Plate Hole(mm) |  Offset(mm) |  Overall Height(mm) |  Load Capacity(kg) |
|---|---|---|---|---|---|---|---|---|
| 07P1S80D32DTEBA4208 |  Single Ball Bearing | 80X32 | 105x80 | 80x60 | 11x9 | 36 | 100 | 90 |
| 07P1S80D32DTERX4012 |  Roller Bearing | 80X32 | 105x80 | 80x60 | 11x9 | 36 | 100 | 90 |
| 07P1S100D32DTEBA4208 | Single Ball Bearing | 100X32 | 105x80 | 80x60 | 11x9 | 36 | 125 | 100 |
| 07P1S100D32DTERX4012 | Roller Bearing | 100X32 | 105x80 | 80x60 | 11x9 | 36 | 125 | 100 |
| 07P1S125D40DTEBA5210 | Single Ball Bearing | 125X40 | 105x80 | 80x60 | 11x9 | 40 | 155 | 150 |
| 07P1S125D40DTERX5015 | Roller Bearing | 125X40 | 105x80 | 80x60 | 11x9 | 40 | 155 | 150 |
Available configuration
Swivel Castors with Total Brakes
| Code Number | Bearing | Wheel diameter x Width of Thread(mm) | Plate Size(mm) | Plate Hole Centers(mm) | Plate Hole(mm) | Offset(mm) | Overall Height(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|---|---|
| 07P1TB80D32DTEBA4208 | Single Ball Bearing | 80X32 | 105x80 | 80x60 | 11x9 | 36 | 100 | 90 |
| 07P1TB80D32DTERX4012 | Roller Bearing | 80X32 | 105x80 | 80x60 | 11x9 | 36 | 100 | 90 |
| 07P1TB100D32DTEBA4208 | Single Ball Bearing | 100X32 | 105x80 | 80x60 | 11x9 | 40 | 125 | 100 |
| 07P1TB100D32DTERX4012 | Roller Bearing | 100X32 | 105x80 | 80x60 | 11x9 | 40 | 125 | 100 |
| 07P1TB125D40DTEBA5210 | Single Ball Bearing | 125X40 | 105x80 | 80x60 | 11x9 | 40 | 155 | 150 |
| 07P1TB125D40DTERX5015 | Roller Bearing | 125X40 | 105x80 | 80x60 | 11x9 | 40 | 155 | 150 |
Available configuration
Fixed Castors
| Code Number | Bearing | Wheel diameter x Width of Thread(mm) | Plate Size(mm) | Plate Hole Centers(mm) | Plate Hole(mm) | Offset(mm) | Overall Height(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|---|---|
| 07P1F80D32DTEBA4208 | Single Ball Bearing | 80X32 | 102X87 | 80x60 | 11x9 | 100 | 90 | |
| 07P1F80D32DTERX4012 | Roller Bearing | 80X32 | 102X87 | 80x60 | 11x9 | 100 | 90 | |
| 07P1F100D32DTEBA4208 | Single Ball Bearing | 100X32 | 102X87 | 80x60 | 11x9 | 125 | 100 | |
| 07P1F100D32DTERX4012 | Roller Bearing | 100X32 | 102X87 | 80x60 | 11x9 | 125 | 100 | |
| 07P1F125D40DTEBA5210 | Single Ball Bearing | 125X40 | 102X87 | 80x60 | 11x9 | 155 | 150 | |
| 07P1F125D40DTERX5015 | Roller Bearing | 125X40 | 102X87 | 80x60 | 11x9 | 155 | 150 |
Available configuration
Bolt Hole Castors
| Code Number | Bearing | Wheel diameter x Width of Thread(mm) | Offset(mm) | Plate Hole(mm) | Overall Height(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|
| 07H1S80D32DTEBA4208 | Single Ball Bearing | 80X32 | 36 | ф13 | 99 | 90 |
| 07H1S80D32DTERX4012 | Roller Bearing | 80X32 | 36 | ф13 | 99 | 90 |
| 07H1S100D32DTEBA4208 | Single Ball Bearing | 100X32 | 36 | ф13 | 124 | 120 |
| 07H1S100D32DTERX4012 | Roller Bearing | 100X32 | 36 | ф13 | 124 | 120 |
| 07H1S125D40DTEBA5210 | Single Ball Bearing | 125X40 | 36 | ф13 | 154 | 150 |
| 07H1S125D40DTERX5015 | Roller Bearing | 125X40 | 36 | ф13 | 154 | 150 |
Available configuration
Bolt Hole Castors with Total Brakes
| Code Number | Bearing | Wheel diameter x Width of Thread(mm) | Offset(mm) | Plate Hole(mm) | Overall Height(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|
| 07H1TB80D32DTEBA4208 | Single Ball Bearing | 80X32 | 36 | ф13 | 99 | 90 |
| 07H1TB80D32DTERX4012 | Roller Bearing | 80X32 | 36 | ф13 | 99 | 90 |
| 07H1TB100D32DTEBA4208 | Single Ball Bearing | 100X32 | 40 | ф13 | 124 | 120 |
| 07H1TB100D32DTERX4012 | Roller Bearing | 100X32 | 40 | ф13 | 124 | 120 |
| 07H1TB125D40DTEBA5210 | Single Ball Bearing | 125X40 | 40 | ф13 | 154 | 150 |
| 07H1TB125D40DTERX5015 | Roller Bearing | 125X40 | 40 | ф13 | 154 | 150 |
Before production
Specification Confirmation and Quality Review
Model codes and dimensional requirements are confirmed before an order. Product inspection can be arranged according to the agreed castor series and application.
