Mounting footprint
Match the plate size, hole centres and mounting hole to the dimensions listed for your chosen model.
07 / BM SERIESSolid Rubber wheel
SELECTED CONFIGURATIONSwivel plate

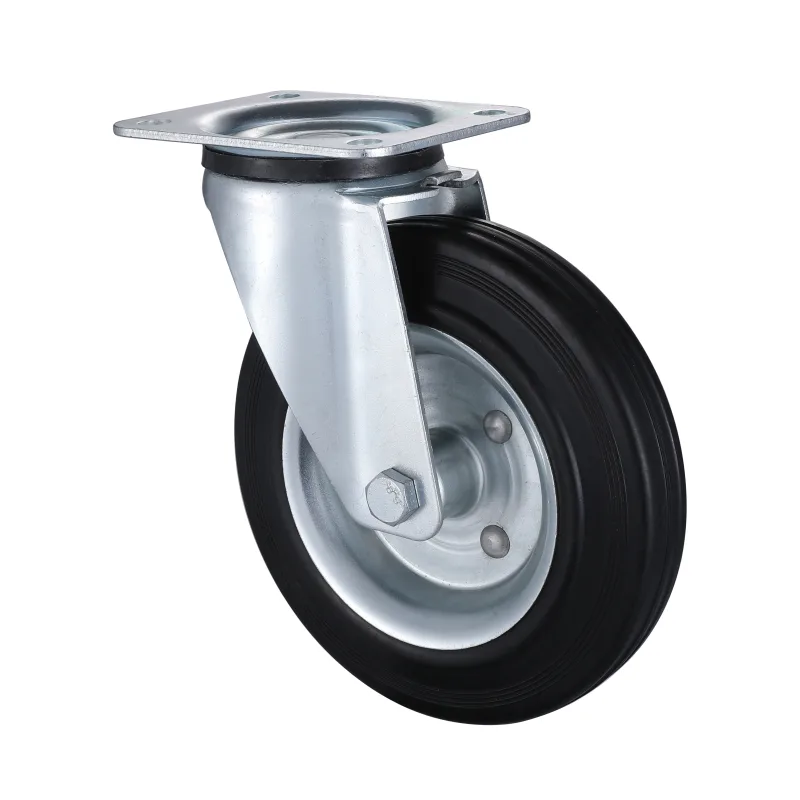

Configuration photographTAISHAN · 07 / BM SERIES
07 Series Industrial Castors with BM Series Black Solid Rubber Wheel
07/BM Black Solid Rubber Industrial Castors. Compare fixing options, dimensions and load ratings. Request a model quote from Taishan.
- Load per castor
- 50–295 kg
- Wheel diameter
- 80–250 mm
- Configurations
- 5 options
Your selected model07P1S160C40JBMRX6020
- Load
- 135 kg
- Overall height
- 190 mm
Compare every fixing and model in the parameter tables below
01 / THE 07 / BM SERIES
The wheel you need.
The fixing that fits.
Compare solid rubber for general trolley duties where resilient floor contact is useful. Rubber compounds differ in hardness, marking and environmental compatibility.
- Wheel material
- Solid Rubber
- Bearing
- Roller bearing
- Fixing options
- Swivel plate / Total brake plate / Fixed plate / Bolt hole swivel / Bolt hole + brake
02 / CONFIGURATIONS & DIMENSIONS
Every fixing.
Its own specification.
5 configurations. 27 model codes.
Compare the dimensions for your mounting position.
01
Quote this configuration Swivel plate
For equipment that needs to turn and manoeuvre.
| Model code | Bearing | Wheel Ø × width | Plate size | Hole centres | Mounting hole | Offset | Overall height | Load kg |
|---|---|---|---|---|---|---|---|---|
 Roller bearing | 80 × 30 | 105 × 80 | 80 × 60 | 11 × 9 | 36 | 100 | 50 | |
| Roller bearing | 100 × 30 | 105 × 80 | 80 × 60 | 11 × 9 | 36 | 125 | 70 | |
| Roller bearing | 125 × 37.5 | 105 × 80 | 80 × 60 | 11 × 9 | 36 | 155 | 100 | |
| Roller bearing | 160 × 40 | 135 × 110 | 105 × 80 | 13.5 × 11 | 52 | 190 | 135 | |
| Roller bearing | 200 × 50 | 135 × 110 | 105 × 80 | 13.5 × 11 | 54 | 235 | 205 | |
| Roller bearing | 250 × 60 | 135 × 110 | 105 × 80 | 13.5 × 11 | 66 | 290 | 295 |
02
Quote this configuration Total brake plate
Compare the brake configuration and allow clearance for the pedal.
| Model code | Bearing | Wheel Ø × width | Plate size | Hole centres | Mounting hole | Offset | Overall height | Load kg |
|---|---|---|---|---|---|---|---|---|
| Roller bearing | 80 × 30 | 105 × 80 | 80 × 60 | 11 × 9 | 36 | 100 | 50 | |
| Roller bearing | 100 × 30 | 105 × 80 | 80 × 60 | 11 × 9 | 40 | 125 | 70 | |
| Roller bearing | 125 × 37.5 | 105 × 80 | 80 × 60 | 11 × 9 | 40 | 155 | 100 | |
| Roller bearing | 160 × 40 | 135 × 110 | 105 × 80 | 13.5 × 11 | 60 | 190 | 135 | |
| Roller bearing | 200 × 50 | 135 × 110 | 105 × 80 | 13.5 × 11 | 60 | 235 | 205 |
03
Quote this configuration Fixed plate
A fixed bracket for a straight-running position.
| Model code | Bearing | Wheel Ø × width | Plate size | Hole centres | Mounting hole | Offset | Overall height | Load kg |
|---|---|---|---|---|---|---|---|---|
| Roller bearing | 80 × 30 | 102 × 87 | 80 × 60 | 11 × 9 | — | 100 | 50 | |
| Roller bearing | 100 × 30 | 102 × 87 | 80 × 60 | 11 × 9 | — | 125 | 70 | |
| Roller bearing | 125 × 37.5 | 102 × 87 | 80 × 60 | 11 × 9 | — | 155 | 100 | |
| Roller bearing | 160 × 40 | 135 × 114 | 105 × 80 | 13.5 × 11 | — | 190 | 135 | |
| Roller bearing | 200 × 50 | 135 × 114 | 105 × 80 | 13.5 × 11 | — | 235 | 205 | |
| Roller bearing | 250 × 60 | 135 × 114 | 105 × 80 | 13.5 × 11 | — | 290 | 295 |
04
Quote this configuration Bolt hole swivel
Bolt-hole mounting. Check the mounting hole and overall height.
| Model code | Bearing | Wheel Ø × width | Plate size | Hole centres | Mounting hole | Offset | Overall height | Load kg |
|---|---|---|---|---|---|---|---|---|
| Roller bearing | 80 × 30 | — | — | ф13 | 36 | 99 | 50 | |
| Roller bearing | 100 × 30 | — | — | ф13 | 36 | 124 | 70 | |
| Roller bearing | 125 × 37.5 | — | — | ф13 | 36 | 154 | 100 | |
| Roller bearing | 160 × 40 | — | — | ф16.8 | 52 | 185 | 135 | |
| Roller bearing | 200 × 50 | — | — | ф16.8 | 54 | 230 | 205 |
05
Quote this configuration Bolt hole + brake
Bolt-hole mounting with a total-brake configuration.
| Model code | Bearing | Wheel Ø × width | Plate size | Hole centres | Mounting hole | Offset | Overall height | Load kg |
|---|---|---|---|---|---|---|---|---|
| Roller bearing | 80 × 30 | — | — | ф13 | 36 | 99 | 50 | |
| Roller bearing | 100 × 30 | — | — | ф13 | 40 | 124 | 70 | |
| Roller bearing | 125 × 37.5 | — | — | ф13 | 40 | 154 | 100 | |
| Roller bearing | 160 × 40 | — | — | ф16.8 | 60 | 185 | 135 | |
| Roller bearing | 200 × 50 | — | — | ф16.8 | 60 | 230 | 205 |
Dimensions are in millimetres. Loads are catalogue values per castor. Confirm the model, mounting dimensions and operating conditions with our team.
03 / BEFORE YOU SPECIFY
Check the fit.
Confirm the application.
Bracket clearance
Check the overall height and swivel offset, including clearance for a brake pedal where applicable.
Operating conditions
Share equipment weight, castor quantity, floor condition and movement method. We’ll help confirm the model for your application.
YOUR CASTOR MANUFACTURER
Made by Taishan.
Specified with you.
Send the model code, quantity and application directly to our manufacturing team. We’ll review the mounting requirements and discuss samples or OEM requirements with you.
2006Manufacturing since
ISO 9001Quality management
PRODUCT QUESTIONS
Before you order.
Which configurations are available?
Swivel plate, Total brake plate, Fixed plate. Each has its own model codes and parameter table above.
What should I check when replacing a castor?
Compare wheel diameter, tread width, mounting plate or hole, overall height, bearing and clearance. Match the complete model row to your equipment, then confirm the operating conditions with us.
What information is needed for a factory quote?
Send your model code or application, quantity and delivery country. Include equipment weight, castor quantity and any drawing or inspection requirements.
