Polyurethane (PU) Industrial Castors

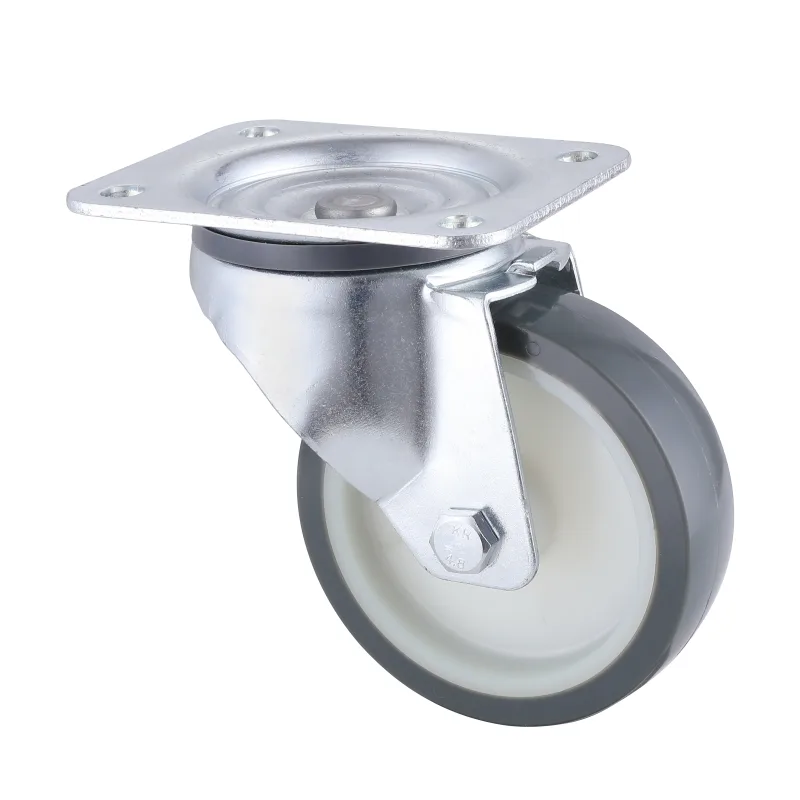

06 Series Industrial Castors with UP Series Grey Thermoplastic Polyurethane Wheel
06 UP Grey Polyurethane Castors are listed with 100-125 mm wheel diameters and 160-250 kg catalogue loads per castor. Compare the bracket configurations and exact model rows below. Check mounting dimensions and clearances against your equipment, then send the selected code, quantity and operating conditions for confirmation.
Include required quantity, wheel diameter, load per unit and operating conditions.
Product overview
Series Features and Application
Selection at a glance
06 UP Grey Polyurethane Castors are listed with 100-125 mm wheel diameters and 160-250 kg catalogue loads per castor. Compare the bracket configurations and exact model rows below. Check mounting dimensions and clearances against your equipment, then send the selected code, quantity and operating conditions for confirmation.
Compare actual catalogue rows
These are examples from the existing parameter tables. Values in each row belong to that code and configuration; confirm the full table for other sizes or mounting patterns.
| Configuration | Code Number | Diameter (mm) | Catalogue load per castor (kg) | Bearing |
|---|---|---|---|---|
| Swivel Castors | 06P1S100D34BUPBA5208 | 100 | 160 | Single ball bearing |
| Swivel Castors with Total Brakes | 06P1TB100D34BUPBA5208 | 100 | 160 | Single ball bearing |
| Fixed Castors | 06P1F100D34BUPBA5208 | 100 | 160 | Single ball bearing |
Choose for the application
Compare polyurethane by tread construction, hardness and hub design, not colour alone. Different polyurethane formulations can behave differently under water, heat and repeated loading.
Prepare the enquiry
- Select the complete Code Number and confirm mounting dimensions and clearances.
- Describe load, floor, movement, temperature and cleaning conditions.
- Send quantity, destination country and any required drawing or inspection specification.
Practical checks
Pro tip: Supply the cleaning and temperature cycle with the enquiry.
Pro tip: Compare the code-specific hub, bearing and load rather than assuming every PU wheel is equivalent.
Compare the related product series or request a model-specific quotation.
Real configurations
Configurations and Parameter Tables
Compare model code, bearing, wheel diameter, mounting dimensions, overall height and load capacity.
Available configuration
Swivel Castors
| Code Number |  Bearing |   Wheel diameter x Width of Thread(mm) |  Plate Size(mm) |  Plate Hole Centers(mm) |  Plate Hole(mm) |  Offset(mm) |  Overall Height(mm) |  Load Capacity(kg) |
|---|---|---|---|---|---|---|---|---|
| 06P1S100D34BUPBA5208 |  Single Ball Bearing | 100X34 | 135x110 | 105x80 | 13.5x11 | 45 | 128 | 160 |
| 06P1S125D36BUPRX5015 |  Roller Bearing | 125X36 | 135x110 | 105x80 | 13.5x11 | 48 | 155 | 250 |
| 06P1S125D36BUPBA5210 | Single Ball Bearing | 125X36 | 135x110 | 105x80 | 13.5x11 | 48 | 155 | 250 |
Available configuration
Swivel Castors with Total Brakes
| Code Number | Bearing | Wheel diameter x Width of Thread(mm) | Plate Size(mm) | Plate Hole Centers(mm) | Plate Hole(mm) | Offset(mm) | Overall Height(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|---|---|
| 06P1TB100D34BUPBA5208 | Single Ball Bearing | 100X34 | 135x110 | 105x80 | 13.5x11 | 42 | 128 | 160 |
| 06P1TB125D36BUPRX5015 | Roller Bearing | 125X36 | 135x110 | 105x80 | 13.5x11 | 48 | 155 | 250 |
| 06P1TB125D36BUPBA5210 | Single Ball Bearing | 125X36 | 135x110 | 105x80 | 13.5x11 | 48 | 155 | 250 |
Available configuration
Fixed Castors
| Code Number | Bearing | Wheel diameter x Width of Thread(mm) | Plate Size(mm) | Plate Hole Centers(mm) | Plate Hole(mm) | Offset(mm) | Overall Height(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|---|---|
| 06P1F100D34BUPBA5208 | Single Ball Bearing | 100X34 | 135x114 | 105x80 | 13.5x11 | 128 | 160 | |
| 06P1F125D36BUPRX5015 | Roller Bearing | 125X36 | 135x114 | 105x80 | 13.5x11 | 155 | 250 | |
| 06P1F125D36BUPBA5210 | Single Ball Bearing | 125X36 | 135x114 | 105x80 | 13.5x11 | 155 | 250 |
Before production
Specification Confirmation and Quality Review
Model codes and dimensional requirements are confirmed before an order. Product inspection can be arranged according to the agreed castor series and application.
