Pneumatic Rubber Industrial Castors

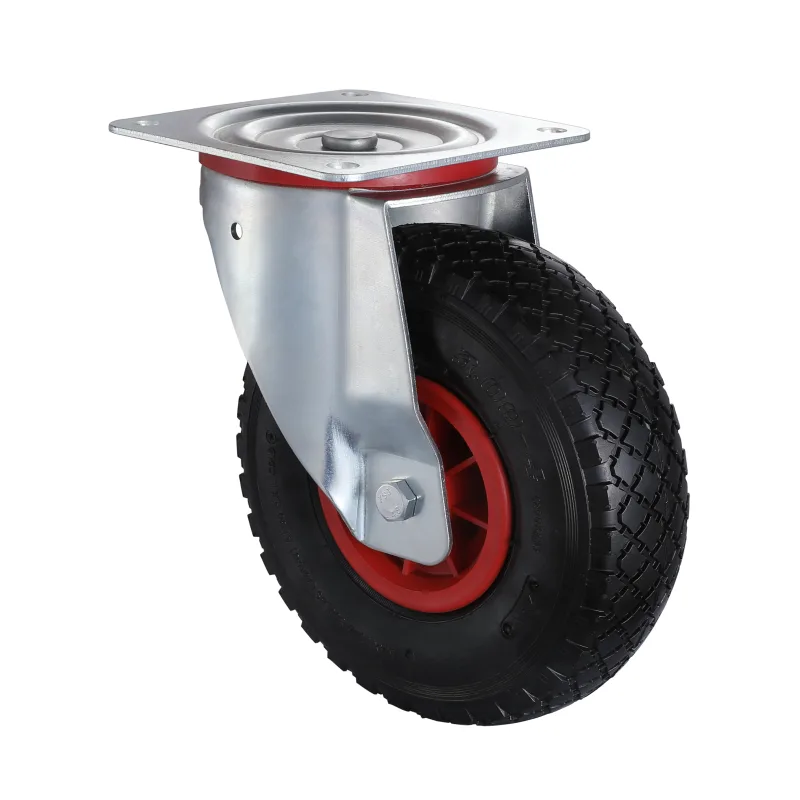

07/08 Series Industrial Castors with FP Series Black Pneumatic Rubber Wheel
07/08 FP Black Pneumatic Rubber Castors are listed with 200-260 mm wheel diameters and 75-150 kg catalogue loads per castor. Compare the bracket configurations and exact model rows below. Check mounting dimensions and clearances against your equipment, then send the selected code, quantity and operating conditions for confirmation.
Include required quantity, wheel diameter, load per unit and operating conditions.
Product overview
Series Features and Application
Selection at a glance
07/08 FP Black Pneumatic Rubber Castors are listed with 200-260 mm wheel diameters and 75-150 kg catalogue loads per castor. Compare the bracket configurations and exact model rows below. Check mounting dimensions and clearances against your equipment, then send the selected code, quantity and operating conditions for confirmation.
Compare actual catalogue rows
These are examples from the existing parameter tables. Values in each row belong to that code and configuration; confirm the full table for other sizes or mounting patterns.
| Configuration | Code Number | Diameter (mm) | Catalogue load per castor (kg) | Bearing |
|---|---|---|---|---|
| Swivel Castors | 07P1S200C50FFPRX5820 | 200 | 75 | Roller bearing |
| Fixed Castors | 07P1F200C50FFPRX5820 | 200 | 75 | Roller bearing |
| Swivel Castors with Tail Brakes | 07P1FB200C50FFPRX5820 | 200 | 75 | Roller bearing |
| Top Plate Swivel Castors | 07P1TB200C50FFPRX5820 | 200 | 75 | Roller bearing |
Choose for the application
Compare pneumatic wheels where the route calls for an air-filled tyre construction. Tyre pressure, puncture exposure and dimensional clearance require maintenance planning.
Prepare the enquiry
- Select the complete Code Number and confirm mounting dimensions and clearances.
- Describe load, floor, movement, temperature and cleaning conditions.
- Send quantity, destination country and any required drawing or inspection specification.
Practical checks
Pro tip: Request the tyre pressure specified for the exact model.
Pro tip: Check tyre clearance under load and when steering.
Compare the related product series or request a model-specific quotation.
Real configurations
Configurations and Parameter Tables
Compare model code, bearing, wheel diameter, mounting dimensions, overall height and load capacity.
Available configuration
Swivel Castors
| Code Number |  Bearing |   Wheel diameter x Width of Thread(mm) |  Plate Size(mm) |  Plate Hole Centers(mm) |  Plate Hole(mm) |  Offset(mm) |  Overall Height(mm) |  Load Capacity(kg) |
|---|---|---|---|---|---|---|---|---|
| 07P1S200C50FFPRX5820 |  Roller Bearing | 200X50 | 135x110 | 105x80 | 13.5x11 | 54 | 235 | 75 |
| 08P1S250C60FFPRX7520 | Roller Bearing | 260X85 | 175X175 | 140X140 | 15X15 | 70 | 295 | 150 |
| 08P1S250C60FFPDX7520 |  Two Ball Bearing | 260X85 | 175X175 | 140X140 | 15X15 | 70 | 295 | 150 |
Available configuration
Fixed Castors
| Code Number | Bearing | Wheel diameter x Width of Thread(mm) | Plate Size(mm) | Plate Hole Centers(mm) | Plate Hole(mm) | Offset(mm) | Overall Height(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|---|---|
| 07P1F200C50FFPRX5820 | Roller Bearing | 200X50 | 135x114 | 105X80 | 13.5X11 | 235 | 75 | |
| 08P1F250C60FFPRX7520 | Roller Bearing | 260X85 | 230X130 | 190X75 | 14.5X14.5 | 295 | 150 | |
| 08P1F250C60FFPDX7520 | Two Ball Bearing | 260X85 | 230X130 | 190X75 | 14.5X14.5 | 295 | 150 |
Available configuration
Swivel Castors with Tail Brakes
| Code Number | Bearing | Wheel diameter x Width of Thread(mm) | Plate Size(mm) | Plate Hole Centers(mm) | Plate Hole(mm) | Offset(mm) | Overall Height(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|---|---|
| 07P1FB200C50FFPRX5820 | Roller Bearing | 200X50 | 135x110 | 105x80 | 13.5x11 | 54 | 235 | 75 |
| 08P1FB250C60FFPRX7520 | Roller Bearing | 260X85 | 175X175 | 140X140 | 15X15 | 70 | 295 | 150 |
| 08P1FB250C60FFPDX7520 | Two Ball Bearing | 260X85 | 175X175 | 140X140 | 15X15 | 70 | 295 | 150 |
Available configuration
Top Plate Swivel Castors
| Code Number | Bearing | Wheel diameter x Width of Thread(mm) | Size of Plate(mm) | Plate Hole Centres(mm) | Plate Hole(mm) | Offset(mm) | Overall Height(mm) | Load capacity(kg) |
|---|---|---|---|---|---|---|---|---|
| 07P1TB200C50FFPRX5820 | Roller Bearing | 200X50 | 135x110 | 105x80 | 13.5x11 | 60 | 235 | 75 |
Before production
Specification Confirmation and Quality Review
Model codes and dimensional requirements are confirmed before an order. Product inspection can be arranged according to the agreed castor series and application.
