Nylon (Polyamide/PA) Industrial Castors
06 Series Industrial Castors with PA Series White Polyamide Wheel
Compare Swivel Castors, Swivel Castors with Total Brakes, and Fixed Castors for 06 Series PA White Nylon (PA) Industrial Castors, including 200-300 kg rated loads. Review model codes and request a factory quotation.
Include required quantity, wheel diameter, load per castor and operating conditions.
Product overview
Series Features and Application
06 Series PA White Nylon (PA) Industrial Castors Specifications
Compare Swivel Castors, Swivel Castors with Total Brakes, and Fixed Castors for 06 Series PA White Nylon (PA) Industrial Castors, including 200-300 kg rated loads. Review model codes and request a factory quotation.
Selection information
Confirm the required quantity, load per castor, wheel diameter, mounting, floor, speed and operating environment before ordering. Use the specification tables and model codes when requesting a quotation.
Real configurations
Bracket Types and Parameter Tables
Compare model code, bearing, wheel diameter, mounting dimensions, overall height and load capacity.
Available configuration

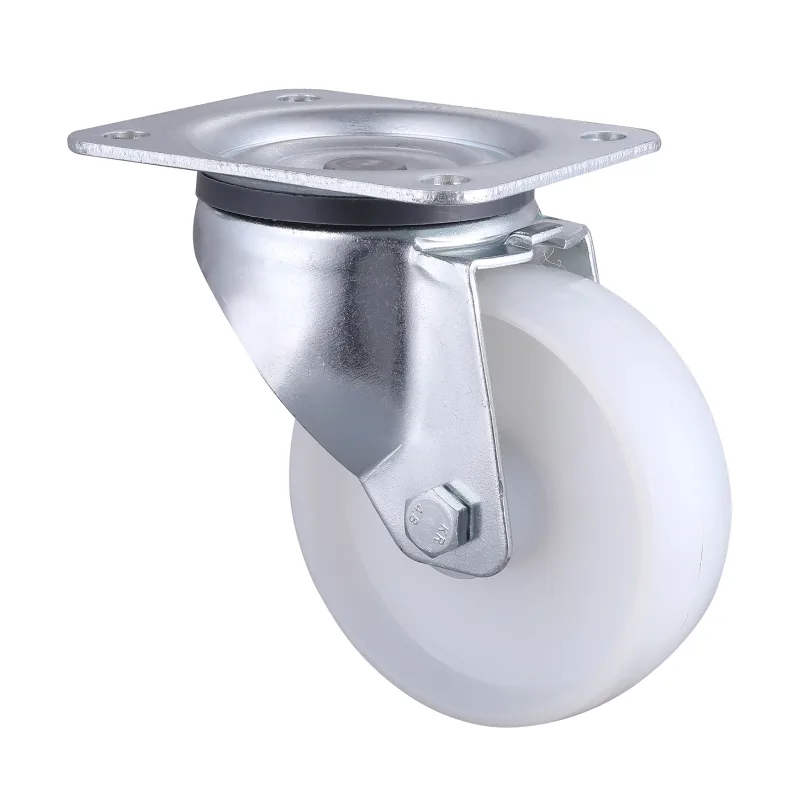

Swivel Castors
| Code Number |  Bearing |  Wheel Diameter(mm) |  Plate Size(mm) |  Plate Hole Centers(mm) |  Plate Hole(mm) |  Offset(mm) |  Overall Height(mm) |  Load Capacity(kg) |
|---|---|---|---|---|---|---|---|---|
| 06P1S100B36BPAPX5012 |  Plain Bore | 100X36 | 135x110 | 105x80 | 13.5x11 | 45 | 128 | 200 |
| 06P1S100B36BPARX5012 |  Roller Bearing | 100X36 | 135x110 | 105x80 | 13.5x11 | 45 | 128 | 200 |
| 06P1S100B36BPABA5208 |  Single Ball Bearing | 100X36 | 135x110 | 105x80 | 13.5x11 | 45 | 128 | 200 |
| 06P1S125B40BPAPX5015 | Plain Bore | 125X40 | 135x110 | 105x80 | 13.5x11 | 48 | 155 | 300 |
| 06P1S125B40BPARX5015 | Roller Bearing | 125X40 | 135x110 | 105x80 | 13.5x11 | 48 | 155 | 300 |
| 06P1S125B40BPABA5210 | Single Ball Bearing | 125X40 | 135x110 | 105x80 | 13.5x11 | 48 | 155 | 300 |
Available configuration

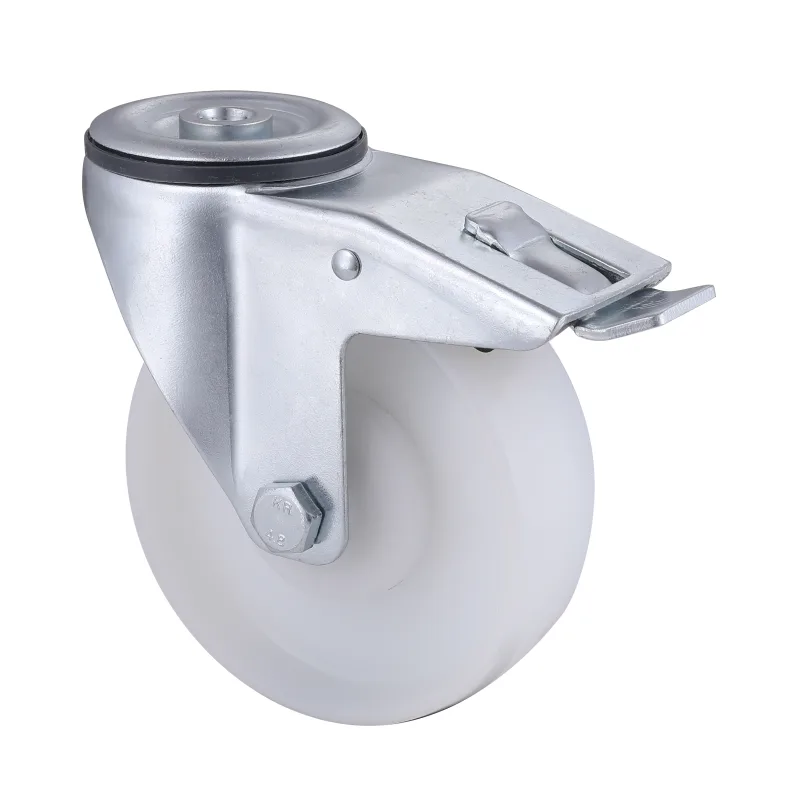

Swivel Castors with Total Brakes
| Code Number | Bearing | Wheel Diameter(mm) | Plate Size(mm) | Plate Hole Centers(mm) | Plate Hole(mm) | Offset(mm) | Overall Height(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|---|---|
| 06P1TB100B36BPAPX5012 | Plain Bore | 100X36 | 135x110 | 105x80 | 13.5x11 | 42 | 128 | 200 |
| 06P1TB100B36BPARX5012 | Roller Bearing | 100X36 | 135x110 | 105x80 | 13.5x11 | 42 | 128 | 200 |
| 06P1TB100B36BPABA5208 | Single Ball Bearing | 100X36 | 135x110 | 105x80 | 13.5x11 | 42 | 128 | 200 |
| 06P1TB125B40BPAPX5015 | Plain Bore | 125X40 | 135x110 | 105x80 | 13.5x11 | 48 | 155 | 300 |
| 06P1TB125B40BPARX5015 | Roller Bearing | 125X40 | 135x110 | 105x80 | 13.5x11 | 48 | 155 | 300 |
| 06P1TB125B40BPABA5210 | Single Ball Bearing | 125X40 | 135x110 | 105x80 | 13.5x11 | 48 | 155 | 300 |
Available configuration
Fixed Castors
| Code Number | Bearing | Wheel Diameter(mm) | Plate Size(mm) | Plate Hole Centers(mm) | Plate Hole(mm) | Offset(mm) | Overall Height(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|---|---|
| 06P1F100B36BPAPX5012 | Plain Bore | 100X36 | 135x114 | 105x80 | 13.5x11 | 128 | 200 | |
| 06P1F100B36BPARX5012 | Roller Bearing | 100X36 | 135x114 | 105x80 | 13.5x11 | 128 | 200 | |
| 06P1F100B36BPABA5208 | Single Ball Bearing | 100X36 | 135x114 | 105x80 | 13.5x11 | 128 | 200 | |
| 06P1F125B40BPAPX5015 | Plain Bore | 125X40 | 135x114 | 105x80 | 13.5x11 | 155 | 300 | |
| 06P1F125B40BPARX5015 | Roller Bearing | 125X40 | 135x114 | 105x80 | 13.5x11 | 155 | 300 | |
| 06P1F125B40BPABA5210 | Single Ball Bearing | 125X40 | 135x114 | 105x80 | 13.5x11 | 155 | 300 |
Before production
Specification Confirmation and Quality Review
Model codes and dimensional requirements are confirmed before an order. Product inspection can be arranged according to the agreed castor series and application.
