Mounting footprint
Match the plate size, hole centres and mounting hole to the dimensions listed for your chosen model.
23 / UM SERIESThermoplastic rubber wheel
SELECTED CONFIGURATIONSwivel plate
Configuration photographTAISHAN · 23 / UM SERIES

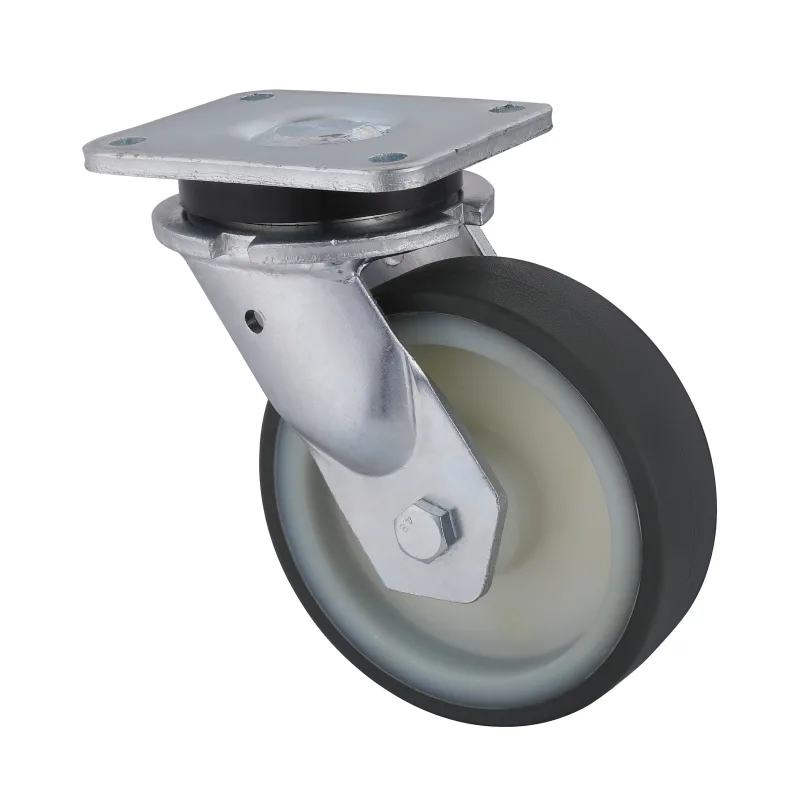

23 Series Heavy Duty Castors with UM Series Grey Thermoplastic Polyurethane Wheel
23/UM Grey TPU Heavy Duty Castors. Compare fixing options, dimensions and load ratings. Request a model quote from Taishan.
- Load per castor
- 550–800 kg
- Wheel diameter
- 160–200 mm
- Configurations
- 3 options
Your selected model23P1S160D45BUMRX6020
- Load
- 550 kg
- Overall height
- 205 mm
Compare every fixing and model in the parameter tables below
01 / THE 23 / UM SERIES
The wheel you need.
The fixing that fits.
Compare elastic rubber where cushioning and quieter travel are priorities. Deflection, pushing effort and floor marking depend on the actual compound and load.
- Wheel material
- Elastic Rubber
- Bearing
- Twin ball bearings
- Fixing options
- Swivel plate / Total brake plate / Fixed plate
02 / CONFIGURATIONS & DIMENSIONS
Every fixing.
Its own specification.
3 configurations. 6 model codes.
Compare the dimensions for your mounting position.
01
Quote this configuration Swivel plate
For equipment that needs to turn and manoeuvre.
| Model code | Bearing | Wheel Ø × width | Plate size | Hole centres | Mounting hole | Offset | Overall height | Load kg |
|---|---|---|---|---|---|---|---|---|
 Roller bearing | 160 × 50 | 135 × 110 | 105 × 80 | 13.5 × 11 | 57 | 205 | 550 | |
| Roller bearing | 200 × 50 | 135 × 110 | 105 × 80 | 13.5 × 11 | 65 | 245 | 800 |
02
Quote this configuration Total brake plate
Compare the brake configuration and allow clearance for the pedal.
| Model code | Bearing | Wheel Ø × width | Plate size | Hole centres | Mounting hole | Offset | Overall height | Load kg |
|---|---|---|---|---|---|---|---|---|
| Roller bearing | 160 × 50 | 135 × 110 | 105 × 80 | 13.5 × 11 | 57 | 205 | 550 | |
| 200 × 50 | 135 × 110 | 105 × 80 | 13.5 × 11 | 65 | 245 | 800 |
03
Quote this configuration Fixed plate
A fixed bracket for a straight-running position.
| Model code | Bearing | Wheel Ø × width | Plate size | Hole centres | Mounting hole | Offset | Overall height | Load kg |
|---|---|---|---|---|---|---|---|---|
| Roller bearing | 160 × 50 | 135 × 110 | 105 × 80 | 13.5 × 11 | 57 | 205 | 550 | |
| Roller bearing | 200 × 50 | 135 × 110 | 105 × 80 | 13.5 × 11 | 65 | 245 | 800 |
Dimensions are in millimetres. Loads are catalogue values per castor. Confirm the model, mounting dimensions and operating conditions with our team.
03 / BEFORE YOU SPECIFY
Check the fit.
Confirm the application.
Bracket clearance
Check the overall height and swivel offset, including clearance for a brake pedal where applicable.
Operating conditions
Share equipment weight, castor quantity, floor condition and movement method. We’ll help confirm the model for your application.
YOUR CASTOR MANUFACTURER
Made by Taishan.
Specified with you.
Send the model code, quantity and application directly to our manufacturing team. We’ll review the mounting requirements and discuss samples or OEM requirements with you.
2006Manufacturing since
ISO 9001Quality management
PRODUCT QUESTIONS
Before you order.
Which configurations are available?
Swivel plate, Total brake plate, Fixed plate. Each has its own model codes and parameter table above.
What should I check when replacing a castor?
Compare wheel diameter, tread width, mounting plate or hole, overall height, bearing and clearance. Match the complete model row to your equipment, then confirm the operating conditions with us.
What information is needed for a factory quote?
Send your model code or application, quantity and delivery country. Include equipment weight, castor quantity and any drawing or inspection requirements.
