Solid Rubber High Temperature Castors

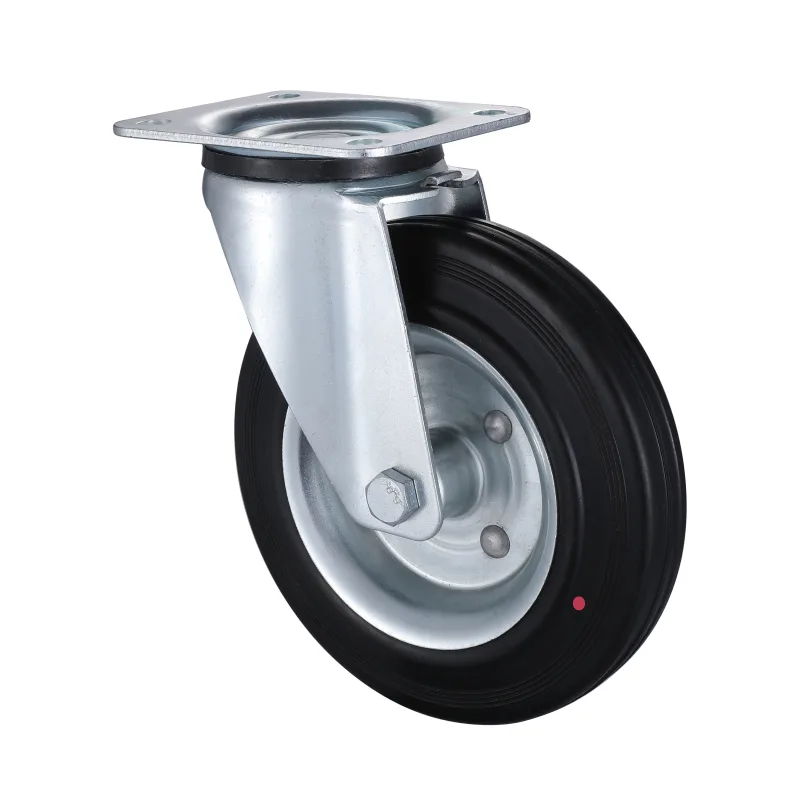

07 Series Heat-Resistant Castors with BM(HR) Series Black Heat Resistant Solid Rubber Wheel
07 BM(HR) Black Solid Rubber Heat Resistant Castors are listed with 80-200 mm wheel diameters and 40-180 kg catalogue loads per castor. Compare the bracket configurations and exact model rows below. Check mounting dimensions and clearances against your equipment, then send the selected code, quantity and operating conditions for confirmation.
Include required quantity, wheel diameter, load per unit and operating conditions.
Product overview
Series Features and Application
Selection at a glance
07 BM(HR) Black Solid Rubber Heat Resistant Castors are listed with 80-200 mm wheel diameters and 40-180 kg catalogue loads per castor. Compare the bracket configurations and exact model rows below. Check mounting dimensions and clearances against your equipment, then send the selected code, quantity and operating conditions for confirmation.
Compare actual catalogue rows
These are examples from the existing parameter tables. Values in each row belong to that code and configuration; confirm the full table for other sizes or mounting patterns.
| Configuration | Code Number | Diameter (mm) | Catalogue load per castor (kg) | Bearing |
|---|---|---|---|---|
| Swivel Castors | 07P1S80C30JBM(HR)RX4012 | 80 | 40 | Roller bearing |
| Swivel Castors with Total Brakes | 07P1TB80C30JBM(HR)RX4012 | 80 | 40 | Roller bearing |
| Fixed Castors | 07P1F80C30JBM(HR)RX4012 | 80 | 40 | Roller bearing |
| Bolt Hole Castors | 07H1S80C30JBM(HR)RX4012 | 80 | 40 | Roller bearing |
| Bolt Hole Castors with Total Brakes | 07H1TB80C30JBM(HR)RX4012 | 80 | 40 | Roller bearing |
Choose for the application
Compare solid rubber for general trolley duties where resilient floor contact is useful. Rubber compounds differ in hardness, marking and environmental compatibility.
Confirm the continuous temperature, peak exposure time and load at temperature for the complete castor. This dimensional table does not establish a thermal operating limit.
Prepare the enquiry
- Select the complete Code Number and confirm mounting dimensions and clearances.
- Describe load, floor, movement, temperature and cleaning conditions.
- Send quantity, destination country and any required drawing or inspection specification.
Practical checks
Pro tip: Test the actual tread on the finished floor, including turning.
Pro tip: Specify oils, cleaning agents and outdoor exposure before selection.
Compare the related product series or request a model-specific quotation.
Real configurations
Configurations and Parameter Tables
Compare model code, bearing, wheel diameter, mounting dimensions, overall height and load capacity.
Available configuration
Swivel Castors
| Code Number |  Bearing |   Wheel diameter x Width of Thread(mm) |  Plate Size(mm) |  Plate Hole Centers(mm) |  Plate Hole(mm) |  Offset(mm) |  Overall Height(mm) |  Load Capacity(kg) |
|---|---|---|---|---|---|---|---|---|
| 07P1S80C30JBM(HR)RX4012 |  Roller Bearing | 80x30 | 105x80 | 80x60 | 11x9 | 36 | 100 | 40 |
| 07P1S100C30JBM(HR)RX4012 | Roller Bearing | 100x30 | 105x80 | 80x60 | 11x9 | 36 | 125 | 65 |
| 07P1S125C37.5JBM(HR)RX5015 | Roller Bearing | 125x37.5 | 105x80 | 80x60 | 11x9 | 36 | 155 | 90 |
| 07P1S160C40JBM(HR)RX6020 | Roller Bearing | 160x40 | 135x110 | 105x80 | 13.5x11 | 52 | 190 | 120 |
| 07P1S200C50JBM(HR)RX6020 | Roller Bearing | 200x50 | 135x110 | 105x80 | 13.5x11 | 54 | 235 | 180 |
Available configuration
Swivel Castors with Total Brakes
| Code Number | Bearing | Wheel diameter x Width of Thread(mm) | Plate Size(mm) | Plate Hole Centers(mm) | Plate Hole(mm) | Offset(mm) | Overall Height(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|---|---|
| 07P1TB80C30JBM(HR)RX4012 | Roller Bearing | 80x30 | 105x80 | 80x60 | 11x9 | 36 | 100 | 40 |
| 07P1TB100C30JBM(HR)RX4012 | Roller Bearing | 100x30 | 105x80 | 80x60 | 11x9 | 40 | 125 | 65 |
| 07P1TB125C37.5JBM(HR)RX5015 | Roller Bearing | 125x37.5 | 105x80 | 80x60 | 11x9 | 40 | 155 | 90 |
| 07P1TB160C40JBM(HR)RX6020 | Roller Bearing | 160x40 | 135x110 | 105x80 | 13.5x11 | 60 | 190 | 120 |
| 07P1TB200C50JBM(HR)RX6020 | Roller Bearing | 200x50 | 135x110 | 105x80 | 13.5x11 | 60 | 235 | 180 |
Available configuration
Fixed Castors
| Code Number | Bearing | Wheel diameter x Width of Thread(mm) | Plate Size(mm) | Plate Hole Centers(mm) | Plate Hole(mm) | Offset(mm) | Overall Height(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|---|---|
| 07P1F80C30JBM(HR)RX4012 | Roller Bearing | 80x30 | 102X87 | 80x60 | 11x9 | 100 | 40 | |
| 07P1F100C30JBM(HR)RX4012 | Roller Bearing | 100x30 | 102X87 | 80x60 | 11x9 | 125 | 65 | |
| 07P1F125C37.5JBM(HR)RX5015 | Roller Bearing | 125x37.5 | 102X87 | 80x60 | 11x9 | 155 | 90 | |
| 07P1F160C40JBM(HR)RX6020 | Roller Bearing | 160x40 | 135x114 | 105x80 | 13.5x11 | 190 | 120 | |
| 07P1F200C50JBM(HR)RX6020 | Roller Bearing | 200x50 | 135x114 | 105x80 | 13.5x11 | 235 | 180 |
Available configuration
Bolt Hole Castors
| Code Number | Bearing | Wheel diameter x Width of Thread(mm) | Offset(mm) | Plate Hole(mm) | Overall Height(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|
| 07H1S80C30JBM(HR)RX4012 | Roller Bearing | 80x30 | 36 | ф13 | 99 | 40 |
| 07H1S100C30JBM(HR)RX4012 | Roller Bearing | 100x30 | 36 | ф13 | 124 | 65 |
| 07H1S125C37.5JBM(HR)RX5015 | Roller Bearing | 125x37.5 | 36 | ф13 | 154 | 90 |
| 07H1S160C40JBM(HR)RX6020 | Roller Bearing | 160x40 | 52 | ф16.8 | 185 | 120 |
| 07H1S200C50JBM(HR)RX6020 | Roller Bearing | 200x50 | 54 | ф16.8 | 230 | 180 |
Available configuration
Bolt Hole Castors with Total Brakes
| Code Number | Bearing | Wheel diameter x Width of Thread(mm) | Offset(mm) | Plate Hole(mm) | Overall Height(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|
| 07H1TB80C30JBM(HR)RX4012 | Roller Bearing | 80x30 | 36 | ф13 | 99 | 40 |
| 07H1TB100C30JBM(HR)RX4012 | Roller Bearing | 100x30 | 40 | ф13 | 124 | 65 |
| 07H1TB125C37.5JBM(HR)RX5015 | Roller Bearing | 125x37.5 | 40 | ф13 | 154 | 90 |
| 07H1TB160C40JBM(HR)RX6020 | Roller Bearing | 160x40 | 60 | ф16.8 | 185 | 120 |
| 07H1TB200C50JBM(HR)RX6020 | Roller Bearing | 200x50 | 60 | ф16.8 | 230 | 180 |
Before production
Specification Confirmation and Quality Review
Model codes and dimensional requirements are confirmed before an order. Product inspection can be arranged according to the agreed castor series and application.
