Nylon (Polyamide/PA) High Temperature Castors

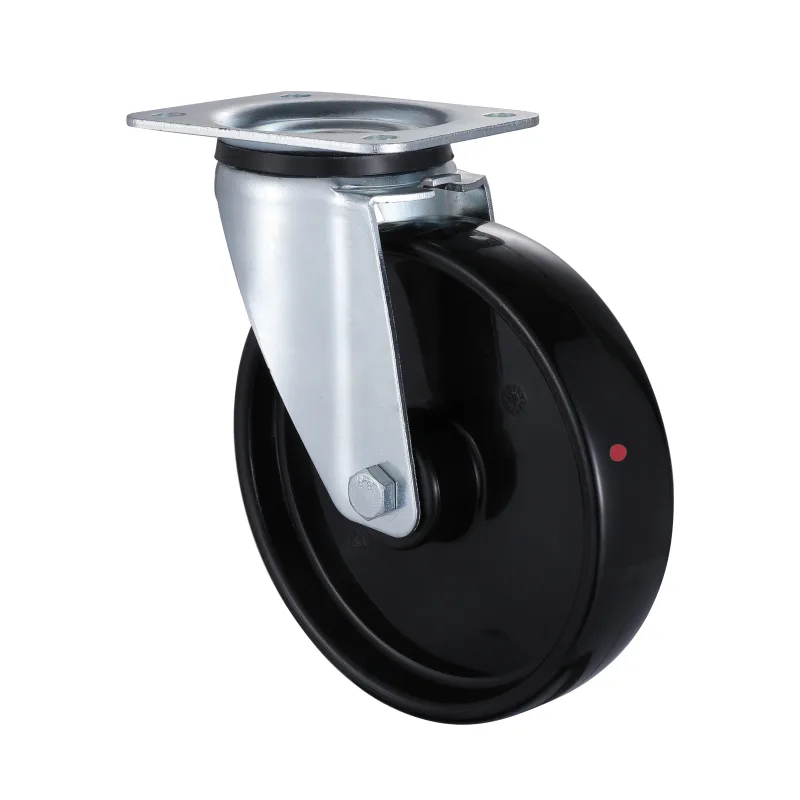

07 Series Heat-Resistant Castors with PA(HR) Series Black Heat-Resistant Polyamide Wheel
Compare Swivel Castors, Swivel Castors with Total Brakes, Fixed Castors, Bolt Hole Castors, and Bolt Hole Castors with Total Brakes for 07 Series PA(HR) Black Nylon (PA) High Temperature Castors, including 150-300 kg.
Include required quantity, wheel diameter, load per castor and operating conditions.
Product overview
Series Features and Application
07 Series PA(HR) Black Nylon (PA) High Temperature Castors Specifications
Compare Swivel Castors, Swivel Castors with Total Brakes, Fixed Castors, Bolt Hole Castors, and Bolt Hole Castors with Total Brakes for 07 Series PA(HR) Black Nylon (PA) High Temperature Castors, including 150-300 kg rated loads. Review model codes and request a factory quotation.
Selection information
Confirm the required quantity, load per castor, wheel diameter, mounting, floor, speed and operating environment before ordering. Use the specification tables and model codes when requesting a quotation.
Real configurations
Bracket Types and Parameter Tables
Compare model code, bearing, wheel diameter, mounting dimensions, overall height and load capacity.
Available configuration
Swivel Castors
| Code Number |  Bearing |  Wheel Diameter(mm) |  Plate Size(mm) |  Plate Hole Centers(mm) |  Plate Hole(mm) |  Offset(mm) |  Overall Height(mm) |  Load Capacity(kg) |
|---|---|---|---|---|---|---|---|---|
| 07P1S80C34CPA |  Plain Bore | 80x34 | 105x80 | 80x60 | 11x9 | 36 | 100 | 150 |
| 07P1S100C36CPA | Plain Bore | 100x36 | 105x80 | 80x60 | 11x9 | 36 | 125 | 180 |
| 07P1S125C40CPA | Plain Bore | 125x40 | 105x80 | 80x60 | 11x9 | 36 | 155 | 200 |
| 07P1S150C40CPA | Plain Bore | 150x40 | 135x110 | 105x80 | 13.5x11 | 52 | 185 | 300 |
| 07P1S160C40CPA | Plain Bore | 160x40 | 135x110 | 105x80 | 13.5x11 | 54 | 190 | 300 |
| 07P1S200C46CPA | Plain Bore | 200x46 | 135x110 | 105x80 | 13.5x11 | 54 | 235 | 300 |
Available configuration
Swivel Castors with Total Brakes
| Code Number | Bearing | Wheel Diameter(mm) | Plate Size(mm) | Plate Hole Centers(mm) | Plate Hole(mm) | Offset(mm) | Overall Height(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|---|---|
| 07P1TB80C34CPA | Plain Bore | 80x34 | 105x80 | 80x60 | 11x9 | 36 | 100 | 150 |
| 07P1TB100C36CPA | Plain Bore | 100x36 | 105x80 | 80x60 | 11x9 | 40 | 125 | 180 |
| 07P1TB125C40CPA | Plain Bore | 125x40 | 105x80 | 80x60 | 11x9 | 40 | 155 | 200 |
| 07P1TB150C40CPA | Plain Bore | 150x40 | 135x110 | 105x80 | 13.5x11 | 60 | 185 | 300 |
| 07P1TB160C40CPA | Plain Bore | 160x40 | 135x110 | 13.5x11 | 60 | 190 | 300 | |
| 07P1TB200C46CPA | 200x46 | 135x110 | 105x80 | 13.5x11 | 60 | 235 | 300 |
Available configuration
Fixed Castors
| Code Number | Bearing | Wheel Diameter(mm) | Plate Size(mm) | Plate Hole Centers(mm) | Plate Hole(mm) | Offset(mm) | Overall Height(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|---|---|
| 07P1F80C34CPA | Plain Bore | 80x34 | 102X87 | 80x60 | 11x9 | 100 | 150 | |
| 07P1F100C36CPA | Plain Bore | 100x36 | 102X87 | 80x60 | 11x9 | 125 | 180 | |
| 07P1F125C40CPA | Plain Bore | 125x40 | 135x114 | 105x80 | 13.5x11 | 155 | 200 | |
| 07P1F150C40CPA | Plain Bore | 150x40 | 135x114 | 105x80 | 13.5x11 | 185 | 300 | |
| 07P1F160C40CPA | Plain Bore | 160x40 | 135x114 | 105x80 | 13.5x11 | 190 | 300 | |
| 07P1F200C46CPA | Plain Bore | 200x46 | 135x114 | 105x80 | 13.5x11 | 235 | 300 |
Available configuration
Bolt Hole Castors
| Code Number | Bearing | Wheel Diameter(mm) | Offset(mm) | Plate Hole(mm) | Overall Height(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|
| 07H1S80C34CPA | Plain Bore | 80x34 | 36 | ф13 | 99 | 150 |
| 07H1S100C36CPA | Plain Bore | 100x36 | 36 | ф13 | 124 | 180 |
| 07H1S125C40CPA | Plain Bore | 125x40 | 36 | ф13 | 154 | 200 |
| 07H1S150C40CPA | Plain Bore | 150x40 | 52 | ф13 | 180 | 300 |
| 07H1S160C40CPA | Plain Bore | 160x40 | 52 | ф16.8 | 185 | 300 |
| 07H1S200C46CPA | Plain Bore | 200x46 | 54 | ф16.8 | 230 | 300 |
Available configuration
Bolt Hole Castors with Total Brakes
| Code Number | Bearing | Wheel Diameter(mm) | Offset(mm) | Plate Hole(mm) | Overall Height(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|
| 07H1TB80C34CPA | Plain Bore | 80x34 | 36 | ф13 | 99 | 150 |
| 07H1TB100C36CPA | Plain Bore | 100x36 | 40 | ф13 | 124 | 180 |
| 07H1TB125C40CPA | Plain Bore | 125x40 | 40 | ф13 | 154 | 200 |
| 07H1TB150C40CPA | Plain Bore | 150x40 | 60 | ф13 | 180 | 300 |
| 07H1TB160C40CPA | Plain Bore | 160x40 | 60 | ф16.8 | 185 | 300 |
| 07H1TB200C46CPA | Plain Bore | 200x46 | 60 | ф16.8 | 230 | 300 |
Before production
Specification Confirmation and Quality Review
Model codes and dimensional requirements are confirmed before an order. Product inspection can be arranged according to the agreed castor series and application.
