Casting-Iron Heat Resistant Castors

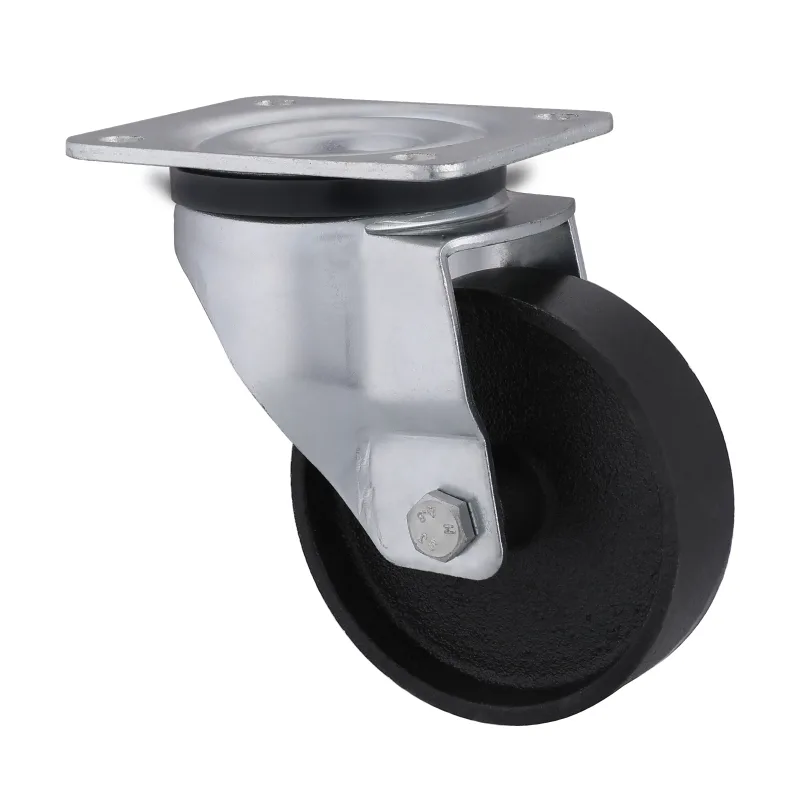

09 Series Heat-Resistant Castors with II Series Black Heat-Resistant Casting Iron Wheel
09 II Black Cast Iron Heat Resistant Castors are listed with 80-200 mm wheel diameters and 200-500 kg catalogue loads per castor. Compare the bracket configurations and exact model rows below. Check mounting dimensions and clearances against your equipment, then send the selected code, quantity and operating conditions for confirmation.
Include required quantity, wheel diameter, load per unit and operating conditions.
Product overview
Series Features and Application
Selection at a glance
09 II Black Cast Iron Heat Resistant Castors are listed with 80-200 mm wheel diameters and 200-500 kg catalogue loads per castor. Compare the bracket configurations and exact model rows below. Check mounting dimensions and clearances against your equipment, then send the selected code, quantity and operating conditions for confirmation.
Compare actual catalogue rows
These are examples from the existing parameter tables. Values in each row belong to that code and configuration; confirm the full table for other sizes or mounting patterns.
| Configuration | Code Number | Diameter (mm) | Catalogue load per castor (kg) | Bearing |
|---|---|---|---|---|
| Swivel Castors | 09P1S80C26CIIPX4012 | 80 | 200 | Plain bore |
| Swivel Castors with Total Brakes | 09P1TB80C26CIIPX4012 | 80 | 200 | Plain bore |
| Fixed Castors | 09P1F80C26CIIPX4012 | 80 | 200 | Plain bore |
Choose for the application
Compare cast iron where a rigid metallic wheel fits the equipment and floor requirements. Floor damage, rolling noise and transmitted impact can limit suitability.
Confirm the continuous temperature, peak exposure time and load at temperature for the complete castor. This dimensional table does not establish a thermal operating limit.
Prepare the enquiry
- Select the complete Code Number and confirm mounting dimensions and clearances.
- Describe load, floor, movement, temperature and cleaning conditions.
- Send quantity, destination country and any required drawing or inspection specification.
Practical checks
Pro tip: Inspect the floor material and condition before specifying a metal wheel.
Pro tip: Verify bearings and lubrication separately for any elevated-temperature duty.
Compare the related product series or request a model-specific quotation.
Real configurations
Configurations and Parameter Tables
Compare model code, bearing, wheel diameter, mounting dimensions, overall height and load capacity.
Available configuration
Swivel Castors
| Code Number |  Bearing |   Wheel diameter x Width of Thread(mm) |  Plate Size(mm) |  Plate Hole Centers(mm) |  Plate Hole(mm) |  Offset(mm) |  Overall Height(mm) |  Load Capacity(kg) |
|---|---|---|---|---|---|---|---|---|
| 09P1S80C26CIIPX4012 |  Plain Bore | 80x26 | 105x80 | 80x60 | 11x9 | 40 | 108 | 200 |
| 09P1S100C28CIIPX4012 | Plain Bore | 100x28 | 105x80 | 80x60 | 11x9 | 40 | 132 | 250 |
| 09P1S125C32CIIPX5015 | Plain Bore | 125x32 | 105x80 | 80x60 | 11x9 | 40 | 155 | 300 |
| 09P1S150C45CIIPX6020 | Plain Bore | 150x45 | 135x110 | 105x80 | 13.5x11 | 52 | 195 | 400 |
| 09P1S200C45CIIPX6020 | Plain Bore | 200x45 | 135x110 | 105x80 | 13.5x11 | 54 | 245 | 500 |
Available configuration
Swivel Castors with Total Brakes
| Code Number | Bearing | Wheel diameter x Width of Thread(mm) | Plate Size(mm) | Plate Hole Centers(mm) | Plate Hole(mm) | Offset(mm) | Overall Height(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|---|---|
| 09P1TB80C26CIIPX4012 | Plain Bore | 80x26 | 105x80 | 80x60 | 11x9 | 40 | 108 | 200 |
| 09P1TB100C28CIIPX4012 | Plain Bore | 100x28 | 105x80 | 80x60 | 11x9 | 40 | 132 | 250 |
| 09P1TB125C32CIIPX5015 | Plain Bore | 125x32 | 105x80 | 80x60 | 11x9 | 40 | 155 | 300 |
| 09P1TB150C45CIIPX6020 | Plain Bore | 150x45 | 135x110 | 105x80 | 13.5x11 | 60 | 195 | 400 |
| 09P1TB200C45CIIPX6020 | Plain Bore | 200x45 | 135x110 | 105x80 | 13.5x11 | 60 | 245 | 500 |
Available configuration
Fixed Castors
| Code Number | Bearing | Wheel diameter x Width of Thread(mm) | Plate Size(mm) | Plate Hole Centers(mm) | Plate Hole(mm) | Offset(mm) | Overall Height(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|---|---|
| 09P1F80C26CIIPX4012 | Plain Bore | 80x26 | 102X87 | 80x60 | 11x9 | 108 | 200 | |
| 09P1F100C28CIIPX4012 | Plain Bore | 100x28 | 102X87 | 80x60 | 11x9 | 132 | 250 | |
| 09P1F125C32CIIPX5015 | Plain Bore | 125x32 | 135x114 | 105x80 | 13.5x11 | 155 | 300 | |
| 09P1F150C45CIIPX6020 | Plain Bore | 150x45 | 135x114 | 105x80 | 13.5x11 | 195 | 400 | |
| 09P1F200C45CIIPX6020 | Plain Bore | 200x45 | 135x114 | 105x80 | 13.5x11 | 245 | 500 |
Before production
Specification Confirmation and Quality Review
Model codes and dimensional requirements are confirmed before an order. Product inspection can be arranged according to the agreed castor series and application.
