Elastic Rubber Industrial Castors
09 Series Industrial Castors with EI Series Black Elastic Rubber Wheel
Compare Swivel Castors, Swivel Castors with Total Brakes, and Fixed Castors for 06 Series EA Black Elastic Rubber Industrial Castors, including 200-250 kg rated loads. Review model codes and request a factory quotation.
Include required quantity, wheel diameter, load per castor and operating conditions.
Product overview
Series Features and Application
Compare Swivel Castors, Swivel Castors with Total Brakes, and Fixed Castors for 06 Series EA Black Elastic Rubber Industrial Castors, including 200-250 kg rated loads. Review model codes and request a factory quotation.
Selection information
Confirm the required quantity, load per castor, wheel diameter, mounting, floor, speed and operating environment before ordering. Use the specification tables and model codes when requesting a quotation.
Real configurations
Bracket Types and Parameter Tables
Compare model code, bearing, wheel diameter, mounting dimensions, overall height and load capacity.
Available configuration

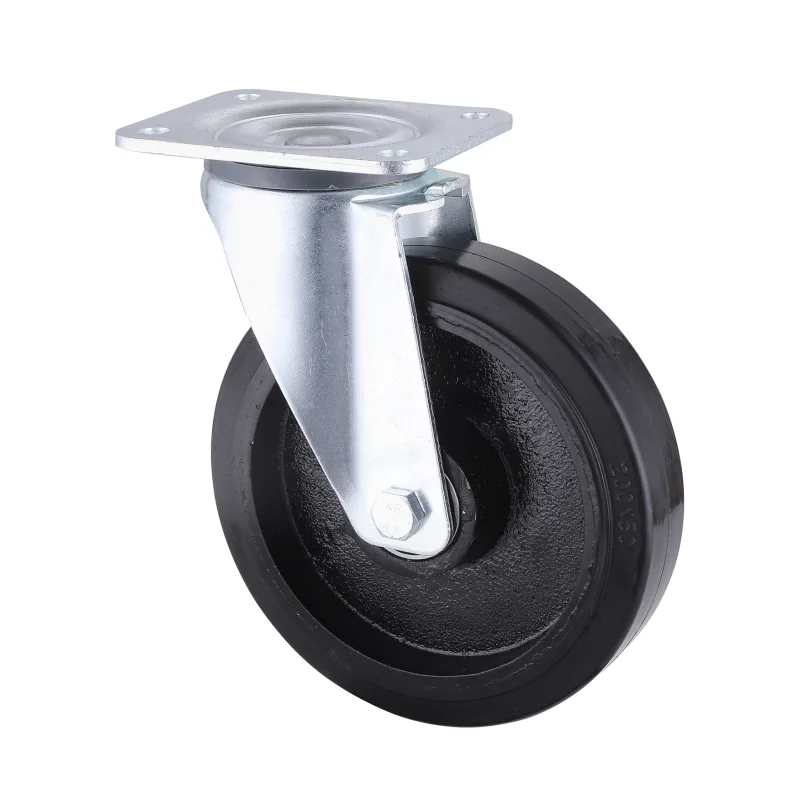

Swivel Castors
| Code Number |  Bearing |   Wheel diameter x Width of Thread(mm) |  Plate Size(mm) |  Plate Hole Centers(mm) |  Plate Hole(mm) |  Offset(mm) |  Overall Height(mm) |  Load Capacity(kg) |
|---|---|---|---|---|---|---|---|---|
| 09P1S160C50CEIDX6020 |  Two Ball Bearing | 160X50 | 135x110 | 105x80 | 13.5x11 | 52 | 200 | 450 |
| 09P1S200C50CEIDX6020 | Two Ball Bearing | 200X50 | 135x110 | 105x80 | 13.5x11 | 54 | 245 | 500 |
Available configuration
Swivel Castors with Total Brakes
| Code Number | Bearing | Wheel diameter x Width of Thread(mm) | Plate Size(mm) | Plate Hole Centers(mm) | Plate Hole(mm) | Offset(mm) | Overall Height(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|---|---|
| 09P1TB160C50CEIDX6020 | Two Ball Bearing | 160X50 | 135x110 | 105x80 | 13.5x11 | 60 | 200 | 450 |
| 09P1TB200C50CEIDX6020 | Two Ball Bearing | 200X50 | 135x110 | 105x80 | 13.5x11 | 60 | 245 | 500 |
Available configuration
Fixed Castors
| Code Number | Bearing | Wheel diameter x Width of Thread(mm) | Plate Size(mm) | Plate Hole Centers(mm) | Plate Hole(mm) | Offset(mm) | Overall Height(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|---|---|
| 09P1F160C50CEIDX6020 | Two Ball Bearing | 160X50 | 135x114 | 105x80 | 13.5x11 | 200 | 450 | |
| 09P1F200C50CEIDX6020 | Two Ball Bearing | 200X50 | 135x114 | 105x80 | 13.5x11 | 245 | 500 |
Before production
Specification Confirmation and Quality Review
Model codes and dimensional requirements are confirmed before an order. Product inspection can be arranged according to the agreed castor series and application.
Product inquiry
Request a Quote for This Castor Series
Select one or more bracket types and specification rows. Your inquiry automatically includes this product page and model information.
Send Product Requirements
Send your castor requirements. We will reply with product options, specifications and quotation details.
