PH Series Type
Wheel tread
Polyamide
Wheel center
Polyamide
Bearing
Single ball bearing
Threadguard
None
Temperature
-20 to +80°C
Hardness of Tread
D 75 Shore
Standard
EN 12530
Applicable Terrain
Tile Floor
Resin Cement Floor
You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.
Swipe right to see the full table
Wheel Number | ![]() Bearing Type | ![]() Wheel Diameter ( mm ) | ![]() Wheel Width ( mm ) | ![]() Hub Length ( mm ) | ![]() Hub Bore ( mm ) | ![]() Load Capacity ( kg ) |
---|---|---|---|---|---|---|
100B38BPHDX | ![]() | 100 | 38 | 42 | 15 | 350 |
125B38BPHDX | ![]() | 125 | 38 | 52 | 15 | 400 |
125B50BPHDX | ![]() | 125 | 50 | 50 | 20 | 840 |
150B50BPHDX | ![]() | 150 | 50 | 50 | 20 | 960 |
160B50BPHDX | ![]() | 160 | 50 | 50 | 20 | 1000 |
200B50BPHDX | ![]() | 200 | 50 | 50 | 20 | 1200 |
250B50BPHDX | ![]() | 250 | 50 | 50 | 25 | 1500 |
Taishan Castor and Wheel supplier, a trailblazer in the castor industry from China, takes pride in its well-earned industry reputation for excellence.

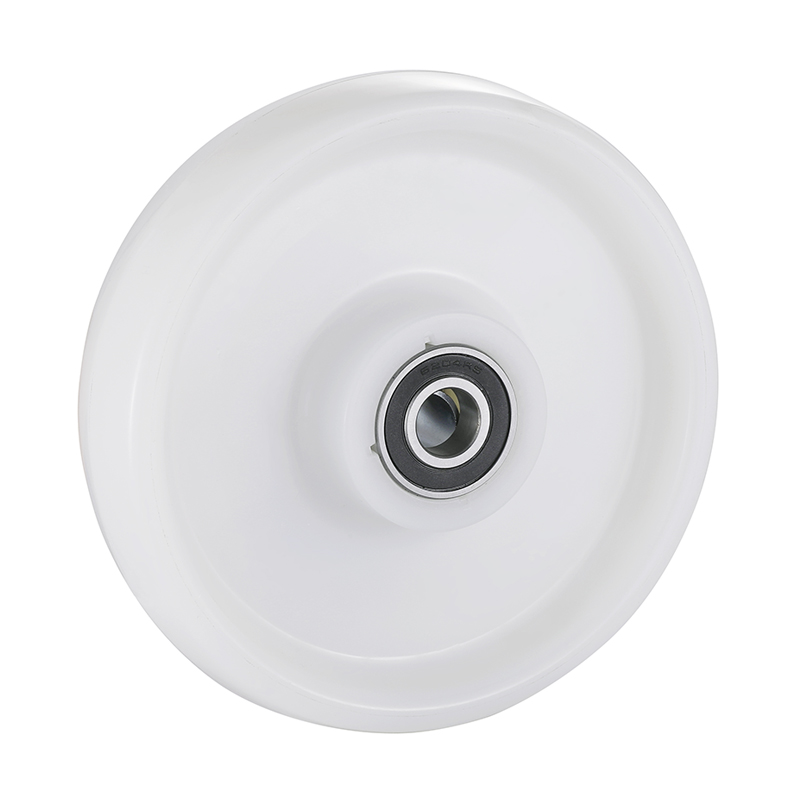

We supply a wide range of nylon wheels, designed to cater to diverse industrial needs:
Available in wheel diameters from 100mm to 250mm, they are tailored to fit various applications.
Engineered to support a load capacity ranging from 350kg to 1500kg, ensuring reliability under heavy loads.
Wheel Characteristics:
High Load Capacity: Our nylon wheels are built to bear substantial weights, making them ideal for heavy-duty use.
Low Rolling Resistance: They offer smooth operation with minimal resistance, reducing effort and wear.
High Impact Strength: Designed to withstand shocks and impacts, our wheels provide durability in challenging conditions.
Good Abrasion Resistance: With excellent resistance to wear, our wheels maintain performance over time.
Make Your Bulk Purchase with Confidence:
Stringent quality testing process ensures the quality of supplied nylon wheels, rest assured to purchase our casters in bulk.
You can leave a request below and our team will get back to you:
We look forward to contacting you as a partnership to provide you with high quality castors.
