Castor Specifications
Slide to the right to view all castor specifications
| CastorNumber |  Bearing Type |   Wheel Diameter & Width of Tread ( mm ) |  Size of Plate ( mm ) |  Plate Hole Center ( mm ) |  Plate Hole ( mm ) |  Offset ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg 4km/h ) |
|---|---|---|---|---|---|---|---|---|
| 07P1S80C35CEP(HR)PX |  | 80x35 | 105x80 | 80x60 | 11x9 | 36 | 100 | 80 |
| 07P1S100C36CEP(HR)PX | | 100x36 | 105x80 | 80x60 | 11x9 | 36 | 125 | 80 |
Castor Information
Wheel Tread Material
Elastic rubber
Wheel Centre Material
Polyamide
Castor Housing
Swivel
Mounting Type
Top Plate
Castor Bearing
Plain bore
Temperature Range
-20 to +250°C
Hardness of Tread
68°+5 Shore A
Threadguard
None
Color
Black
Description

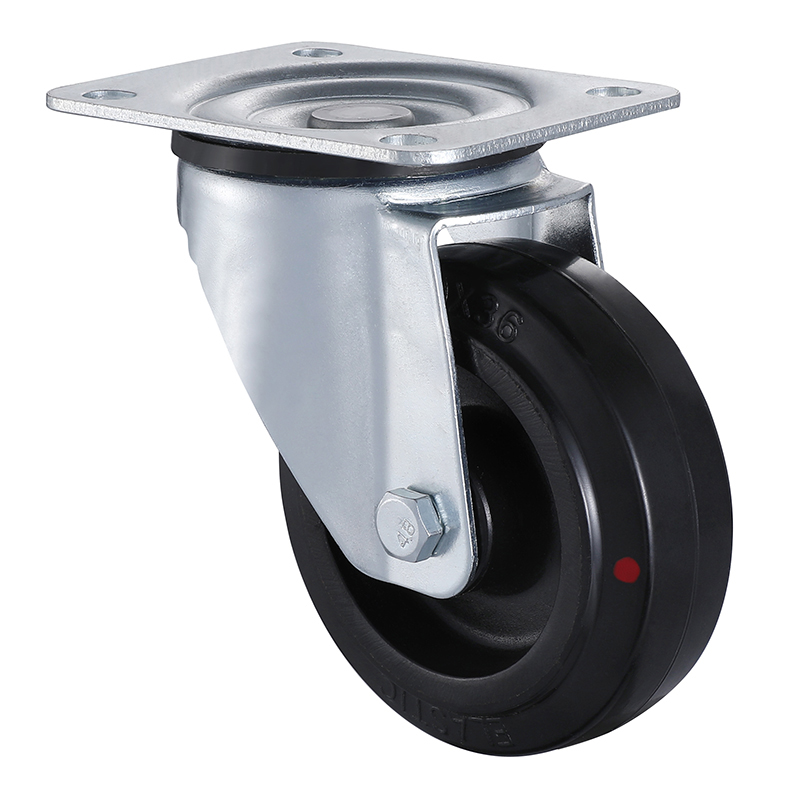

Swivel castors, heat resistant castor bracket pressed from stamped steel, with double ball bearings in the swivel head, protection of the balls by means of a special top plate and ball disc design, smooth rolling characteristics, and work-hardening of the ball raceway grooves for extended service life.
Castor wheel tread heat resistant rubber, temperature of heat resistance -20°C to +250°C, plain bore, wheel diameter 80mm and 100mm, load capacity 80kg.
Purchase our high quality heat resistant castors in bulk with discounts and contact the sales manager immediately.
Applicable Terrain
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
