Castor Specifications
Slide to the right to view all castor specifications
| Castor Number |  Wheel Diameter ( mm ) |  Tread of Width ( mm ) |  Offset ( mm ) |  Plate Hole ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg ) |
|---|---|---|---|---|---|---|
| 07H1S80C30CBPRX | 80 | 30 | 36 | ф13 | 99 | 50 |
| 07H1S100C30CBPRX | 100 | 30 | 36 | ф13 | 124 | 75 |
| 07H1S125C37.5CBPRX | 125 | 37.5 | 36 | ф13 | 154 | 100 |
| 07H1S160C40CBPRX | 160 | 40 | 52 | ф16.8 | 185 | 140 |
| 07H1S200C50CBPRX | 200 | 50 | 54 | ф16.8 | 230 | 205 |
Castor Information
Wheel Tread Material
Solid rubber
Wheel Centre Material
Polypropylene
Castor Housing
Bolt Hole
Mounting Type
Bolt Hole
Castor Bearing
Roller bearing
Temperature Range
-20 to +60°C
Hardness of Tread
85°+3 Shore A
Threadguard
None
Color
Black

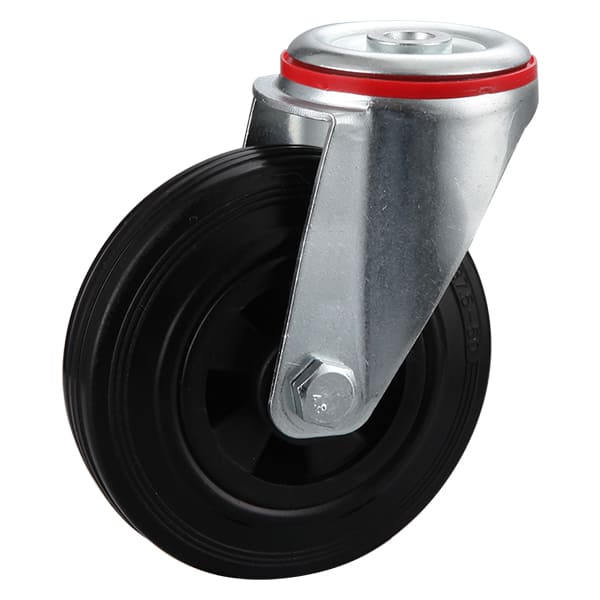

Description
Housing: pressed steel swivel fork , zinc-plated, double ball race ,sealed in the swviel head
wheel: Black Polyroplene wheel centre with roller bearing
Black Solid Rubeer Tyre, 83+5 Shore A
Applicable Terrain
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
