Castor Specifications
Slide to the right to view all castor specifications
| Castor Number |  Wheel Diameter ( mm ) |  Tread of Width ( mm ) |  Size of Plate ( mm ) |  Plate Hole Center ( mm ) |  Plate Hole ( mm ) |  Offset ( mm ) |  Swivel Radius ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg ) |
|---|---|---|---|---|---|---|---|---|---|
| 07P1FB160C40CBPRX | 160 | 40 | 135x110 | 105x80 | 13.5x11 | 52 | 154.5 | 190 | 140 |
| 07P1FB200C50CBPRX | 200 | 50 | 135x110 | 105x80 | 13.5x11 | 54 | 154.5 | 235 | 205 |
| 07P1FB250C60CBPRX | 250 | 60 | 135X110 | 105X80 | 13.5X11 | 66 | 156 | 290 | 295 |
Castor Information
Wheel Tread Material
Solid rubber
Wheel Centre Material
Polypropylene
Castor Housing
Tail Brake
Mounting Type
Top Plate
Castor Bearing
Roller bearing
Temperature Range
-20 to +60°C
Hardness of Tread
85°+3 Shore A
Threadguard
None
Color
Black
Description

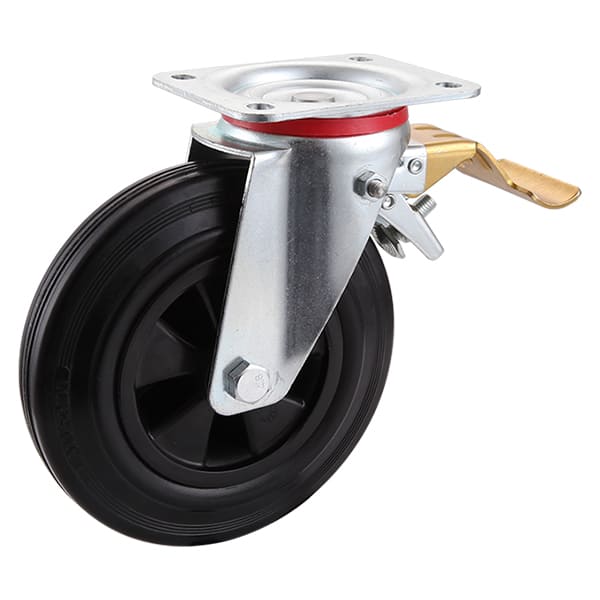

Housing: pressed steel swivel fork , zinc-plated, double ball race ,sealed in the swviel head
wheel: Black Polyropylene wheel centre with roller bearing
Black Solid Rubeer Tyre, 83+5 Shore A
Applicable Terrain
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
