Castor Specifications
Slide to the right to view all castor specifications
| Castor Number |  Wheel Diameter ( mm ) |  Tread of Width ( mm ) |  Size of Plate ( mm ) |  Plate Hole Center ( mm ) |  Plate Hole ( mm ) |  Offset ( mm ) |  Swivel Radius ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg ) |
|---|---|---|---|---|---|---|---|---|---|
| 07P1RB80C30CBPRX | 80 | 30 | 105x80 | 80x60 | 11X9 | 36 | 128 | 100 | 50 |
| 07P1RB100C30CBPRX | 100 | 30 | 105x80 | 80x60 | 11X9 | 40 | 130 | 125 | 70 |
| 07P1RB/S100C30CBPRX | 100 | 30 | 105x80 | 80x60 | 11X9 | 40 | 130 | 128 | 70 |
| 07P1RB125C37.5CBPRX | 125 | 37.5 | 105x80 | 80x60 | 11X9 | 40 | 133 | 155 | 100 |
| 07P1RB160C40CBPRX | 160 | 40 | 135x110 | 105x80 | 13.5x11 | 60 | 203.5 | 190 | 140 |
| 07P1RB200C50CBPRX | 200 | 50 | 135x110 | 105x80 | 13.5x11 | 60 | 203.5 | 235 | 205 |
Castor Information
Wheel Tread Material
Solid rubber
Wheel Centre Material
Polypropylene
Castor Housing
Total Brake
Mounting Type
Top Plate
Castor Bearing
Roller bearing
Temperature Range
-20 to +60°C
Hardness of Tread
85°+3 Shore A
Threadguard
None
Color
Black

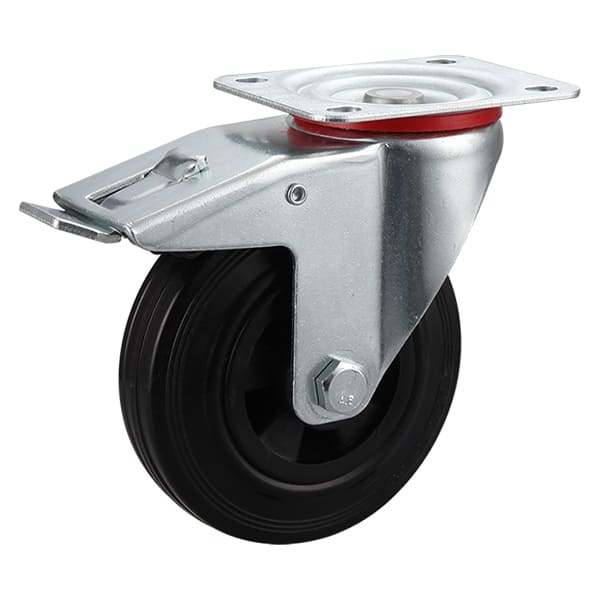

Description
Housing: pressed steel swivel fork , zinc-plated, double ball race ,sealed in the swviel head
wheel: Black Polyropylene wheel centre with roller bearing,
Black Solid Rubeer Tyre, 83+5 Shore A
Applicable Terrain
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
