Castor Specifications
Slide to the right to view all castor specifications
| Castor Number |  Wheel Diameter ( mm ) |  Tread of Width ( mm ) |  Offset ( mm ) |  Plate Hole ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg ) |
|---|---|---|---|---|---|---|
| 07H1S80F34BUPRX | 80 | 34 | 36 | ф13 | 99 | 120 |
| 07H1S100F34BUPRX | 100 | 34 | 36 | ф13 | 124 | 150 |
| 07H1S125F36BUPRX | 125 | 36 | 36 | ф13 | 154 | 200 |
| 07H1S160F40BUPRX | 160 | 40 | 52 | ф16.8 | 185 | 300 |
| 07H1S200F50BUPRX | 200 | 50 | 54 | ф16.8 | 230 | 400 |
Castor Information
Wheel Tread Material
Polyurethane
Wheel Centre Material
Polyamide
Castor Housing
Bolt Hole
Mounting Type
Bolt Hole
Castor Bearing
Roller bearing
Temperature Range
-20 to +80°C
Hardness of Tread
92°+3 Shore A
Threadguard
None
Color
Red

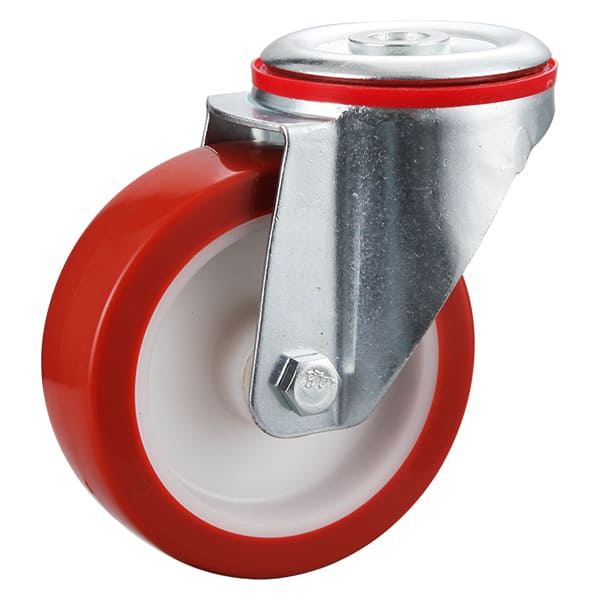

Description
Housing: pressed steel swivel fork , zinc-plated, double ball race ,sealed in the swviel head
wheel: White Polyamide Centre with Roller bearing,
Red Injection Polyurethane Thread , 92 Shore A
Applicable Terrain
Tile Floor
Resin Cement Floor
