Castor Specifications
Slide to the right to view all castor specifications
| Castor Number |  Wheel Diameter ( mm ) |  Tread of Width ( mm ) |  Size of Plate ( mm ) |  Plate Hole Center ( mm ) |  Plate Hole ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg ) |
|---|---|---|---|---|---|---|---|
| 07P1F80B34BPARX | 80 | 34 | 102x87 | 80x60 | 11X9 | 100 | 100 |
| 07P1F100B36BPARX | 100 | 36 | 102x87 | 80x60 | 11X9 | 125 | 180 |
| 07P1F/S100B36BPARX | 100 | 36 | 102x87 | 80x60 | 11X9 | 128 | 180 |
| 07P1F125B40BPARX | 125 | 40 | 102x87 | 80x60 | 11X9 | 155 | 250 |
| 07P1F160B40BPARX | 160 | 40 | 135x114 | 105x80 | 13.5X11 | 190 | 300 |
| 07P1F200B46BPARX | 200 | 46 | 135x114 | 105x80 | 13.5X11 | 235 | 350 |
Castor Information
Wheel Tread Material
Polyamide
Wheel Centre Material
Polyamide
Castor Housing
Fixed
Mounting Type
Top Plate
Castor Bearing
Roller bearing
Temperature Range
-40 to +80°C
Hardness of Tread
75° Shore D
Threadguard
None
Color
White

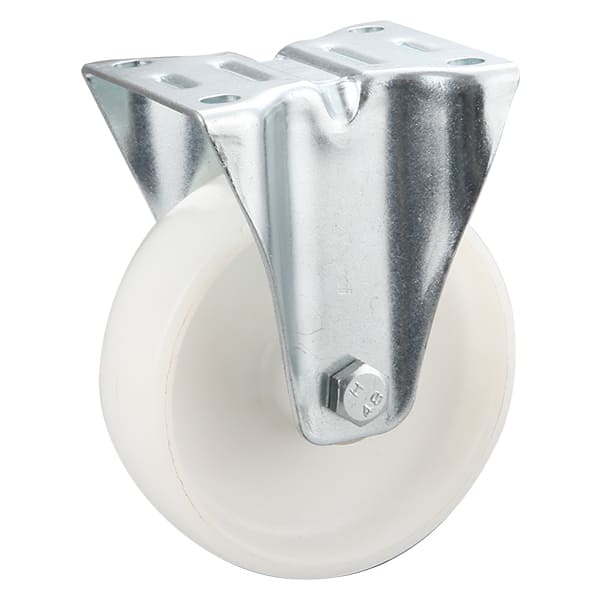

Description
Housing: pressed steel Fixed fork , zinc-plated,
wheel: White Polyamide wheel with Roller bearing
Applicable Terrain
Tile Floor
Resin Cement Floor
