Castor Specifications
Slide to the right to view all castor specifications
| Castor Number |  Wheel Diameter ( mm ) |  Tread of Width ( mm ) |  Offset ( mm ) |  Plate Hole ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg ) |
|---|---|---|---|---|---|---|
| 07H1S80B34BPPPX | 80 | 34 | 36 | ф13 | 99 | 100 |
| 07H1S100B36BPPPX | 100 | 36 | 36 | ф13 | 124 | 150 |
| 07H1S125B40BPPPX | 125 | 40 | 36 | ф13 | 154 | 200 |
| 07H1S160B40BPPPX | 160 | 40 | 52 | ф16.8 | 185 | 300 |
| 07H1S200B46BPPPX | 200 | 46 | 54 | ф16.8 | 230 | 350 |
Castor Information
Wheel Tread Material
Polyopylene
Wheel Centre Material
Polypropylene
Castor Housing
Bolt Hole
Mounting Type
Bolt Hole
Castor Bearing
Plain bore
Temperature Range
-20 to +60°C
Hardness of Tread
85°+3 Shore A
Threadguard
None
Color
White
Description

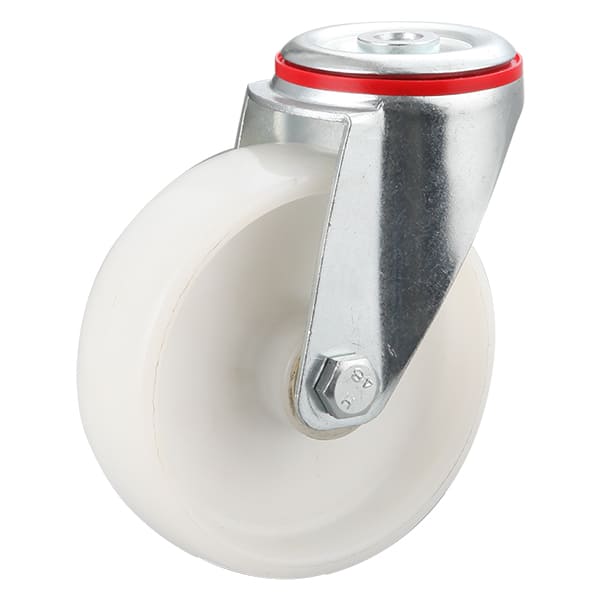

Housing: pressed steel swivel fork , zinc-plated, double ball race ,sealed in the swviel head
wheel: White Polypropylene wheel with plain bore
Applicable Terrain
Tile Floor
Resin Cement Floor
