Castor Specifications
Slide to the right to view all castor specifications
| Castor Number |  Wheel Diameter ( mm ) |  Tread of Width ( mm ) |  Size of Plate ( mm ) |  Plate Hole Center ( mm ) |  Plate Hole ( mm ) |  Offset ( mm ) |  Overall Height ( mm ) |  Load Capacity ( mm ) |
|---|---|---|---|---|---|---|---|---|
| 07P1S80B36BPPPX | 80 | 34 | 105x80 | 80x60 | 11x9 | 36 | 100 | 100 |
| 07P1S100B36BPPPX | 100 | 36 | 105x80 | 80x60 | 11x9 | 36 | 125 | 150 |
| 07P1S/S100B36BPPPX | 100 | 36 | 105x80 | 80x60 | 11x9 | 36 | 128 | 150 |
| 07P1S125B40BPPPX | 125 | 40 | 105x80 | 80x60 | 11x9 | 36 | 155 | 200 |
| 07P1S160B40BPPPX | 160 | 40 | 135x110 | 105x80 | 13.5x11 | 52 | 190 | 300 |
| 07P1S200B46BPPPX | 200 | 46 | 135x110 | 105x80 | 13.5x11 | 54 | 235 | 350 |
Castor Information
Wheel Tread Material
Polyopylene
Wheel Centre Material
Polypropylene
Castor Housing
Swivel
Mounting Type
Top Plate
Castor Bearing
Plain bore
Temperature Range
-20 to +60°C
Hardness of Tread
85°+3 Shore A
Threadguard
None
Color
White

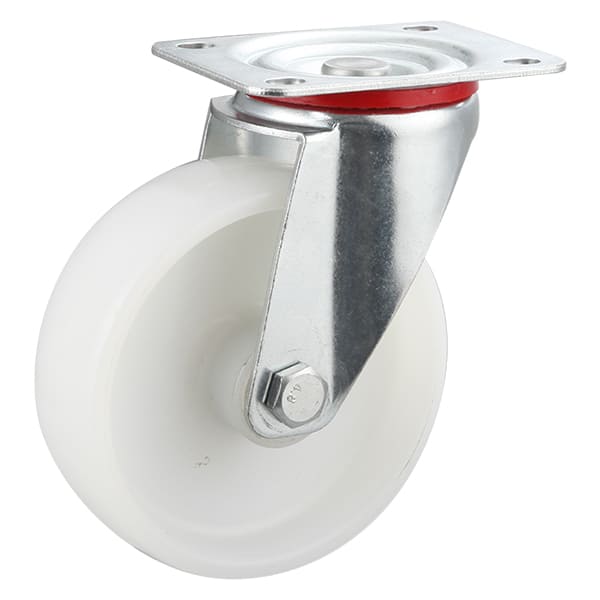

Description
Housing: pressed steel swivel fork , zinc-plated, double ball race ,sealed in the swviel head
wheel: White Polypropylene wheel with plain bore
Applicable Terrain
Tile Floor
Resin Cement Floor
