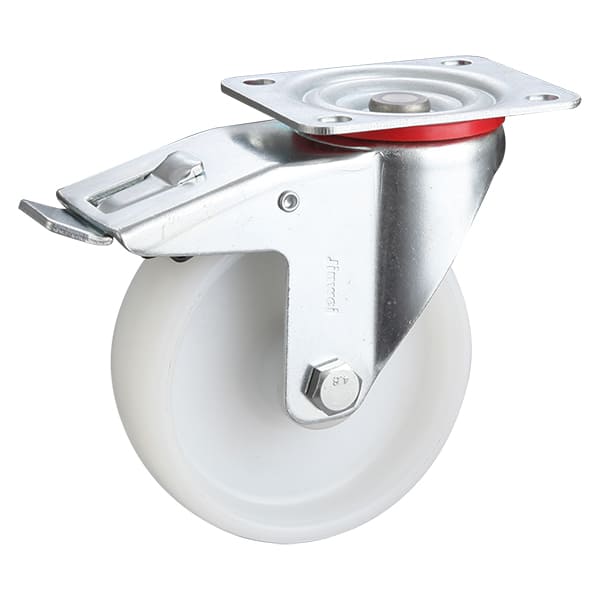

Total Brake White Polypropylene Industrial Castors

Stainless Steel Castors

You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.

Total Brake White Polypropylene Industrial Castors

You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.

Castor Specifications

Slide to the right to view all castor specifications

Castor
Number

Wheel Diameter

( mm )


Tread of Width

( mm )


Size of Plate

( mm )


Plate Hole Center

( mm )


Plate Hole

( mm )


Offset

( mm )


Swivel Radius

( mm )


Overall Height

( mm )


Load Capacity

( kg )

07P1RB80B34BPPPX8034105x8080x6011X936128100100
07P1RB100B36BPPPX10036105x8080x6011X940130125150
07P1RB/S100B36BPPPX10036105x8080x6011X940130128150
07P1RB125B40BPPPX12540105x8080x6011X940133155200
07P1RB160B40BPPPX16040135x110105x8013.5x1160203.5190300
07P1RB200B46BPPPX20046135x110105x8013.5x1160203.5235350

Castor Information

Wheel Tread Material

Polyopylene

Wheel Centre Material

Polypropylene

Castor Housing

Total Brake

Mounting Type

Top Plate

Castor Bearing

Plain bore

Temperature Range

-20 to +60°C

Hardness of Tread

85°+3 Shore A

Threadguard

None

Color

White

Description

Housing: pressed steel swivel fork , zinc-plated, double ball race ,sealed in the swviel head

wheel: White Polypropylene wheel with plain bore


Applicable Terrain

Tile Floor

Tile Floor

Resin Cement Floor

Resin Cement Floor
