Castor Specifications
Slide to the right to view all castor specifications
| Castor Number |  Wheel Diameter ( mm ) |  Tread of Width ( mm ) |  Size of Plate ( mm ) |  Plate Hole Center ( mm ) |  Plate Hole ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg ) |
|---|---|---|---|---|---|---|---|
| 07P1F80C30JBMRX | 80 | 30 | 102x87 | 80x60 | 11X9 | 100 | 50 |
| 07P1F100C30JBMRX | 100 | 30 | 102x87 | 80x60 | 11X9 | 125 | 70 |
| 07P1F/S100C30JBMRX | 100 | 30 | 102x87 | 80x60 | 11X9 | 128 | 70 |
| 07P1F125C37.5JBMRX | 125 | 37.5 | 102x87 | 80x60 | 11X9 | 155 | 100 |
| 07P1F160C40JBMRX | 160 | 40 | 135x114 | 105x80 | 13.5X11 | 190 | 140 |
| 07P1F200C50JBMRX | 200 | 50 | 135x114 | 105x80 | 13.5X11 | 235 | 205 |
Castor Information
Wheel Tread Material
Solid rubber
Wheel Centre Material
Pressed steel
Castor Housing
Fixed
Mounting Type
Top Plate
Castor Bearing
Roller bearing
Temperature Range
-20 to +60°C
Hardness of Tread
85°+3 Shore A
Threadguard
None
Color
Black

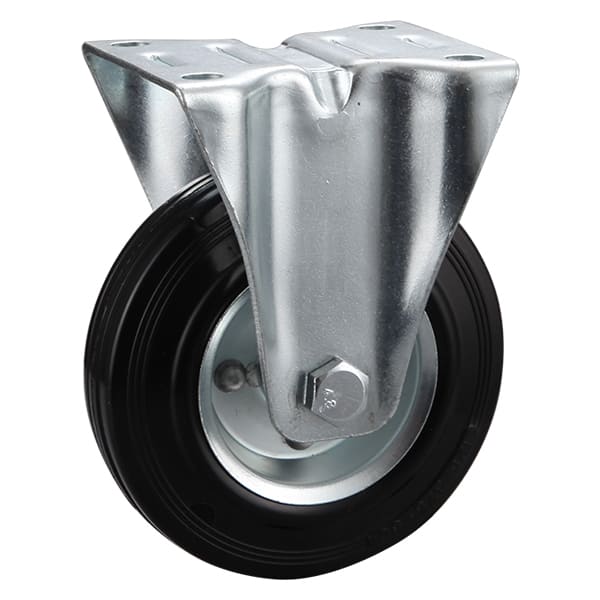

Description
Housing: pressed steel Fixed fork , zinc-plated,
wheel: Pressed steel wheel centre with roller bearing,
Black Solid Rubeer Tyre
Applicable Terrain
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
