Castor Specifications
Slide to the right to view all castor specifications
| Castor Number |  Bearing Type |   Wheel Diameter & Width of Tread ( mm ) |  Size of Plate ( mm ) |  Plate Hole Center ( mm ) |  Plate Hole ( mm ) |  Offset ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg 4km/h ) |
|---|---|---|---|---|---|---|---|---|
| 06P1RB100D34BUPBA |  | 100x34 | 135x110 | 105x80 | 13.5x11 | 45 | 128 | 160 |
| 06P1RB125D36BUPRX |  | 125x36 | 135x110 | 105x80 | 13.5x11 | 48 | 155 | 250 |
| 06P1RB125D36BUPBA | |
Castor Information
Wheel Tread Material
Polyurethane
Wheel Centre Material
Polyamide
Castor Housing
Total Brake
Mounting Type
Top Plate
Castor Bearing
Single ball bearing
Temperature Range
-40 to +80°C
Hardness of Tread
92°+3 Shore A
Threadguard
Small plastic
Color
Grey
Description

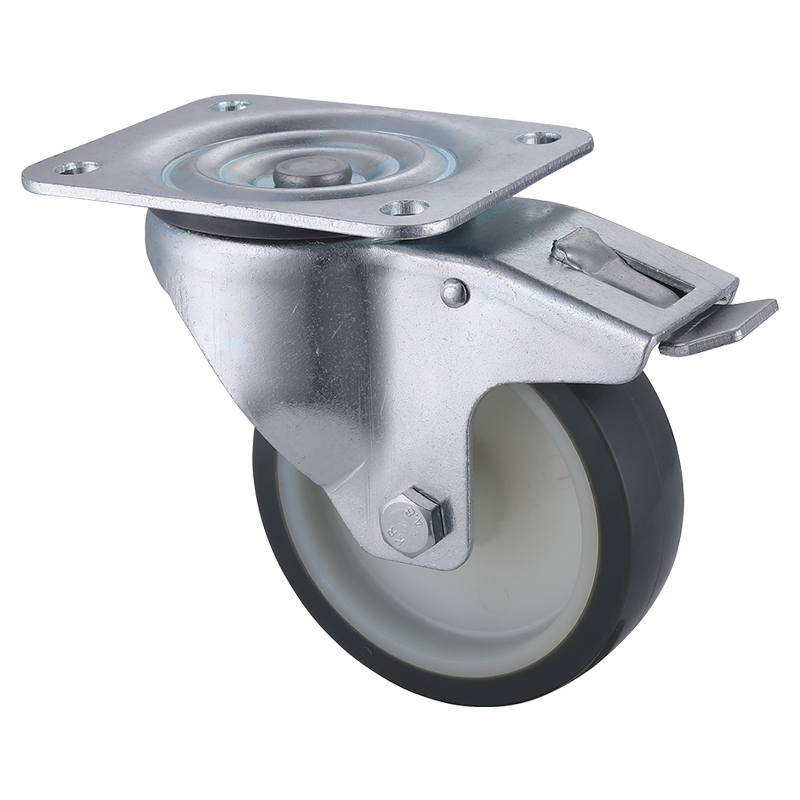

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated freely in 360 degrees, Shore A 92+3, grey thermoplastic polyurethane wheel tread, white nylon wheel centre, diameter 100mm to 125mm, load capacity 160kg to 250kg, These castors are made by Taishan to provide you with the highest quality and reliability. We are also proud to offer a variety of other industrial castor solutions, so if you need help or can't find what you need, please contact us.
Applicable Terrain
Tile Floor
Resin Cement Floor
