Castor Specifications
Slide to the right to view all castor specifications
| Castor Number |  Bearing Type |   Wheel Diameter & Width of Tread ( mm ) |  Size of Plate ( mm ) |  Plate Hole Center ( mm ) |  Plate Hole ( mm ) |  Offset ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg 4km/h ) |
|---|---|---|---|---|---|---|---|---|
| 07P1RB80B34BPABA |  | 80x34 | 105x80 | 80x60 | 11x9 | 36 | 100 | 150 |
| 07P1RB100B36BPABA | | 100x36 | 105x80 | 80x60 | 11x9 | 36 | 125 | 180 |
| 07P1RB125B40BPABA | | 125x40 | 105x80 | 80x60 | 11x9 | 40 | 155 | 200 |
Castor Information
Wheel Tread Material
Nylon
Wheel Centre Material
Polyamide
Castor Housing
Total Brake
Mounting Type
Top Plate
Castor Bearing
Single ball bearing
Temperature Range
-20 to +80°C
Hardness of Tread
no
Threadguard
Small plastic
Color
White
Description

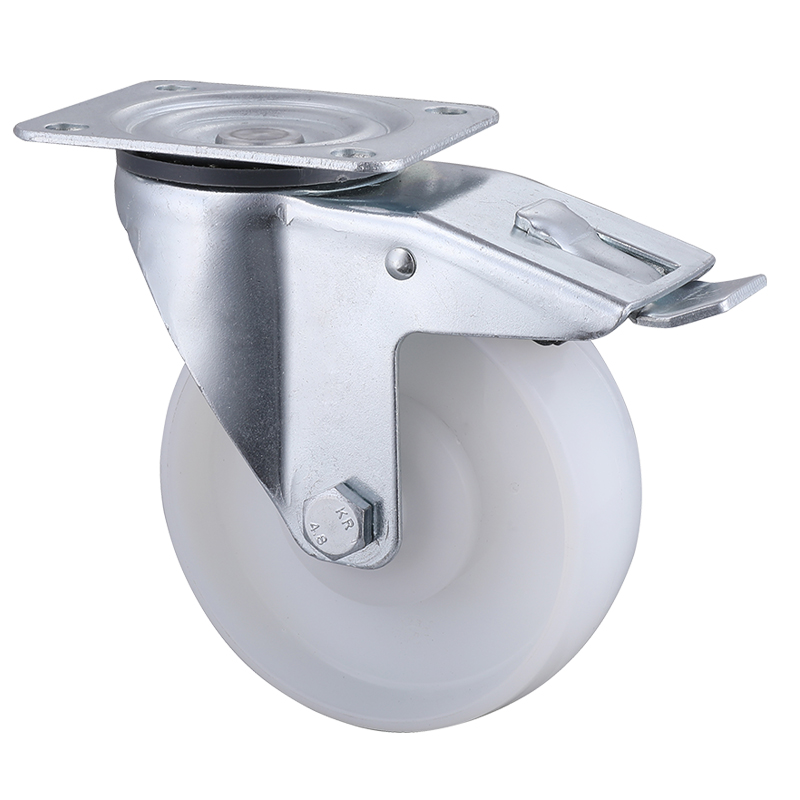

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, can be rotated freely in 360 degrees, white nylon wheel, diameter 80mm to 125mm, load capacity 150kg to 200kg, applications: industrial trolleys, factory material handling, waste containers, transport containers, medium-sized rolling containers, tool carts, warehouse trolleys.
Applicable Terrain
Tile Floor
Resin Cement Floor
