Castor Specifications
Slide to the right to view all castor specifications
| Castor Number |  Bearing Type |   Wheel Diameter & Width of Tread ( mm ) |  Size of Plate ( mm ) |  Plate Hole Center ( mm ) |  Plate Hole ( mm ) |  Offset ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg 4km/h ) |
|---|---|---|---|---|---|---|---|---|
| 09P1RB100B38BPHDX |  | 100x38 | 105x80 | 80x60 | 11x9 | 40 | 132 | 350 |
| 09P1RB125B38BPHDX | | 125x38 | 105x80 | 80x60 | 11x9 | 40 | 155 | 350 |
| 09P1RB150B50BPHDX | | 150x50 | 135x110 | 105x80 | 13.5x11 | 60 | 195 | 500 |
| 09P1RB160B50BPHDX | | 160x50 | 135x110 | 105x80 | 13.5x11 | 60 | 200 | 500 |
| 09P1RB200B50BPHDX | | 200x50 | 135x110 | 105x80 | 13.5x11 | 60 | 245 | 500 |
Castor Information
Wheel Tread Material
Nylon
Wheel Centre Material
Polyamide
Castor Housing
Total Brake
Mounting Type
Top Plate
Castor Bearing
Double ball bearings
Temperature Range
-20 to +80°C
Hardness of Tread
no
Threadguard
None
Color
White
Description

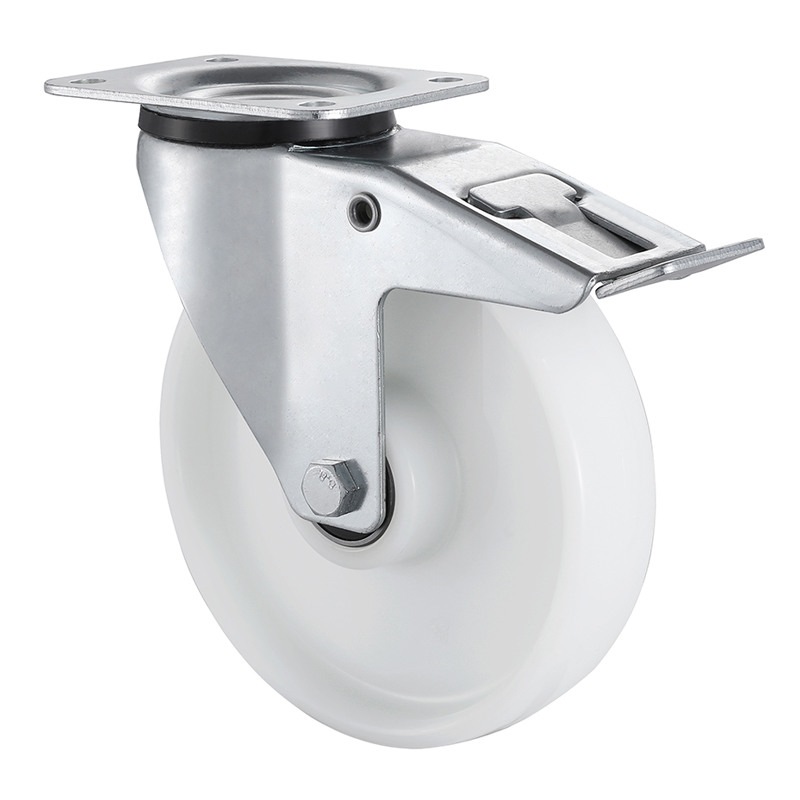

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, can be rotated freely in 360 degrees, white nylon wheel, diameter 100mm to 200mm, load capacity 350kg to 500kg, these industrial castors are durable and designed for use in the most demanding environments.
Applicable Terrain
Tile Floor
Resin Cement Floor
