Castor Specifications
Slide to the right to view all castor specifications
| Castor Number |  Bearing Type |   Wheel Diameter & Width of Tread ( mm ) |  Size of Plate ( mm ) |  Plate Hole Center ( mm ) |  Plate Hole ( mm ) |  Offset ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg 4km/h ) |
|---|---|---|---|---|---|---|---|---|
| 06P1RB100D40DUMRX |  | 100x40 | 135x110 | 105x80 | 13.5x11 | 42 | 128 | 300 |
| 06P1RB125D40DUMRX | | 125x40 | 135x110 | 105x80 | 13.5x11 | 48 | 155 | 350 |
Castor Information
Wheel Tread Material
Polyurethane
Wheel Centre Material
Polyamide
Castor Housing
Total Brake
Mounting Type
Top Plate
Castor Bearing
Roller bearing
Temperature Range
-20 to +60°C
Hardness of Tread
92°+3 Shore A
Threadguard
None
Color
Grey
Description

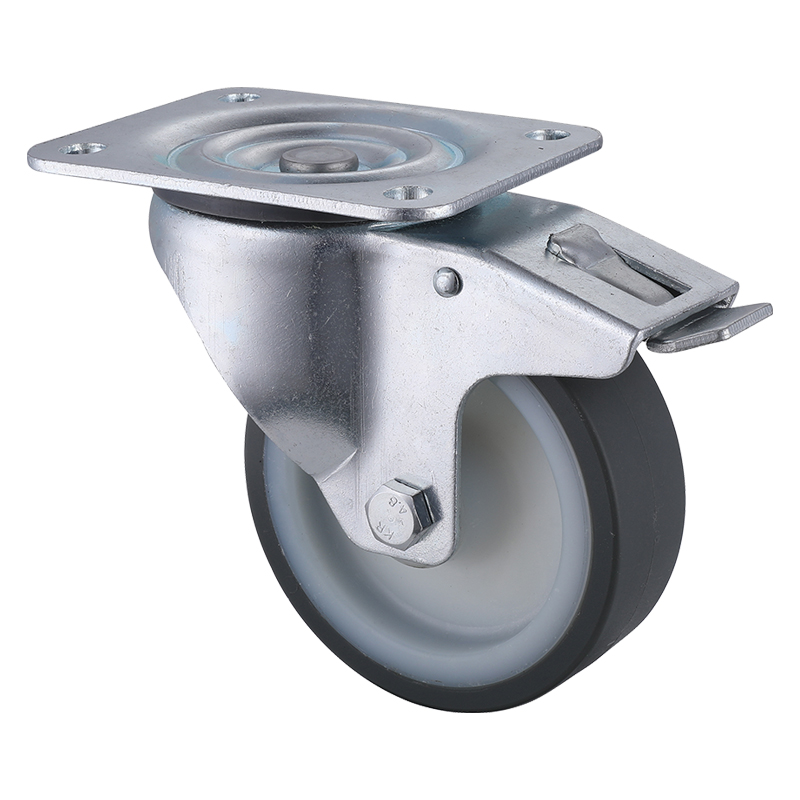

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated in parallel at any angle, Shore A 92+3, grey thermoplastic polyurethane wheel tread, white nylon wheel centre, diameter 100mm and 125mm, load capacity 300kg to 350kg, These industrial castors are durable and designed for use in the most demanding environments.
Applicable Terrain
Tile Floor
Resin Cement Floor
