Industry Leading Industrial Polyurethane Total Brake Castors Factory

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Offset ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
09P1RB80E32JUIDX	80x32	105x80	80x60	11x9	40	108	250
09P1RB100E32JUIDX	100x32	105x80	80x60	11x9	40	132	350
09P1RB125E38JUIDX	125x38	105x80	80x60	11x9	40	155	350
09P1RB150E50JUIDX	150x50	135x110	105x80	13.5x11	60	195	500
09P1RB160E50JUIDX	160x50	135x110	105x80	13.5x11	60	200	500
09P1RB200E50JUIDX	200x50	135x110	105x80	13.5x11	60	245	500

Castor Information

Wheel Tread Material

Polyurethane

Wheel Centre Material

Iron

Castor Housing

Total Brake

Mounting Type

Top Plate

Castor Bearing

Double ball bearings

Temperature Range

-20 to +60°C

Hardness of Tread

94° Shore A

Threadguard

None

Color

Yellow

Description

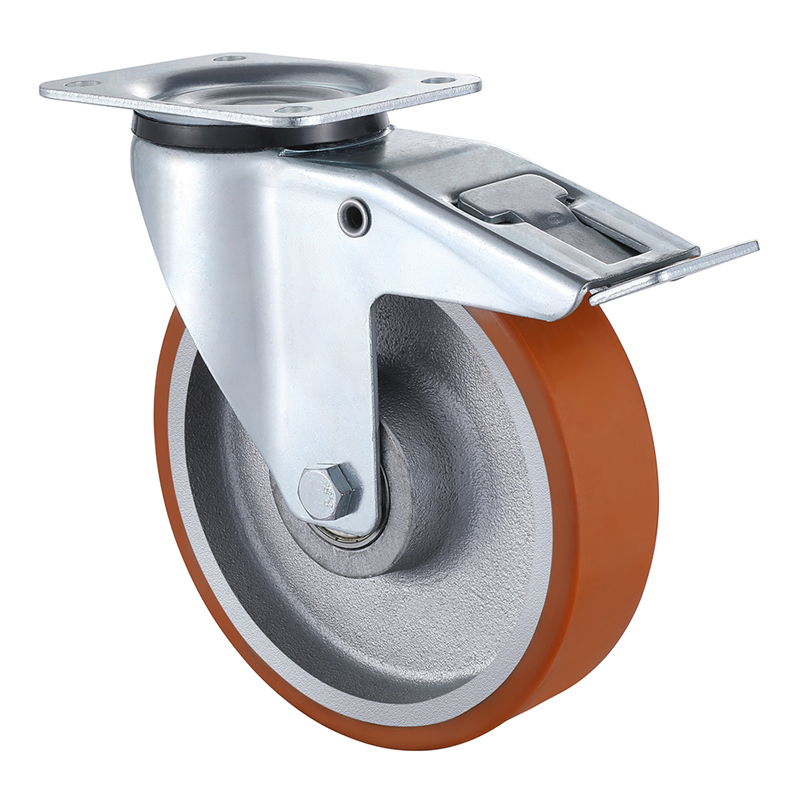

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated 360 degrees in parallel, with braking device, Shore A 94, yellow polyurethane wheel tread, casting iron wheel centre, diameter 80mm to 200mm, load capacity 250kg to 500kg, These castors are from the leading castor manufacturers in the industry, factory direct sales, no middleman, can get these castors at the best price, don't hesitate to contact our sales manager immediately.

Applicable Terrain
