Industrial Grey Thermoplastic Rubber Castors Total Brake Supplier

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Offset ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
07P1RB100D32DTRBA	100x32	105x80	80x60	11x9	40	125	100
07P1RB100D32DTRRX	100x32	105x80	80x60	11x9	40	125	100
07P1RB125D32DTRBA	125x32	105x80	80x60	11x9	40	155	150
07P1RB125D32DTRRX	125x32	105x80	80x60	11x9	40	155	150
07P1RB160D40DTRBA	160x40	135x110	105x80	13.5x11	60	190	200
07P1RB160D40DTRRX	160x40	135x110	105x80	13.5x11	60	190	200
07P1RB200D40DTRBA	200x40	135x110	105x80	13.5x11	60	235	250
07P1RB200D40DTRRX	200x40	135x110	105x80	13.5x11	60	235	250

Castor Information

Wheel Tread Material

Thermoplastic rubber

Wheel Centre Material

Polypropylene

Castor Housing

Total Brake

Mounting Type

Top Plate

Castor Bearing

Single ball bearing

Temperature Range

-20 to +60°C

Hardness of Tread

85° Shore A

Threadguard

Small plastic

Color

Grey

Description

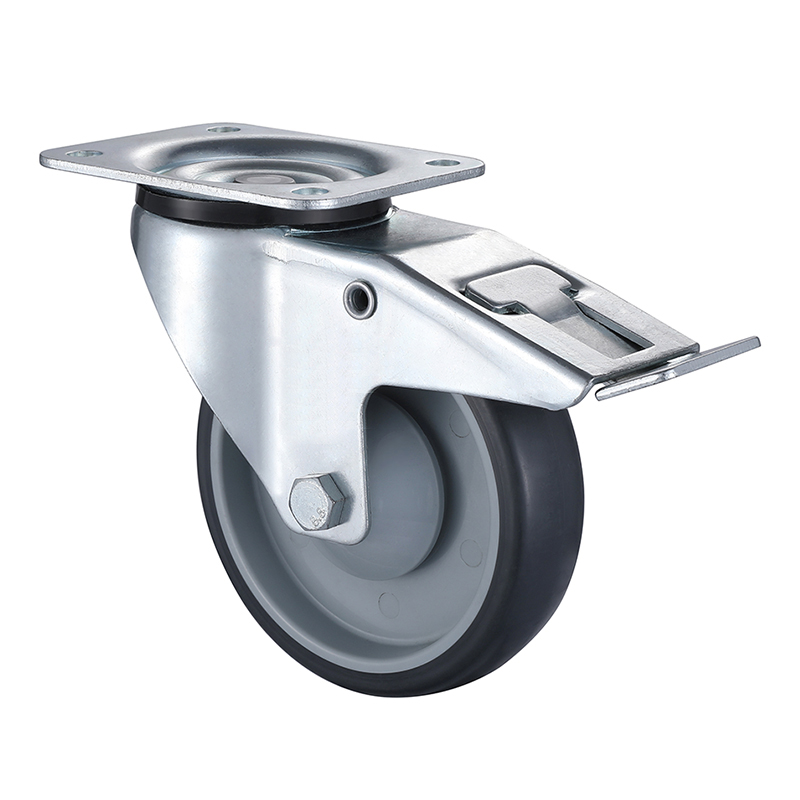

Pressed steel swivel fork , zinc-plated double ball race , sealed in the swviel head, gery polypropylene wheel centre, Shore A 85, gery thermoplastic rubber tread, rollen bearing and single ball bearing, Every user and application has different needs. Let us know how we can help you to become a satisfied customer.
