Castor Specifications
Slide to the right to view all castor specifications
Castor Number | Bearing Type | Wheel Diameter & Width of Tread ( mm ) | Size of Plate ( mm ) | Plate Hole Center ( mm ) | Plate Hole ( mm ) | Offset ( mm ) | Overall Height ( mm ) | Load Capacity ( kg 4km/h ) |
---|---|---|---|---|---|---|---|---|
07P1RB80D32DTEBA | 80x32 | 105x80 | 80x60 | 11x9 | 36 | 100 | 90 | |
07P1RB80D32DTERX | ||||||||
07P1RB100D32DTEBA | 100x32 | 105x80 | 80x60 | 11x9 | 40 | 125 | 100 | |
07P1RB100D32DTERX | ||||||||
07P1RB125D32DTEBA | 125x40 | 105x80 | 80x60 | 11x9 | 40 | 155 | 150 | |
07P1RB125D32DTERX |
Castor Information
Wheel Tread Material
Thermoplastic rubber
Wheel Centre Material
Polypropylene
Castor Housing
Total Brake
Mounting Type
Top Plate
Castor Bearing
Single ball bearing
Temperature Range
-20 to +60°C
Hardness of Tread
65° Shore A
Threadguard
Small plastic
Color
Grey
Description

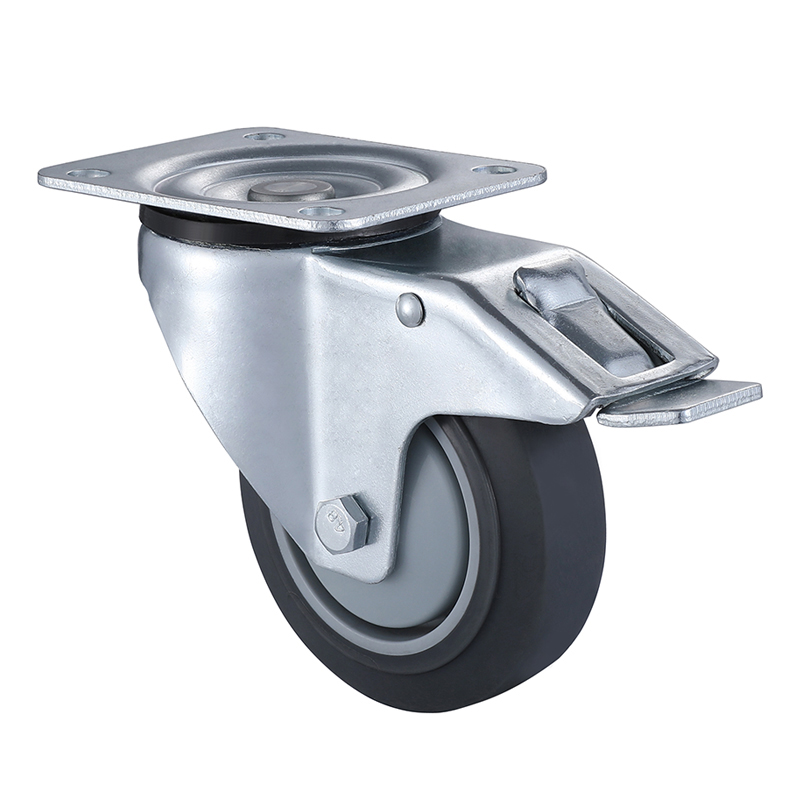

Pressed steel swivel fork , zinc-plated double ball race , sealed in the swviel head, gery polypropylene wheel centre, Shore A 65, gery thermoplastic rubber tread, roller bearing and single ball bearing,Benefits: Versatile use with excellent rolling characteristics. Low noise and vibration damping, non-marking.
Applicable Terrain
Tile Floor
Resin Cement Floor
