Hight Quality Industrial Yellow Polyurethane Total Brake Castors Taishan Factory

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Bearing Type	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Offset ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
07P1RB100E38JUADX		100x38	105x80	80x60	11x9	40	125	180
07P1RB125E38JUADX		125x38	105x80	80x60	11x9	40	155	200

Castor
Number

Bearing Type

Wheel Diameter & Width of Tread

( mm )

Size of Plate

( mm )

Plate Hole Center

( mm )

Plate Hole

( mm )

Offset

( mm )

Overall Height

( mm )

Load Capacity

( kg 4km/h )

07P1RB100E38JUADX

100x38

105x80

80x60

11x9

125

180

07P1RB125E38JUADX

125x38

105x80

80x60

11x9

155

200

Castor Information

Wheel Tread Material

Polyurethane

Wheel Centre Material

Aluminium

Castor Housing

Total Brake

Mounting Type

Top Plate

Castor Bearing

Double ball bearings

Temperature Range

-20 to +60°C

Hardness of Tread

94° Shore A

Threadguard

None

Color

Yellow

Description

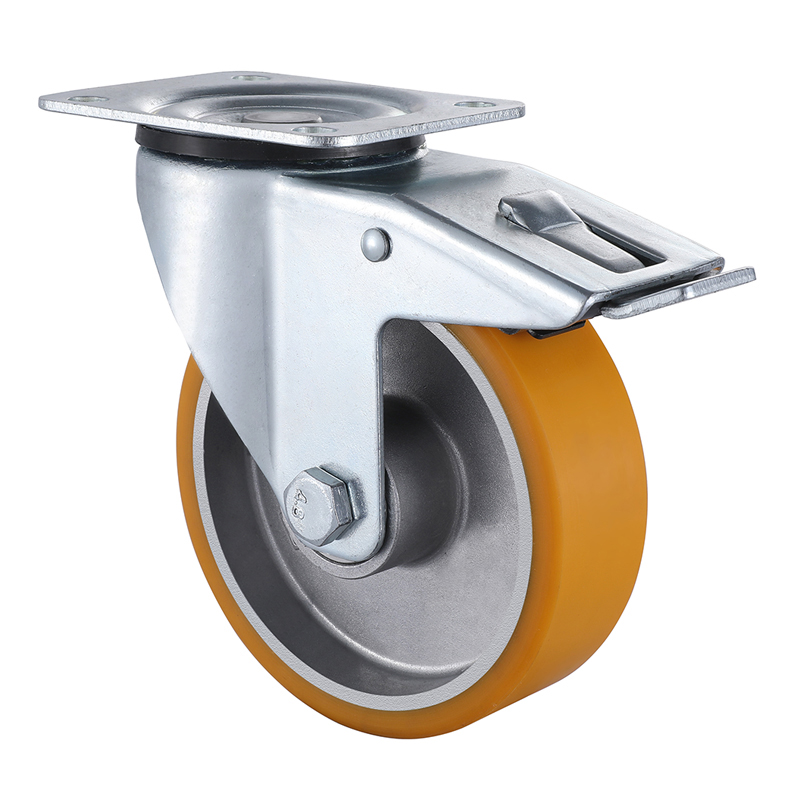

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated freely in 360 degrees, Shore A 94, yellow polyurethane wheel tread, casting Aluminium wheel centre, diameter 100mm and 125mm, load capacity 180kg to 200kg, Applications: industrial trolleys, factory material handling, waste containers, transport containers, medium-sized rolling containers, tool carts, warehouse trolleys.

Applicable Terrain
