Wheel Tread
Polyurethane
Temperature
-20 to +60°C
Standard
EN 12532
Hardness of Tread
85° Shore A
Castor Description

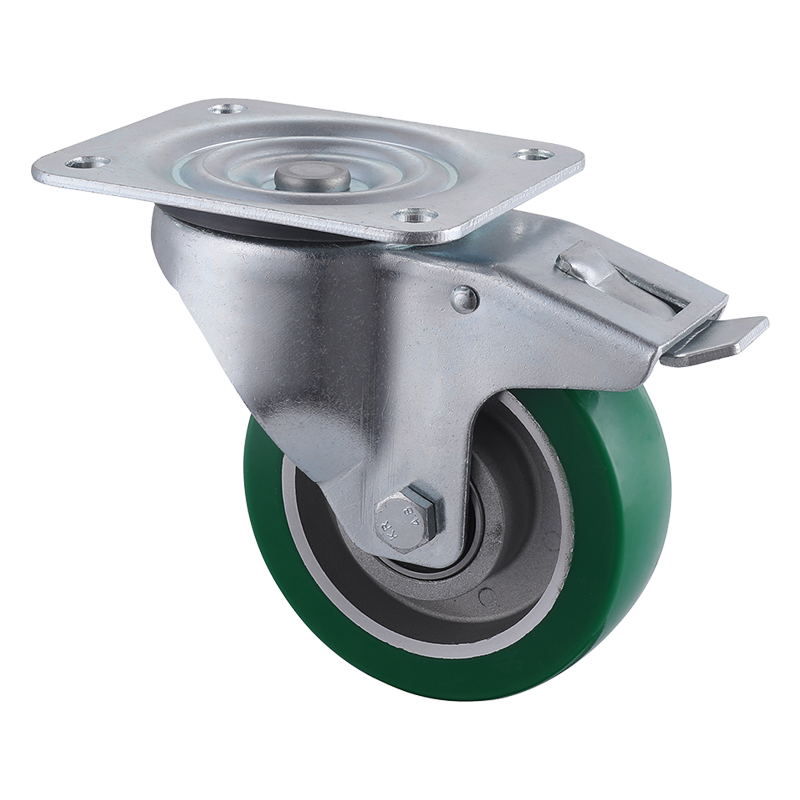

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated 360 degrees in parallel, with braking device, Shore A 92+3, green elastic polyurethane wheel tread, casting aluminium wheel centre, diameter 100mm and 125mm, load capacity 250kg to 300kg. These industrial castors are durable and designed for use in the most demanding environments.
You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.
Swipe right to see the full table
Castor Number | ![]() Bearing Type | ![]() ![]() Wheel Diameter & Width of Tread ( mm ) | ![]() Size of Plate ( mm ) | ![]() Plate Hole Center ( mm ) | ![]() Plate Hole ( mm ) | ![]() Offset ( mm ) | ![]() Overall Height ( mm ) | ![]() Load Capacity ( kg 4km/h ) |
---|---|---|---|---|---|---|---|---|
06P1RB100H40JUHDX | ![]() | 100x40 | 135x110 | 105x80 | 13.5x11 | 42 | 128 | 250 |
06P1RB125H40JUHDX | ![]() | 125x40 | 135x110 | 105x80 | 13.5x11 | 48 | 155 | 300 |
Tile Floor
Resin Cement Floor
