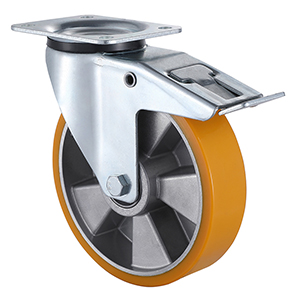

Hight Quality Industrial Yellow Polyurethane Swivel Castors with total brake Taishan Manufacturer

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Offset ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
09P1RB80E38JUHDX	80x38	105x80	80x60	11x9	40	108	250
09P1RB100E38JUADX	100x38	105x80	80x60	11x9	40	132	300
09P1RB125E38JUADX	125x38	105x80	80x60	11x9	40	155	350
09P1RB150E50JUADX	150x50	135x110	105x80	13.5x11	60	195	500
09P1RB160E50JUADX	160x50	135x110	105x80	13.5x11	60	200	500
09P1RB200E50JUADX	200x50	135x110	105x80	13.5x11	60	245	500

Castor Information

Wheel Tread Material

Polyurethane

Wheel Centre Material

Aluminium

Castor Housing

Total Brake

Mounting Type

Top Plate

Castor Bearing

Double ball bearings

Temperature Range

-20 to +80°C

Hardness of Tread

94° Shore A

Threadguard

None

Color

Yellow

Description

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated 360 degrees in parallel, with braking device, Shore A 94, yellow polyurethane wheel tread, aluminium wheel centre, diameter 80mm to 200mm, load capacity 250kg to 500kg, These castors are made by Taishan to provide you with the highest quality and reliability. We are also proud to offer a variety of other industrial castor solutions, so if you need help or can't find what you need, please contact us.

Applicable Terrain
