Castor Specifications
Slide to the right to view all castor specifications
| Castor Number |  Bearing Type |   Wheel Diameter & Width of Tread ( mm ) |  Size of Plate ( mm ) |  Plate Hole Center ( mm ) |  Plate Hole ( mm ) |  Offset ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg 4km/h ) |
|---|---|---|---|---|---|---|---|---|
| 07P1RB80A36CEPBA |  | 80x36 | 105x80 | 80x60 | 11x9 | 36 | 100 | 100 |
| 07P1RB100A36CEPBA | | 100x36 | 105x80 | 80x60 | 11x9 | 40 | 125 | 150 |
| 07P1RB125A38CEPBA | | 125x38 | 105x80 | 80x60 | 11x9 | 40 | 155 | 210 |
Castor Information
Wheel Tread Material
Elastic rubber
Wheel Centre Material
Polyamide
Castor Housing
Total Brake
Mounting Type
Top Plate
Castor Bearing
Single ball bearing
Temperature Range
-20 to +80°C
Hardness of Tread
68°+5 Shore A
Threadguard
Small plastic
Color
Blue
Description

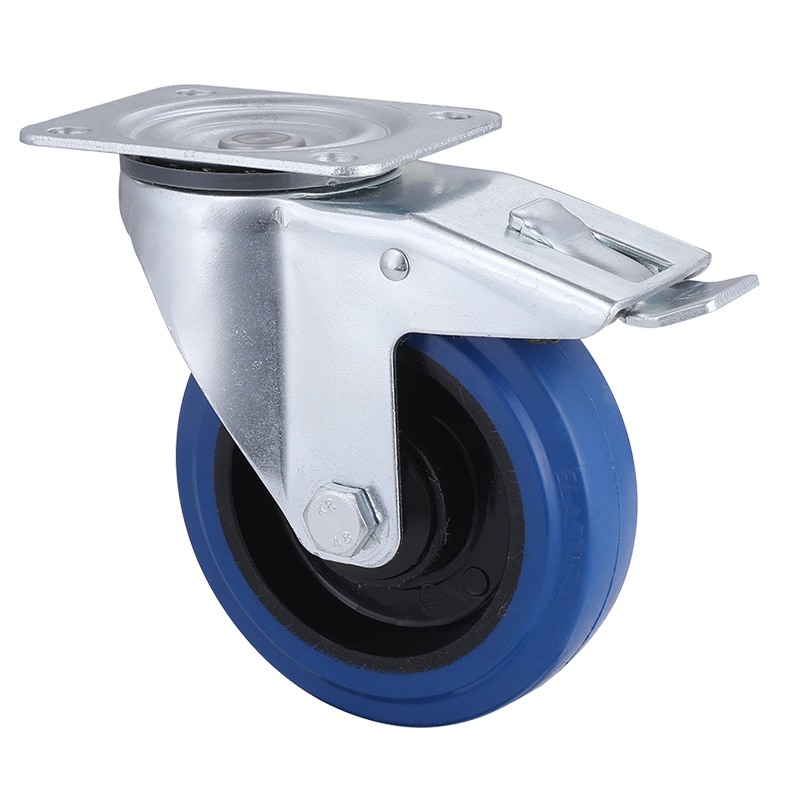

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated freely in 360 degrees, Shore A 68+5, blue elastic rubber wheel tread, black nylon wheel centre, single ball bearing, diameter 80mm to 125mm, load capacity 100kg to 210kg, Benefits: Versatile use with excellent rolling characteristics. Low noise and vibration damping, non-marking.
Applicable Terrain
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
