Castor Specifications
Slide to the right to view all castor specifications
| Castor Number |  Bearing Type |   Wheel Diameter & Width of Tread ( mm ) |  Size of Plate ( mm ) |  Plate Hole Center ( mm ) |  Plate Hole ( mm ) |  Offset ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg 4km/h ) |
|---|---|---|---|---|---|---|---|---|
| 07P1RB125C37.5JEHRX |  | 125x37.5 | 105x80 | 80x60 | 11x9 | 40 | 155 | 120 |
| 07P1RB160C40JEHRX | | 160x40 | 135x110 | 105x80 | 13.5x11 | 60 | 190 | 225 |
| 07P1RB200C50JEHRX | | 200x50 | 135x110 | 105x80 | 13.5x11 | 60 | 235 | 350 |
Castor Information
Wheel Tread Material
Elastic rubber
Wheel Centre Material
Pressed steel
Castor Housing
Total Brake
Mounting Type
Top Plate
Castor Bearing
Roller bearing
Temperature Range
-20 to +80°C
Hardness of Tread
55°+5 Shore A
Threadguard
None
Color
Black
Description

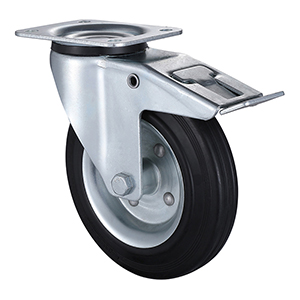

Pressed steel swivel fork, zinc-plated double ball race, sealed in the swviel head, Can be rotated freely in 360 degrees, Shore A 55, black Super elastic rubber wheel tread, pressed steel wheel centre, roller bearings, diameter 125mm to 200mm, load capacity 120kg to 350kg, Every user and application has different needs. Let us know how we can help you to become a satisfied customer.
Applicable Terrain
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
